Dune HD Smart D1 Media Player inc Optical Drive
End of Life

Dune HD Smart D1 Media Player inc Optical Drive

Images

Thumbnail 1 : Dune HD Smart D1 Media Player inc Optical DriveThumbnail 2 : Dune HD Smart D1 Media Player inc Optical DriveThumbnail 3 : Dune HD Smart D1 Media Player inc Optical DriveThumbnail 4 : Dune HD Smart D1 Media Player inc Optical Drive

Dune HD Smart D1 inc Optical Drive Bay Sigma 8642/8643 Network 1080p MKV Streamer - NAS, BitTorrent, IPTV Functions

Scan Code: LN40692

Manufacturer Code: Dune HD Smart D1

Customer Reviews and Q&A

Social Media

Product Overview

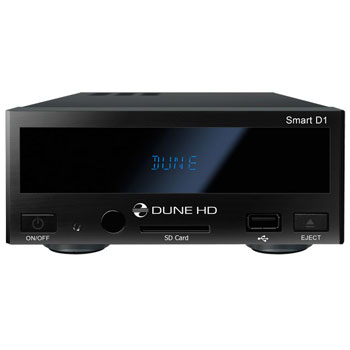

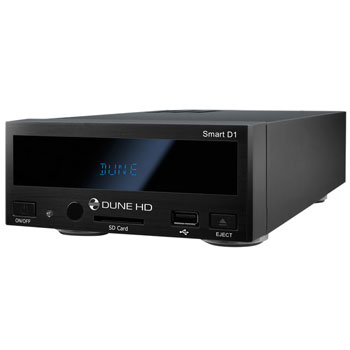

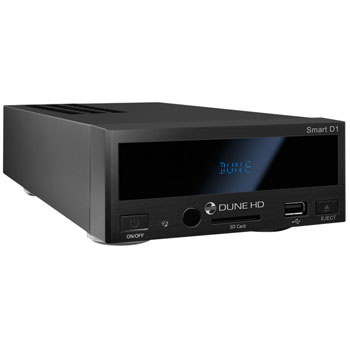

Dune HD Smart D1 is an all-in-one solution for up to Full HD (1080p) video playback.

• The Sigma Designs 8642/8643 media processor: enjoy excellent playback and performance of interactive features.
• HDD player: connect an HDD to the player and play content directly from the HDD.
• Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS).
• MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top quality HD video with very high bitrate.
• RealD: watch 3D video in this ultra modern format used in cinema for the latest movies.
• HD audio: enjoy top-quality audio tracks (Dolby True HD, DTS HD Master Audio, LPCM, FLAC).
• 3 USB ports: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices.
• eSATA port: connect an HDD via the most efficient eSATA interface.
• Internal HDD option: use an optional 3.5" SATA HDD installed directly inside the player.
• USB slave port: easily and quickly transfer files between the HDD in the player (when installed) and a PC.
• SD card slot: easily play media files on SD memory cards from your camera or other devices, or use an SD memory card as a local or system storage (required for BD Live function).
• HDMI 1.3: ensure the best possible quality of HD video and HD audio.

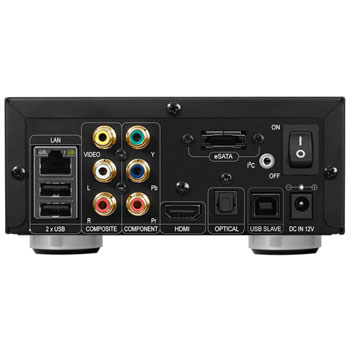

• A rich set of standard A/V connectors: use S/PDIF optical audio, stereo audio, component video, composite video outputs to easily connect any A/V equipment.
• Flexible support for Dolby True HD and DTS HD Master Audio: output as bitstream or decode to LPCM for flexibility when connecting audio equipment.
• Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).
• Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution.
• File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).
• The best basis for multi-component Dune HD Smart system: built-in VFD display helps to build the most feature-rich solution.

Extra Functions

• High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey's Audio APE, WAV/PCM, DTS, etc).
• Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions.
• NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP).
• BitTorrent: use built-in BitTorrent client to download files from P2P networks.
• Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics).
• Flash applications: extend the player functionality with FlashLite applications.
• Internet radio: playback and record various Internet radio stations (HTTP/MP3).
• IPTV: playback and record IPTV streams (multicast UDP/RTP) from your Internet provider (check availability of multicast UDP/RTP streams with your Internet provider).
• Digital TV option: playback and record Digital TV channels using an optional Digital TV USB dongle (Digital TV USB dongle is not included; this option can be purchased separately).
• Internet browsing: view Internet Web sites on your TV using the built-in Web browser (built-in Web browser has limitations and may not allow to view some Internet Web sites).


Specification

• Processor: Sigma Designs 8642/8643
• RAM: 512 MB
• Flash memory: 128 MB, expandable with a HDD partition, USB flash drive, or SD card (2GB recommended)
• Media sources: internal HDD (SATA 3.5”), external HDD (USB, eSATA), external optical drive (USB, eSATA), USB devices (USB flash drive, USB card reader, etc), built-in SD card reader (SD/SDHC), PC and NAS in local network (SMB, NFS, UPnP, HTTP), other Internet and local network media sources (HTTP, multicast UDP/RTP)
• Video codecs: MPEG2, MPEG4, XVID, WMV9, VC1, H.264; support for very high bitrate video (up to 50 MBit/s and higher)
• Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, Blu-ray-ISO, BDMV, DVD-ISO, VIDEO_TS
• Optical disc formats: data discs (CD/DVD/BD) (MP3, JPEG, etc), Audio CD (PCM/DTS), DVD-Video (retail and user-authored discs), Blu-ray (retail and user-authored discs) *
• Blu-ray playback: Blu-ray menu, BD-J, BonusView, BD-Live – for both Blu-ray discs (retail and user-authored) (*) and full Blu-ray structures (Blu-ray-ISO, BDMV) played from HDD and network
• Video output modes: wide range of supported output resolutions (up to 1080p) and framerates (including 23.976p, 24p, PAL, NTSC)
• Video output framerate: automatic (according to the played content) and manual
• Audio codecs: AC3 (Dolby Digital), DTS, MPEG, AAC, LPCM, WMA, WMAPro, EAC3 (Dolby Digital Plus), Dolby True HD, DTS HD High Resolution Audio, DTS HD Master Audio, FLAC, multichannel FLAC, Ogg/Vorbis; support for very high quality audio (up to 192 kHz / 24-bit)
• Audio file formats: MP3, MPA, M4A, WMA, FLAC, APE (Monkey’s Audio), Ogg/Vorbis, WAV, DTS-WAV, DTS, AC3, AAC
• HD audio support: pass-through and decoding (stereo downmix) of Dolby TrueHD and DTS HD MA audiotracks (Blu-ray), pass-through of multichannel LPCM audiotracks (Blu-ray, TS, MKV), decoding of FLAC audiotracks (MKV, external)
• Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (Blu-ray, TS, MKV)
• Picture file formats: JPEG, PNG, BMP, GIF
• Playlist file formats: M3U, PLS
• Photo viewer functions: slideshow, transition effects, picture rotation, zoom, browse playlist, repeat, shuffle
• Audio playback functions: browse playlist, repeat, shuffle, ID3 tags, plasma TV burn-in prevention
• Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3 (read-write), NTFS (read-write)
• Ethernet: 10/100 Mbit
• WiFi: optional 802.11n WiFi (via an external USB WiFi stick, not included, Dune HD Air recommended)
• Dune Network Playback Accelerator: special optimizations ensuring best-in-class network playback performance for the Sigma Designs 864x platform and enabling smooth playback of any supported kind of media content via any network protocol (including NFS and SMB) even in 100 Mbit/s Ethernet networks.



Features

Modular System of Player Configuration

Dune HD Smart players allow to create custom configurations based on the primary (head) unit like Dune HD Smart B1/H1/D1 and several optional extension modules of choice, which can be combined to form an integrated player.

The Dune HD Smart player itself is a head unit which can be extended at user's desire with extension modules, such as the following:
Dune HD Smart HE (Scan LN40691) (adds the option for easy installation of SATA 3.5" HDD with hot swap feature).
Dune HD Smart ME (Scan LN40695) (adds the option for installing different additional modules, in particular, for reception of satellite, cable or digital terrestrial TV).
Dune HD Smart BE (Scan LN40693) (adds the option for Blu-ray/DVD/CD playback) (including commercial Blu-ray/DVD discs).

Extension modules can work exclusively with the head unit (Dune HD Smart player) and use a common control system, implemented via the head unit. The number of connected modules may vary in a wide range: the user can compile his/her own Dune HD Smart system of e.g. two, three and even six components.

In order to group SMART devices by 2 or 3 horizontally, special mounts can be used. For example, a group of 3 modules, including the head unit, combined this way, will comprise a new player of a standard size like the model Dune HD Max.

Besides, grouping the required number of modules allows to supersede the functionality of Dune HD Max, providing more flexibility at the same time. In particular, the modular approach provides the possibility to group modules in any order at any time depending on user's demands, as well as replacing (upgrading) particular modules instead of replacing the entire set of equipment.

Technical Specification

Manufacturer:HDI DuneMedia Recorder:No
TV Type:Media Center Compatible:No
Interface:LAN (10/100) Teletext:No
Connectivity:1 x Card Reader
1 x Component
1 x Composite Video (Out)
1 x eSATA
1 x HDMI
1 x S/PDIF Out (Optical)
1 x USB
3 x USB 2.0
Radio:Yes
Supported TV Standards:Dual Tuner Compatible:No
HDTV Compatible:YesPackage Type:Retail
Remote Control:Yes

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Return to base

DOA Period: 14 days

Manufacturer Contact Details

Manufacturer: Scan/HD Dune

Telephone: 0871-472-4747

Additional Notes:
"Please be aware any warranty offered in excess of 12 months is at the manufacturer's discretion and maybe subject to change without notice."

We recommend that you retain your retail packaging within the first 28 days of purchase.

Subject to 2 years manufacturer's warranty, direct with Scan who will then send all faulty units to Dune-HD Germany for repair unless DOA status.

If the product has been modified by adding some/any external software modules. Or the customer attempts any effort to modify, decompile the firmware or any of reverse engineering was done, the warranty will be declined/void by Dune-HD!


This Warranty does not cover any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, serial number altered, defaced or removed; or has had the warranty seal on the system altered, defaced or removed, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.
