Corsair Carbide Air 540 Cube Case - CC-9011030-WW
Delivery
DPD £11.50 Delivered by DPD Wed 05 Aug. Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

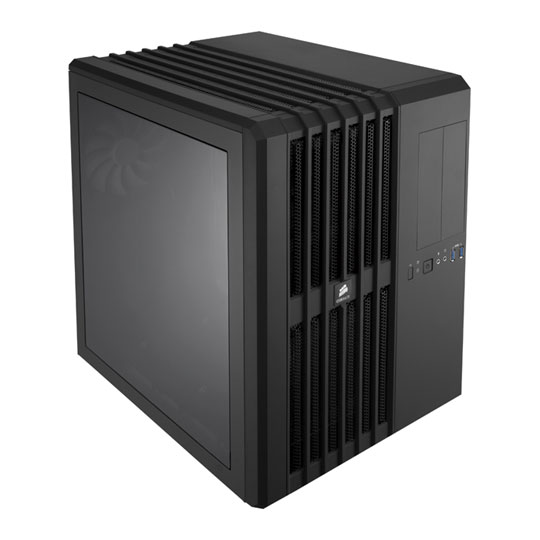

Corsair Carbide Air 540 Cube Case

CC-9011030-WW - Corsair Carbide Series Air 540 High Airflow ATX Cube Case - Direct Airflow Path Cooling For Revolutionary Performance

Finance
Scan Finance More options

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

CC-9011030-WW - Corsair Carbide Series Air 540 High Airflow ATX Cube Case - Direct Airflow Path Cooling For Revolutionary Performance

Corsair Carbide Air 540 Cube CaseCorsair Carbide Air 540 Cube CaseCorsair Carbide Air 540 Cube CaseCorsair Carbide Air 540 Cube Case
Corsair Carbide Air 540 Cube Case
Product Overview
The unconventional design of Carbide Series Air 540 utilizes dual chambers to deliver cooler air to your CPU, graphics cards, motherboard, and memory without your drives or power supply getting in the way. The included custom Air Series AF140L intake and exhaust fans provide great airflow performance at lower noise levels than typical case fans. And, you can mount up to six 120mm or five 140mm fans, with 280mm top radiator support and room for a 360mm radiator on the front panel.

Like all Corsair cases, Carbide Series Air 540 is designed for fast, neat, and satisfying builds. The tinted, oversized flush-mount side window lets you show off your work.

Outstanding Cooling
Our Direct Airflow Path™ design utilizes dual chambers to deliver cooler air to your CPU, graphics cards, motherboard, memory, and other PCI-E components without your drives or power supply getting in the way.

Quieter Operation
Carbide Series Air 540 includes 140mm Corsair Air Series AF140L intake and exhaust fans. The AF140L is based on the award-winning AF140 and provides great airflow performance at lower noise levels than typical case fans. The easy access, low-restriction dust filters are easy to maintain.

Ideal for Advanced Air Cooling and Water Cooling
You can mount up to six 120mm or five 140mm fans, or install a 240mm or 280mm top radiator and a 240mm, 280mm, or even 360mm radiator on the front panel. Corsair’s innovative cable routing system gives you more options for hiding pumps and tubing out of the way.

Built for Builders
Like all Corsair cases, Carbide Series Air 540 is designed for fast, neat, and satisfying builds. You get tool-free PCI-E and storage installation, two internal hot-swap drive bays, and more features for making assembly, upgrades, and maintenance quick and easy. And, the tinted, oversized flush-mount side window lets you show off your work.

About Corsair Carbide Series PC Cases
Corsair Carbide Series PC cases have the high-end features you need, and nothing you don’t. Designed to be the foundation of awesome yet approachable PCs, they combine the latest technology and ergonomic innovations with lots of room to build and expand, and amazing cooling potential.
Features
• Dual-chamber Direct Airflow Path. design for outstanding cooling potential
• Clever, space-saving design still offers lots of internal volume
• Includes three High Performance Air Series AF140L fans for better, quieter cooling
• Tons of expansion room for high performance air cooling and liquid cooling

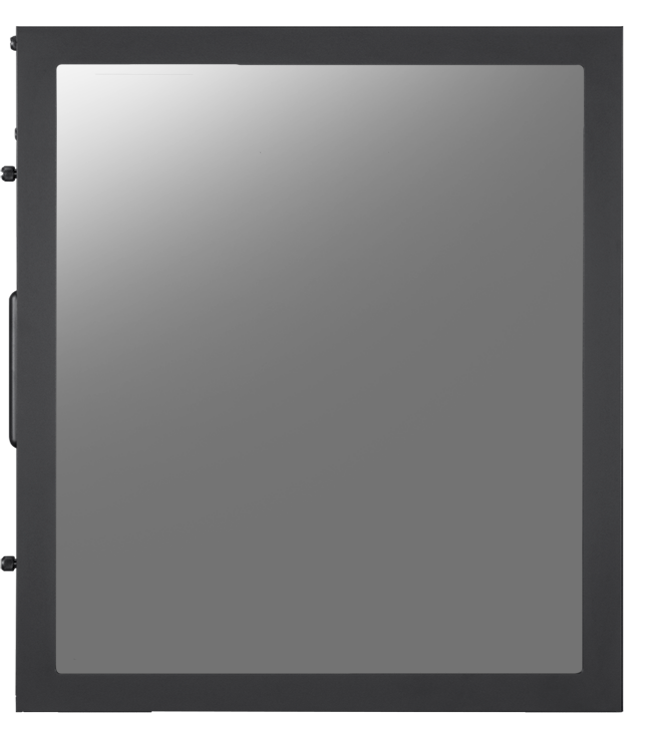

• Full side panel window
• Front dust filter
• Black interior

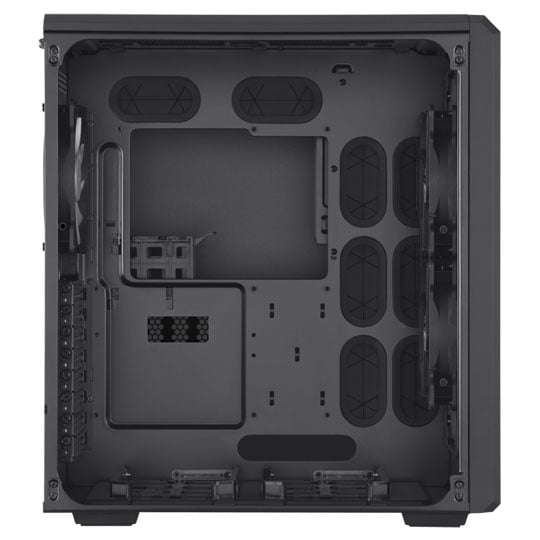

• Cable routing cutouts with rubber grommets
• CPU cutout in motherboard tray for easy CPU cooler swap-out
• Dual front USB 3.0 ports with internal connector
• Headphone, Microphone front ports
• Eight expansion slots for quad GPU installations
• Fan Mount Locations
• Front: 2 x 140mm (included), 3 x 120mm (pre-spaced for radiators)
• Top: 2 x 140mm or 2 x 120mm (pre-spaced for radiators)

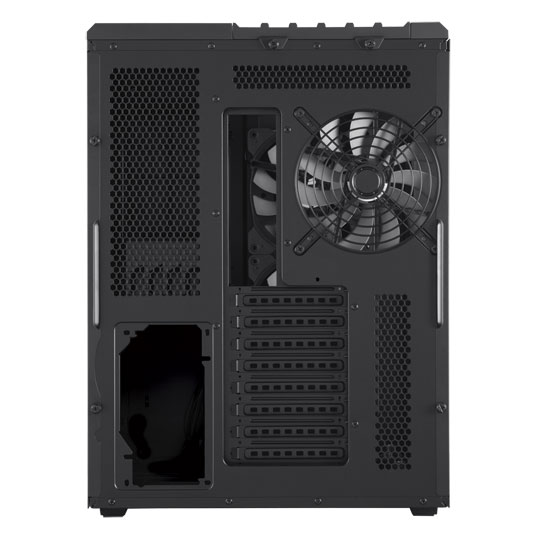

• Rear: 1 x 140mm (included) or 1 x 120mm
• Dual 3.5" hot swap bays
• Four 2.5" tool-free SSD drive cages
• Maximum GPU Length 320mm
• Maximum CPU Cooler Height 170mm
• Maximum PSU length 200mm
Technical Specification
General
Manufacturer:
Corsair
Case Edition:
Carbide Series Air 540
Case Form Factor:
ATX
Motherboard Form Factor:
  • ATX
  • E-ATX
  • Micro ATX
  • Mini ITX
Material:
Plastic/ Steel
Front/ Side/ Top Panel:
  • 1 x Line Out
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays:
  • 4 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
Expansion Slots:
8
Fan Bays:
  • 2 x 120/140 mm
  • 3 x 140mm
Fans Included:
  • 3 x 140mm
Window:
Yes
Power Supply Form Factor:
ATX
Max CPU Cooler Height:
170 mm
Max VGA Card Length:
320 mm
Dimensions:
415 x 332 x 458 (WxHxD mm)
Colour:
Black
Weight:
7.4 kg (Approx)
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Corsair / SCAN
Telephone:
0871 472 4747
Recommend This Product

To tell a friend about this product please fill out your name and enter their email address.

  • Send
Find Similar Products

Find similar products with the same specifications as Corsair Carbide Series Air 540 High Airflow ATX Cube Case - Direct Airflow Path Cooling For Revolutionary Performance . Please choose from the list below.

Carbide Series Air 540

Please tick the check box above

ATX

Please tick the check box above

ATX
E-ATX
Micro ATX
Mini ITX

Please tick the check box above

Plastic/ Steel

Please tick the check box above

1 x Line Out
1 x Mic In
2 x USB 3.0

Please tick the check box above

4 x 2.5"/ 3.5" Internal
2 x 5.25" External

Please tick the check box above

8

Please tick the check box above

2 x 120/140 mm
3 x 140mm

Please tick the check box above

3 x 140mm

Please tick the check box above

Yes

Please tick the check box above

ATX

Please tick the check box above

170 mm

Please tick the check box above

320 mm

Please tick the check box above

415 x 332 x 458 (WxHxD mm)

Please tick the check box above

Black

Please tick the check box above

7.4 kg (Approx)

Please tick the check box above
Customer Reviews
Rated 4.9 out of 5 by 32 reviewers.
Rated 5 out of 5 by great case, great cooling Excellent looking case. quality build as to be expected 31 May 2015
Rated 4 out of 5 by OK case but not enough room for a push and pull H110gt cooler Maybe its my mobo ? i have the asus sabertooth 990fx r2.0 and the Cable that connects top right of the cpu dosen't give enough room for push and pull on the h110gt 22 May 2015
Rated 5 out of 5 by One of the easiest cases i've worked on Good points It's got a lot of space and it's very easy to work in. Because of the way the PSU is in another compartment, the side with the window looks very clean and tidy. when you've finished. Airflow is good, I've added two 140mm fans from Corsair with the white LED's and it makes it look very smart. Bad points More options for Hard drives would be nice. The two slots at the bottom are the only places where you can put 3.5" HDD's is in the main area, in view. The hard drive bay in the rear section of the case only fits 2.5" drives (such as SSD's). For me, having the large HDD in the front takes a little bit of the 'clean' look I like about the case away. Also, because the PSU is much nearer to the mobo power ports, you'll have a lot of access cabling which makes the rear compartment a proper mess. 08 May 2015
Rated 5 out of 5 by Very Neat It took a lot for me to leave my old Aurora Gigabyte Tower behind as it just felt like class the way it was made...This tower can look bulky but it helps you to construct very neat builds and has no problem fitting any sized Graphics Card...my 980gtx fitted with ease along with my reasonably tall CPU fan. The fact the PSU goes behind the motherboard and you can feed the wires through is a great tidy idea...that along with the ease of slotting the Harddrives at the bottom of the case (One SSD) really made it looked like a neat build in the end...Airflow is also great with this case...No Regrets 31 March 2015
Rated 5 out of 5 by Top bit of kit Was a little worried when getting this case. The size the price. But after getting it out the box and taking a look at the quality I was happy I spent that little extra. All fitting in nice and tucked away. The airflow through it is like having an air conditioning unit going. The big window on the side is spot on and everyone who see it can't help taking a look inside, even the dog lol. Go buy if looking for a new case. 30 March 2015
Rated 5 out of 5 by A great case, however the item arrived damaged. Nonetheless... This product is exactly how the internet reviewers present it: a great case, with excellent air flow, cable tidiness and a very nice display for the components you have going in it. As the title says, the case got here damaged, probably because the delivery guys put some weight on top of it during delivery. The rear sides of both side panels were bent, and some bits of plastic were chipped off loose in the case when I shook it a bit. Despite that, the case is looking great and I haven't asked for a replacement. As a tip for people who bought it already and are reading those customers reviews (while waiting for the delivery), if you are planning on mounting a 280mm radiator on top as I did (a Corsair H110i GT), be mindful that when combined with the 3 140mm fans that you get with the case you will get NEGATIVE air pressure inside the case; for only 2 (the front ones) will be blowing air in and 3 will be blowing it out. The result is that the case will start accepting air from other sources/holes like the grill next to the rear PCI extension slots resulting in dust build-ups despite having the intakes filtered. Awesome product overall! 29 March 2015
Rated 5 out of 5 by Fantastic, Roomy and Gorgeous I have been after this case for a while now due to the tonne of space and upgradeability it offers. I was not disappointed when I went to fit all my parts into it. It offers fantastic cable management due to the rear shaft and offers lots of room for radiators for if you want to water-cool (I presume if you're wanting this case you plan to do custom water-cooling) I gave it a 4/5 for value due to the fact that it has went up by about £15 in the last 2 months which is disappointing. However, still a fantastic and gorgeous looking case. 29 March 2015
Rated 5 out of 5 by A nice bit of kit ! A fantastic package that's done its home work for cable routing and showing a neat display of your components. 25 March 2015
  • 2015-08-02T08:51:42.414-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_32, tr_32
  • loc_en_US, sid_51461, prod, sort_default
2 next>>
Questions and Answers
(6 Questions : 26 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


I really like my fans in a case to be quiet, and the case itself, so I was wondering how loud it is and if I would need to change it
1 year, 7 months ago
Customer avatar
by
Leicester, UK
Read all my Q&A

Please wait while more information about ImAMolerat is loaded.
Additional information about ImAMolerat could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hi there,

The fans in this case are nice and quiet. Just ensure you don't plug them in to your "PWR_FAN" plug on the motherboard. Like anything plugged in to that, the fan will go to maximum.

If you're after a quiet case, this is one of the best. Competing options for the same volume are really only the 90 degree Silverstone cases like the FT02 and RV series cases.
Age: 25 to 34
Gender: Male

Products related to my answer
Silverstone Raven RV02B-EW Black Full Tower Case with Side Window USB 3.0 3x180mm Quiet Fans w/o PSU
4.3 out of 5(3)



Silverstone Raven ST-RV03B-WA Black Full Tower with USB 3.0 with Side Window w/o PSU
4.3 out of 5(4)






1 year, 6 months ago
Customer avatar
by
Carnoustie, Angus, UK
Read all my Q&A

Please wait while more information about ftpdoug is loaded.
Additional information about ftpdoug could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
the fans are very loud in my opinion ,which is the only drawback with this case
Age: 45 to 54
Gender: Male
1 year, 1 month ago
Customer avatar
by
Stockport, UK
Read all my Q&A

Please wait while more information about petermanc1234 is loaded.
Additional information about petermanc1234 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
silent under normal load at 2m. filter paper over the fans makes them silent even when sat along side it.
8 months ago
Customer avatar
by
Swindon, UK
Read all my Q&A

Please wait while more information about Acid2k is loaded.
Additional information about Acid2k could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
At full power, they are pretty loud. Mine spin up to full for a second when powered on and they sound like a jet engine.

Under normal loads? Practically silent. Theres a slight, soft hum that comes from the machine, but I suspect that's because of my H80i rather than the case fans.
Age: 18 to 24
Gender: Male
8 months ago
Customer avatar
by
South Yorkshire, UK
Read all my Q&A

Please wait while more information about BarelyCompetitive is loaded.
Additional information about BarelyCompetitive could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
They're as loud as you configure them to be in speedfan.
Full tilt - theyre audiable, but I only game with a headset on, so I NEVER notice it.
Idling away at low RPMs?
I couldnt ask for much more from a free fan.

Bear in mind, these ARE corsair retail fans without the colour ring bells and rubber corner whistles.
Age: 18 to 24
1 year, 7 months ago
Customer avatar
by
Wigan, UK
Read all my Q&A

Please wait while more information about Jeckulz is loaded.
Additional information about Jeckulz could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
The case has lots of 'open' areas due to the mesh so it could be quite loud. it all depends on the fans. I use corsair fans with the anti vibration corners and I can barely here them. My graphics card is the noisy part atm so it will be replaced sooner than planned.
1 year, 4 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Weiss is loaded.
Additional information about Weiss could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
The fans that are in the case aren't actually that loud. As you would expect from a quality brand like Corsair with the more expensive stuff better fans are supplied. However I am no longer using the case fans that came with it, for the time I was using them I was having no issues with lots of sound coming from them. Now I have replaced the default ones with AF140 Silent Edition the case is virtually silent with the only sounds ever coming from my Radiator/Pump.
Age: 18 to 24
Gender: Male
3 months ago
Customer avatar
by
Middlesbrough, Middlesbrough, UK
Read all my Q&A

Please wait while more information about James97 is loaded.
Additional information about James97 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
The case doesn't have any noise dampening at all but the included fans are quiet enough that you don't notice them.
Age: 17 or under
Gender: Male
1 year, 6 months ago
Customer avatar
by
Manchester, UK
Read all my Q&A

Please wait while more information about jackparkyy is loaded.
Additional information about jackparkyy could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Age: 65 or over
Gender: Male
11 months ago
Customer avatar
by
Oxford, UK
Read all my Q&A

Please wait while more information about Beedy is loaded.
Additional information about Beedy could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Most DVD writers now can be positioned in either the horizontal or vertical position.

The one I usually use is the following:

http://www.scan.co.uk/products/pioneer-dvr-221lbk-24x-sata-dvd-cd-dual-layer-burner-with-labelflash-oem
10 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about CarlH is loaded.
Additional information about CarlH could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
I had no problems with my Pioneer Blu Ray Writer, I think any should work.
9 months ago
Customer avatar
by
Dunblane, Dunblane, Stirling FK15, UK
Read all my Q&A

Please wait while more information about SuperGamer is loaded.
Additional information about SuperGamer could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Because of normal drive design, a shorter list would be ones that would not work. Take it as a given any will work and simply test it out before you put something important in it.

(When you get the drive, the tray should have these little nooks that will hold the CD when on its side)
8 months ago
Customer avatar
by
Swindon, UK
Read all my Q&A

Please wait while more information about Acid2k is loaded.
Additional information about Acid2k could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
You're still using optical media?

I used mine as extra HDD bays.
Age: 25 to 34
Gender: Male
10 months ago
Customer avatar
by
Wigan, UK
Read all my Q&A

Please wait while more information about Jeckulz is loaded.
Additional information about Jeckulz could not be loaded.
-2points
0out of 2found this answer helpful.
Was this helpful?helpful0unhelpful2

Answer:
All optical drives should work when positioned vertically. (Mine works fine)
Age: 18 to 24
Gender: Male
3 months ago
Customer avatar
by
Middlesbrough, Middlesbrough, UK
Read all my Q&A

Please wait while more information about James97 is loaded.
Additional information about James97 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Corsair don't supply dust filters with this case, can I buy them separately?
1 year, 2 months ago
Customer avatar
by
Hertfordshire, UK
Read all my Q&A

Please wait while more information about MrMotorrad is loaded.
Additional information about MrMotorrad could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Corsair does supply a dust filter for the front panel only. Other dust filters that fit this case will have to be custom made. Please see the attached image which shows the dust filter behind the metal mesh front panel.
Age: 18 to 24
Gender: Male
1 year, 2 months ago
Customer avatar
by
London, UK
Read all my Q&A

Please wait while more information about oliverturner is loaded.
Additional information about oliverturner could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
DEMCiflex make a magnetic filter pack for the Corsair Carbide 540. It includes filters for all openings on the case.
Age: 25 to 34
Gender: Male
10 months ago
Customer avatar
by
Bristol, UK
Read all my Q&A

Please wait while more information about JamesDarley is loaded.
Additional information about JamesDarley could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Yes but they are quite expensive. Just "google" Air 540 dust filters.
8 months ago
Customer avatar
by
Swindon, UK
Read all my Q&A

Please wait while more information about Acid2k is loaded.
Additional information about Acid2k could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
There is a dust filter in the front that covers the main intake. It is a good filter from what I can tell and is keeping a lot of the dust out. You could fit a standard 120/140mm dust filter in the back of course depending on what size fans are in there. And the same with the top. I can also confirm that a 280mm dust filter will fit under the top cover for the top intake/out-take.
Age: 18 to 24
Gender: Male
3 months ago
Customer avatar
by
Middlesbrough, Middlesbrough, UK
Read all my Q&A

Please wait while more information about James97 is loaded.
Additional information about James97 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Yes, any 120mm or 140mm fan filter will fit on the back or top fans and the front comes with a filter. I'd recommend these filters as they are what I use for my corsair air 540.

http://www.scan.co.uk/products/120mm-silverstone-sst-ff122b-with-cleanable-fan-filter-with-magnet

http://www.scan.co.uk/products/140mm-silverstone-fan-grille-and-filter-kit-magnetic-with-dust-filtering-a-must-have!
Age: 17 or under
Gender: Male
1 year, 1 month ago
Customer avatar
by
Manchester, UK
Read all my Q&A

Please wait while more information about jackparkyy is loaded.
Additional information about jackparkyy could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Age: 35 to 44
Gender: Male
9 months ago
Customer avatar
by
Bolton, UK
Read all my Q&A

Please wait while more information about NeilWhiteley is loaded.
Additional information about NeilWhiteley could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Yes, but put it on some "feet" so you don't block the vent.
8 months ago
Customer avatar
by
Swindon, UK
Read all my Q&A

Please wait while more information about Acid2k is loaded.
Additional information about Acid2k could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
You could, I have this case an I do think that would be possible. However you would need to have some way of propping the bottom up so the air intake for the PSU isn't obstructed. Also the actual bottom of the case may not be the prettiest which might not be something that would bother you. Although you could cover it up with something of the same colour as there are holes there for the HHD hot-swap bays. I hope my answer was somewhat useful.
Age: 18 to 24
Gender: Male
3 months ago
Customer avatar
by
Middlesbrough, Middlesbrough, UK
Read all my Q&A

Please wait while more information about James97 is loaded.
Additional information about James97 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Yes but I'd see about getting some rubber feet to stick to the side. This way you'll still get a little bit of airflow for the PSU exhaust.
GPU sag isn't an issue. Heavy coolers tend to come with a back plate in order to help brace the card anyway and I've never had a card noticably sag.
2 months, 3 weeks ago
Customer avatar
by
Swindon, UK
Read all my Q&A

Please wait while more information about Himaro is loaded.
Additional information about Himaro could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
2 months, 2 weeks ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Alex1986 is loaded.
Additional information about Alex1986 could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Yep, pleanty of room.
2 months, 1 week ago
Customer avatar
by
Read all my Q&A

Please wait while more information about 4dd1ct3d121 is loaded.
Additional information about 4dd1ct3d121 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Yes. Correct me if I'm wrong but the board in question is a Micro ATX. This case supports all sizes of motherboard up to EATX (X99 platform sizes) Next time you should have a more thorougher look though the item description and it will tell you what motherboard sizes it supports.
Age: 18 to 24
Gender: Male
2 months ago
Customer avatar
by
Middlesbrough, Middlesbrough, UK
Read all my Q&A

Please wait while more information about James97 is loaded.
Additional information about James97 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Yes an mATX will fit =)

Compatibility
ATX, Micro ATX, E-ATX, and Mini ITX compatible.
2 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Vexx is loaded.
Additional information about Vexx could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
  • 2015-08-02T08:52:31.689-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_51461, prod, sort_default
2 next>>
  • 2015-08-02T08:52:31.695-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_51461, prod, sort_default
2 next>>


Switch to Mobile View
Switch to Desktop View
close
Image preview
