Coolermaster HAF XB Black Cube Case 2x USB 3.0 & Watercooling Support 2x12cm Quiet Fans No PSU - RC-902XB-KKN1
End of Life

Coolermaster HAF XB Black Cube Case 2x USB 3.0 & Watercooling Support 2x12cm Quiet Fans No PSU

RC-902XB-KKN1 - Cooler Master HAF XB Revolutionary Cube Case Black Extreme Cooling inc HDD X-Dock USB 3.0 2x12cm Fans w/o PSU (Std ATX)

Scan Code: LN48080

Manufacturer Code: RC-902XB-KKN1

Customer Reviews and Q&A

Social Media

RC-902XB-KKN1 - Cooler Master HAF XB Revolutionary Cube Case Black Extreme Cooling inc HDD X-Dock USB 3.0 2x12cm Fans w/o PSU (Std ATX)

Coolermaster HAF XB Black Cube Case 2x USB 3.0 & Watercooling Support 2x12cm Quiet Fans No PSUCoolermaster HAF XB Black Cube Case 2x USB 3.0 & Watercooling Support 2x12cm Quiet Fans No PSU
Coolermaster HAF XB Black Cube Case 2x USB 3.0 & Watercooling Support 2x12cm Quiet Fans No PSU

Product Overview

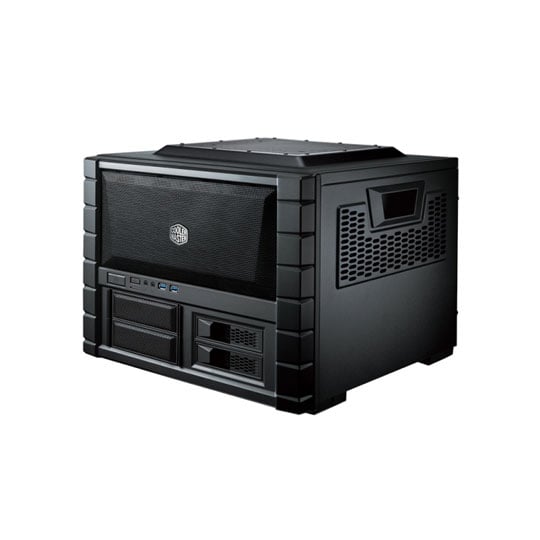

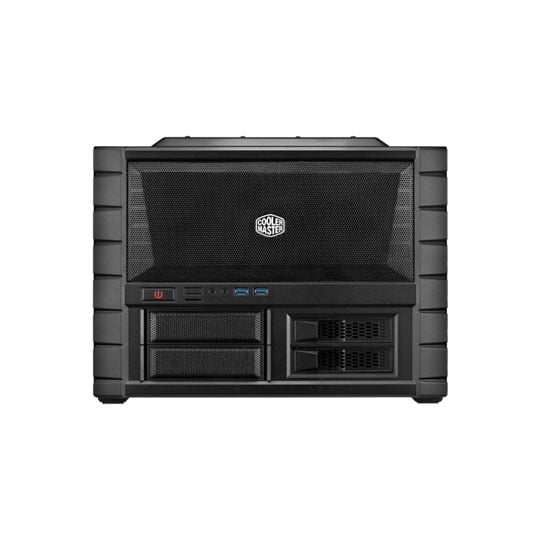

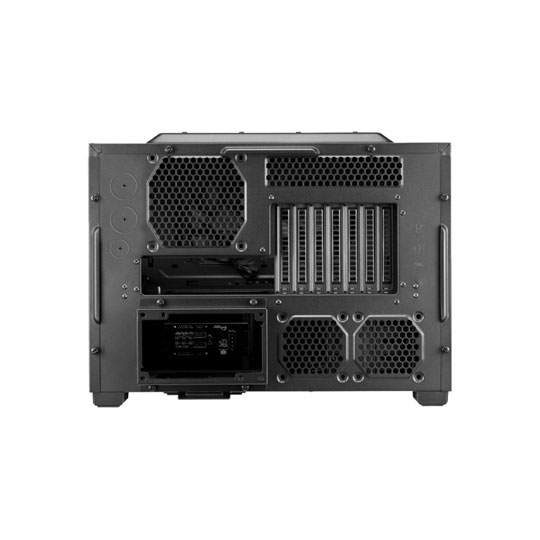

The Cooler Master HAF XB takes the famous High Air Flow series to a revolutionary new form factor with extreme cooling performance. The removable horizontal mainboard tray and large mesh top and front panels with two 120mm front fans create a powerful front to back airflow. Despite its compact rugged design, there is plenty of space for even the tallest high performance tower heatsinks, thick watercooling radiators and up to 3 of the longest high end graphics cards. Within seconds the side panels with their rigid carry handles and the top mesh panel can be removed, transforming the HAF XB into a Test bench with direct access to the hardware. The front panel features two USB 3.0 super speed ports as well as 2 SSD compatible X-dock slots for lightning fast data transfers.

• Direct front to back airflow over CPU and mainboard for extreme cooling performance.
• Supports 240mm radiators with extra clearance for thick performance radiators or push-pull fan configurations.
• Supports tower CPU coolers with a height of up to 180mm and up to 334mm long high end graphics cards.
• Motherboard tray can be removed to install, remove or swap components.
• The first case that quickly and easily transforms into a Testbench - Ideal for enthusiasts and overclockers.
• Dual USB 3.0 SuperSpeed ports and X-Dock slots at the front panel for lightning fast plug-n-play I/O.
• Rigid carry handles on the side panels.

Features

Material
• Steel body, Front Mesh, Plastic bezel

Dimension (W / H / D)
• 442 x 330 x 423mm / 17.4 x 13 x 16.7inch

Weight
• 8.2kg / 18.1lb

M/B Type
• ATX, Micro-ATX, Mini-ITX

5.25" Drive Bay
• 2

3.5" Drive Bay
• 2 (from X-Dock)

2.5" Drive Bay
• 6 (2 from X-Dock)

I/O Panel
• USB 3.0 x 2 (internal)
• Audio In & Out x 1 (supports HD Audio)

Expansion Slots
• 7

Cooling System
• Front: 120mm fan x 2, 1800 RPM, 21 dBA (or 140mm fan x 2)
• Rear: 120mm fan x 1 (optional), and
• 80mm fan x 2 (optional)
• Top: 200mm fan x 1 (optional)

Power Supply
• ATX PS2 (Support Max. of the PSU in 180mm length)

Maximum Compatibility
• VGA card length: 334mm/13.1inch
• CPU cooler height: 180mm/7.1inch
• Water cooling support: 240mm radiator x 1(front), 120mm radiator x 1(rear)

Technical Specification

Manufacturer:Cooler MasterFan Bays:2 x 120/140 mm
1 x 120mm
1 x 200mm
1 x 80mm
Case Edition:Fans Included:2 x 120mm
Case Form Factor:Quick Release Fittings:No
Motherboard Form Factor:ATX
Micro ATX
Mini ITX
Removable Panels:No
Material:Window:No
Front/ Side/ Top Panel:1 x Headphone
1 x Mic In
2 x USB 3.0
Dimensions:442 x 330 x 423 (WxHxD mm)
PSU :Colour:Black
Drive Bays:6 x 2.5" Internal
2 x 3.5" External
2 x 5.25" External
Weight:

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Return to base

DOA Period: 28 days

RTB Period: 24 months
