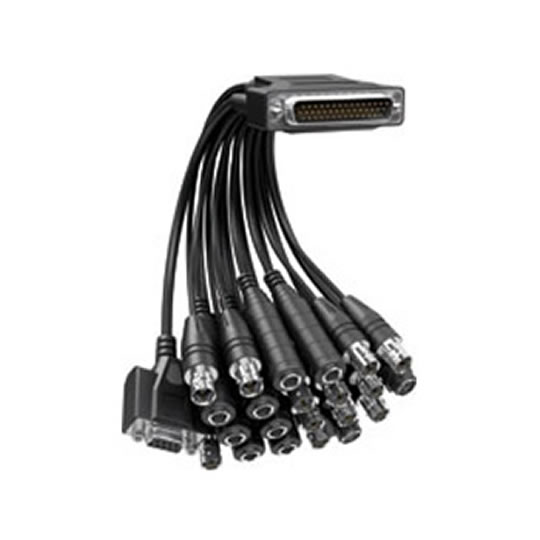

Blackmagic Cable Decklink Studio
Scan code: LN29764
Manufacturer code: BMD-CAB-BDLKSTUDIO
End Of Life
Product Overview
Connect to Anything (Decklink Studio only)
DeckLink Studio includes highest quality 10 bit SDI video combined with enhanced analogue connections to support a massive range of video equipment. DeckLink Studio includes fully independent connections for SDI, analogue component, S-Video and composite video. Both the SDI and analogue component connections auto switch between SD and HD, plus there's an extra SD SDI output via a built in hardware down converter for when you're working in HD. When you're working in NTSC and PAL, you can use the SD-SDI output as a key output! Also included are a massive number of audio connections, with 4 channels of balanced analogue audio, 8 channels of SDI audio plus 2 channels of AES/EBU digital with sample rate converters. For a broadcast strength solution, DeckLink Studio also has RS-422 deck control and blackburst and tri-sync reference input.

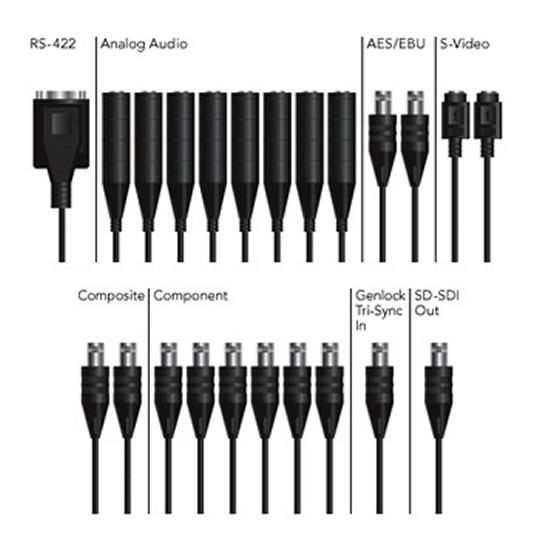

Now you can capture and playback to the widest range of equipment, such as HDCAM, HD-D5, HDCAM SR 4:2:2, Betacam SP, Digital Betacam, HD receivers, HDV cameras, televisions, VHS recorders, analogue broadcast monitors, mixers and many more! Features Connectors: RS-422, Analog Audio, AES/EBU, Composite, Component, Genlock Tri-Sync In, SD-SDI Out.
DeckLink Studio includes highest quality 10 bit SDI video combined with enhanced analogue connections to support a massive range of video equipment. DeckLink Studio includes fully independent connections for SDI, analogue component, S-Video and composite video. Both the SDI and analogue component connections auto switch between SD and HD, plus there's an extra SD SDI output via a built in hardware down converter for when you're working in HD. When you're working in NTSC and PAL, you can use the SD-SDI output as a key output! Also included are a massive number of audio connections, with 4 channels of balanced analogue audio, 8 channels of SDI audio plus 2 channels of AES/EBU digital with sample rate converters. For a broadcast strength solution, DeckLink Studio also has RS-422 deck control and blackburst and tri-sync reference input.
Now you can capture and playback to the widest range of equipment, such as HDCAM, HD-D5, HDCAM SR 4:2:2, Betacam SP, Digital Betacam, HD receivers, HDV cameras, televisions, VHS recorders, analogue broadcast monitors, mixers and many more! Features Connectors: RS-422, Analog Audio, AES/EBU, Composite, Component, Genlock Tri-Sync In, SD-SDI Out.
