Asus Z87-A Intel Z87 Socket 1150 Motherboard
End of Life

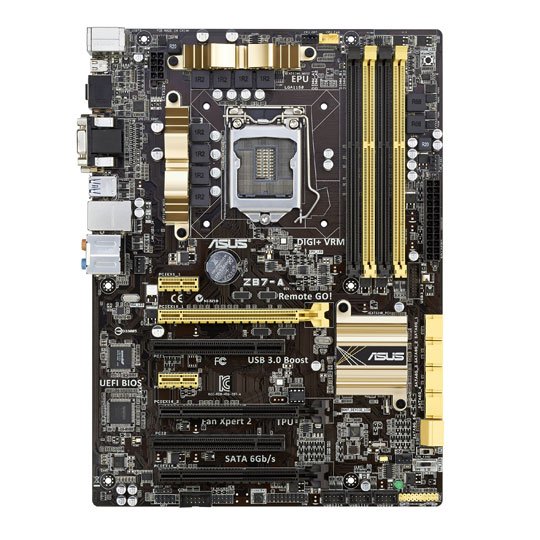

Asus Z87-A Intel Z87 Socket 1150 Motherboard

Asus Z87-A, Intel Z87, S 1150, DDR3, SATA III, SATA RAID, PCIe 3.0 (x16), D-Sub/DVI-D/HDMI, ATX

Scan Code: LN51134

Manufacturer Code: Z87-A

Customer Reviews and Q&A

Social Media

Asus Z87-A, Intel Z87, S 1150, DDR3, SATA III, SATA RAID, PCIe 3.0 (x16), D-Sub/DVI-D/HDMI, ATX

Asus Z87-A Intel Z87 Socket 1150 MotherboardAsus Z87-A Intel Z87 Socket 1150 Motherboard
Asus Z87-A Intel Z87 Socket 1150 Motherboard

Product Overview

The ASUS Z87-A supports Intel's new line of Haswell processors and features PCIe 3.0 lanes and Crossfire/SLi support, perfect for gaming. Onboard graphics now includes HDMI and mDP out as well as DVI and VGA for all your media needs. An exclusive feature to ASUS and found across our entire Z87 range is our fan headers. Our 4 pin headers provide PWM control for 3 pin fans, so you no longer need to upgrade your chassis fans and can save on an overall system build! We've also improved on our already well received UEFI BIOS, you can now track any changes you make automatically and we have included a quick note feature for overclocking. Simply type in anything you want to note down, gone are the days of using pen and paper when overclocking! This board also has 8 power phases for increased performance and stability. This board also comes with Dual Intelligent Processors 4 with 4-Way Optimization and remote GO!

Features

• Fan Expert2 – customize Fan speeds
• Digi+VRM - Precise Over Clocking
• USB BIOS Flash Back – Easy Bios Updates
• USB 3.0 Boost – Fast Data Transfer
• EPU – Green Energy saving
• New UEFI BIOS design.

Technical Specification

Manufacturer:AsusGraphics Connectors:D-Sub (VGA)
DVI-D
HDMI
Mini DisplayPort
Form Factor:ATX Graphics Interface:PCIe 3.0 (x16)
CPU Socket:1150 SLI Support:Quad SLi
QPI Speed:N/ACrossfire Support:
Chipset:Intel Z87 Water Cooled:No
Memory Type:DDR3 SATA:SATA III 6Gb/s
Memory Channel:Dual RAID:SATA
Memory Type (ECC):Non-ECC Expansion Slots:2 x PCI (32 bit)
2 x PCIe 2.0 x1
1 x PCIe 2.0 x16
2 x PCIe 3.0 x16
Memory Type (R/U):Unbuffered Internal I/O:1 x 24pin (V)
5 x 4pin Fan (V)
1 x 8pin (V)
1 x Clear CMOS Button
1 x FP Audio Header
1 x MemOK! Button
6 x SATA III - 6Gb/s
1 x Serial (COM) Header
1 x SPDIF-Out Header
3 x USB 2.0 Header
1 x USB 3.0 Header
Memory Speed (Mhz):DDR3 - 1333
DDR3 - 1600
DDR3 - 1800(OC)
DDR3 - 1866(OC)
DDR3 - 2000(OC)
DDR3 - 2133(OC)
DDR3 - 2200(OC)
DDR3 - 2400(OC)
DDR3 - 2500(OC)
DDR3 - 2600(OC)
DDR3 - 2666(OC)
DDR3 - 2800(OC)
Back Panel:1 x 10/100/1000 (LAN)
1 x 8.1 Audio I/O
1 x D-Sub
1 x DVI
1 x HDMI
1 x Mini DisplayPort
1 x PS/2 Keyboard/Mouse Combo
1 x SPDIF Out (Optical)
2 x USB 2.0
4 x USB 3.0
Memory Capacity:32GB

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Direct

DOA Period: 7 days

Manufacturer Contact Details

Manufacturer: ASUS

Telephone: 01442 265548
