Asus P8P67 Pro Rev 3.1 Intel P67 Express Socket 1155 Motherboard - P8P67 PRO <Rev.3.0>
Delivery
DPD £11.50 Delivered by DPD Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout
End of Life

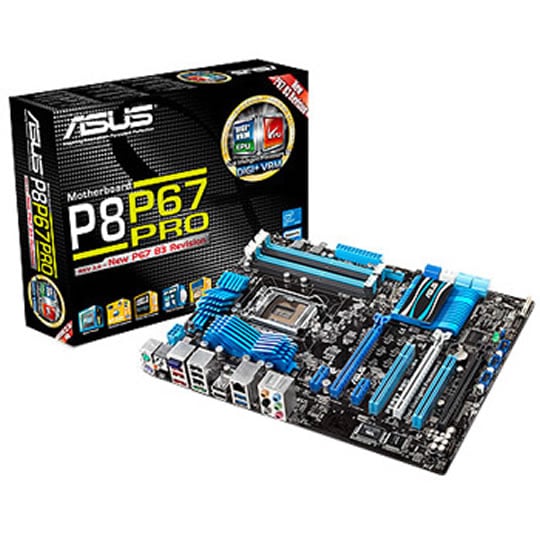

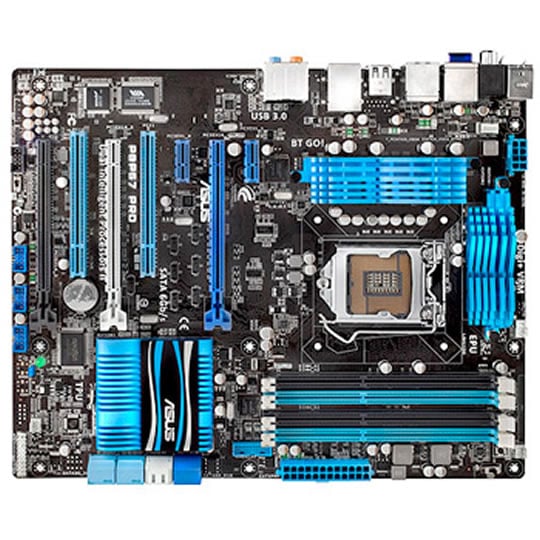

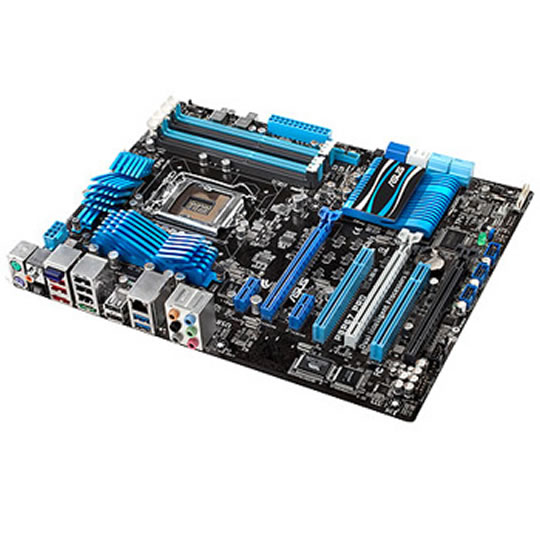

Asus P8P67 Pro Rev 3.1 Intel P67 Express Socket 1155 Motherboard

P8P67 PRO <Rev.3.0> - Asus P8P67 PRO Rev.3.1 Intel P67, S 1155, DDR3, SATA III - 6Gb/s, RAID SATA, PCIe 2.0 (x16), ATX

Finance
Scan Finance

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

Product Overview
This motherboard supports the latest Intel® second generation Core™ i7/Core™ i5/Core™ i3 processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7/Core™ i5/Core™ i3 processors are among the most powerful and energy efficient CPUs in the world.
Features
• Dual Intelligent Processors 2 with DIGI+ VRM
• BT GO! (Bluetooth) - Diverse BT Enjoyment, New Technology Lifestyle
• EFI BIOS (EZ Mode) - Flexible & Easy BIOS Interface
• Quad USB 3.0/SATA 6Gb/s Support - Double Access, Double Convenience
• Intel® LAN Support - Faster Transfer Speed
Technical Specification
General
Manufacturer:
Asus
Form Factor:
ATX
CPU Socket:
1155
QPI Speed:
N/A
Chipset:
Intel P67
Memory Type:
DDR3
Memory Channel:
Dual
Memory Type (ECC):
Non-ECC
Memory Type (R/U):
Unbuffered
Memory Speed (Mhz):
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866(OC)
  • DDR3 - 2133(OC)
  • DDR3 - 2200(OC)
Memory Capacity:
32GB
Graphics Connectors:

Graphics Interface:
PCIe 2.0 (x16)
SLI Support:
N/A
Crossfire Support:
N/A
Water Cooled:
No
SATA:
SATA III 6Gb/s
RAID:
SATA
Expansion Slots:
  • 2 x PCI (32 bit)
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 2.0 x16 (x8 Bandwidth)
Internal I/O:
  • 1 x 24pin (V)
  • 2 x 3pin Fan (V)
  • 2 x 4pin Fan (V)
  • 1 x 8pin (V)
  • 1 x Firewire 400
  • 1 x FP Audio Header
  • 4 x Memory Slots (DDR3)
  • 4 x SATA II - 3Gb/s
  • 4 x SATA III - 6Gb/s
  • 1 x SPDIF-Out Header
  • 1 x System panel connector
  • 3 x USB 2.0 Header
  • 1 x USB 3.0 Header

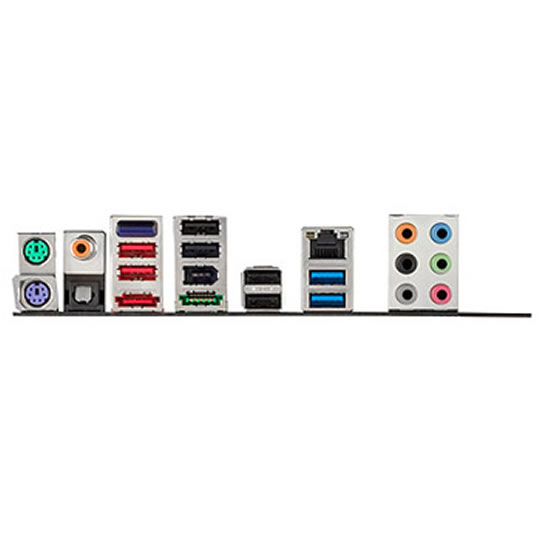

Back Panel:
  • 1 x 10/100/1000 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x Bluetooth
  • 2 x eSATA 3Gb/s
  • 1 x Firewire (6pin)
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x SPDIF Out (Coaxial)
  • 1 x SPDIF Out (Optical)
  • 6 x USB 2.0
  • 2 x USB 3.0
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
