Asus P8H61-M LX Si Socket 1155 Motherboard - P8H61-M LX2 Si
Delivery
DPD £5.48 Delivered by DPD Wed 27 May. Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout
End of Life

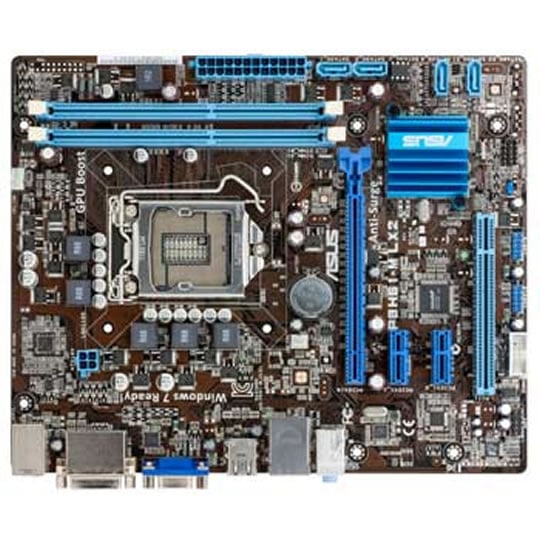

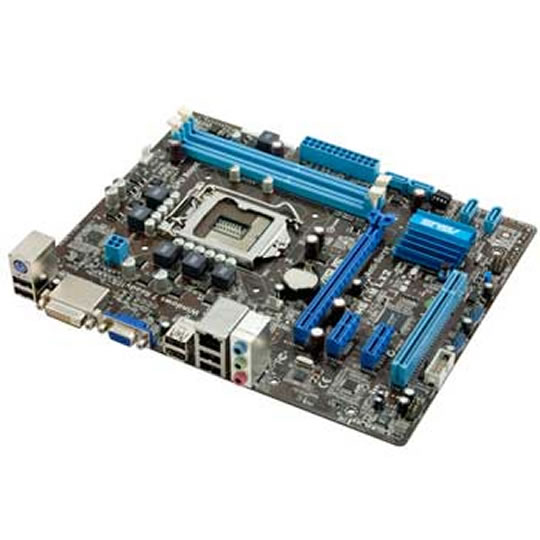

Asus P8H61-M LX Si Socket 1155 Motherboard

P8H61-M LX2 Si - Asus P8H61-M LX2, Si Intel H61, S1155, DDR3, SATA II - 3Gb/s, PCIe 2.0, VGA, Micro ATX **OEM with accessories**

Finance
Scan Finance

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

Product Overview
The Intel® H61 Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i5 / Core™ i3 2nd generation processors.

It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability.

Accessories included..

1x Manual
1x Driver disk
1x Motherboard blackplate
2x SATA cables
Features
• GPU Boost
• Asus Anti -Surge Protection
• Asus EFI BIOS
• Asus CrashFree BIOS 3
• Asus EZ Flash 2
• Asus MyLogo 2
Technical Specification
General
Manufacturer:
Asus
Form Factor:
Micro ATX
CPU Socket:
1155
QPI Speed:
N/A
Chipset:
Intel H61
Memory Type:
DDR3
Memory Channel:
Dual
Memory Type (ECC):
Non-ECC
Memory Type (R/U):
Unbuffered
Memory Speed (Mhz):
  • DDR3 - 1066
  • DDR3 - 1333
Memory Capacity:
8GB
Graphics Connectors:

Graphics Interface:
PCIe 2.0 (x16)
SLI Support:
N/A
Crossfire Support:
N/A
Water Cooled:
No
SATA:
SATA II 3Gb/s
RAID:
None
Expansion Slots:
  • 1 x PCI (32 bit)
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
Internal I/O:
  • 1 x 24pin (V)
  • 1 x 4pin (V)
  • 2 x Fan Header (V)
  • 1 x FP Audio Header
  • 2 x Memory Slots (DDR3)
  • 4 x SATA II - 3Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x Speaker
  • 1 x System panel connector
  • 2 x USB 2.0 Header

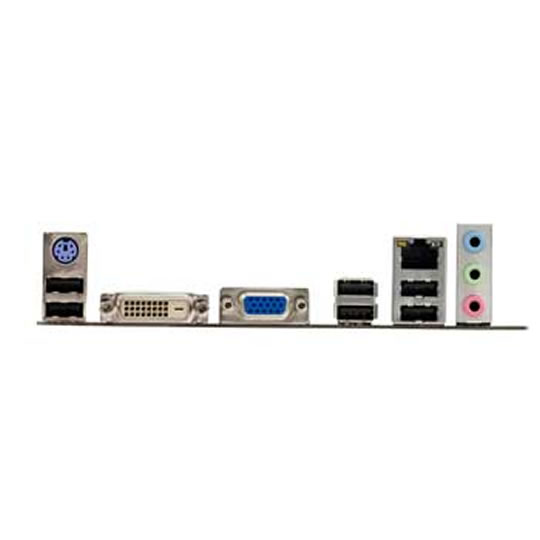

Back Panel:
  • 1 x 10/100/1000 (LAN)
  • 3 x Audio I/O
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x PS/2 Keyboard/Mouse Combo
  • 6 x USB 2.0
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
