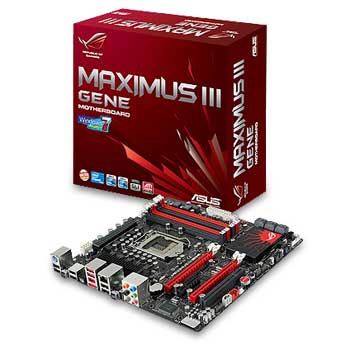

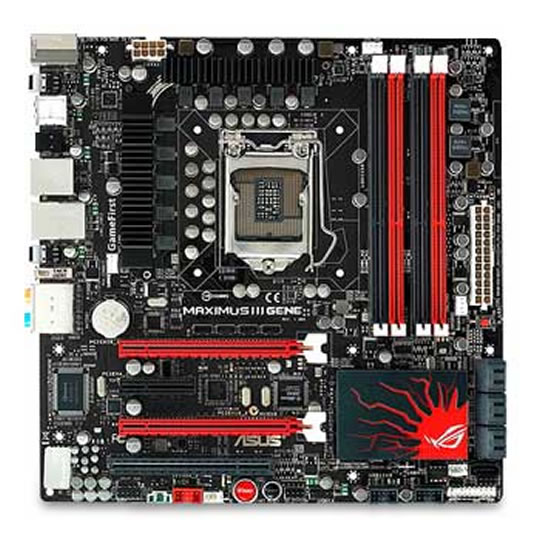

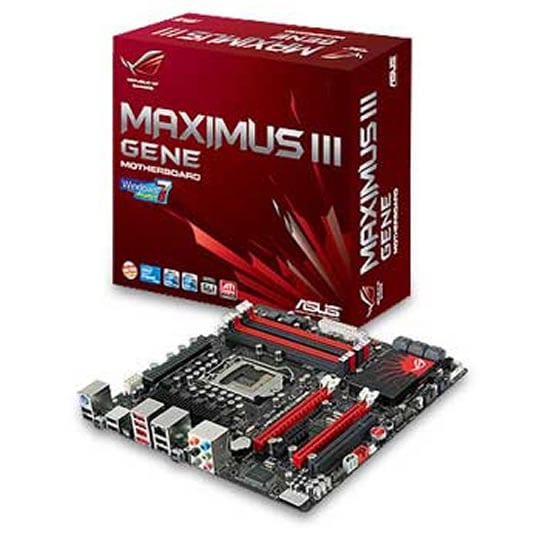

Asus Maximus III GENE Intel P55 Express 1156 Motherboard
End of Life

Asus Maximus III GENE Intel P55 Express 1156 Motherboard

Asus Maximus III GENE, Intel P55 Express, S1156, DDR3 2133(OC), SATA 3Gb/s, SATA RAID, mATX

Scan Code: LN28669

Manufacturer Code: Maximus III GENE

Customer Reviews and Q&A

Social Media

Product Overview

The Republic of Gamers consists only the best of the best. We offer the best hardware engineering, the fastest performance, the most innovating ideas, and we welcome the best gamers to join in.

In the Republic of Gamers, mercy rules are only for the weak, and bragging rights means everything. We believe in making statements and we excel in competitions. If your character matches our trait, then join the elite club, make your presence felt, in the Republic of Gamers.


THE REPUBLIC OF GAMERS

Features

CPU Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor
Supports Intel® Turbo Boost Technology
* Refer to www.asus.com for Intel CPU support list

Chipset Intel® P55 Express Chipset

Memory 4 x DIMM, Max. 16 GB, DDR3 2133(O.C.)*/2000(O.C.)/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
**Supports Intel® Extreme Memory Profile (XMP)
*** Please refer to www.asus.com or user manual for the Memory QVL(Qualified Vendors Lists).
Expansion Slots 2 x PCIe 2.0 x16 (support single at x16 or dual at x8/x8 mode)
1 x PCIe x4
1 x PCI 2.2

Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology / ATI® Quad-GPU CrossFireX™ Technology
Storage Intel® P55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10

JMicron® JMB363 SATA controller
1 xExternal SATA 3.0 Gb/s port at rear (SATA On-the-Go)
1 xSATA 3.0 Gb/s port
LAN Gigabit LAN controller featuring AI NET2
GameFirst

Audio SupremeFX X-Fi built-in
- 8-channel High Definition Audio CODEC
- EAX® Advanced™ HD 4.0
- X-Fi CMSS®-3D
- X-Fi Crystalizer™
- Creative ALchemy
- Blu-ray support
- Supports Optical S/PDIF out port on rear
IEEE 1394 2 x 1394a ports (1 port at back I/O, 1 port onboard)
USB 14 USB 2.0/1.1 ports (5 ports at mid-board, 9 ports at back panel)
ASUS Unique Features MemOK!
MemPerfect
ProbeIt
Onboard Switches: Power / Reset / Clr CMOS (at rear)
ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
ASUS Q-Connector
ASUS Q-Slot
ASUS Q-DIMM
ASUS EPU
ASUS Fan Xpert
ASUS MyLogo3
ASUS EZ Flash 2
ASUS CrashFree BIOS 3

Overclocking Features CPU Power Design
- 8-phase CPU power
- 2-phase VTT power
- 2-phase Memory power
ROG Connect
CPU Level Up
iROG
Extreme Tweaker
Loadline Calibration
Intelligent overclocking tools:
- ASUS TurboV EVO
- O.C. Profile
Overclocking Protection:
- COP EX (Component Overheat Protection - EX)
- Voltiminder LED
- ASUS C.P.R.(CPU Parameter Recall)

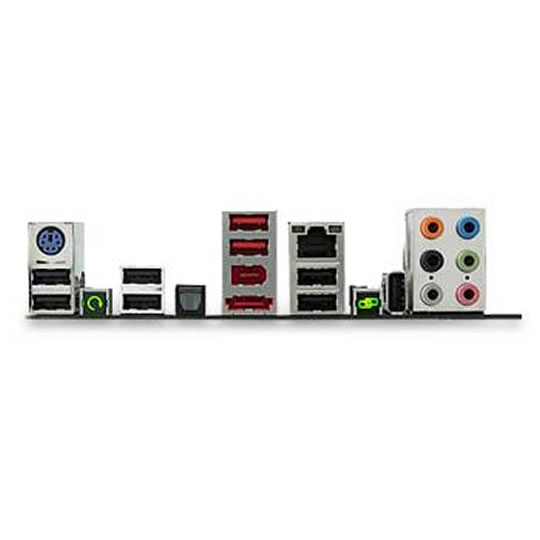

Back Panel I/O Ports 1 x External SATA
1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
9 x USB 2.0/1.1
1 x PS/2 Keyboard port (purple)
1 x Clr CMOS switch
1 x ROG Connect On/Off switch
8-channel Audio I/O with gold-plated jack
Internal I/O Connectors 3 x USB connectors supports additional 5 USB 2.0 ports (1 port reserved for ROG Connect at rear)
1 x IEEE 1394a connector
7 x SATA connectors (one is from JMicron® 363 (black))
5 x Fan connectors: 1 x CPU / 2 x Chassis / 2 x Optional
1 x SPDIF out header
1 x CD audio in
1 x Front panel audio connector
2 x thermal sensor connectors
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
1 x En/Dis-able Clr CMOS header
5 x ProbeIt measurement points
1 x Go Button
System panel connector

BIOS 16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI2.0a Multi-Language BIOS

Manageability WOL by PME,WOR by PME,PXE
Accessories User's manual
1 x I/O Shield
1 x ROG Connect Cable
1 x ROG Cable Labels (12 in 1)
1 x SLI Cable
1 x 2-in-1 ASUS Q-Connector Kit
3 x 2-in-1 SATA signal cables
1 x Cable Ties
1 x ROG Theme Label
Support Disc Support DVD:
- Drivers and applications
Sound Blaster X-Fi Utility
ROG GameFirst Utility
ASUS TurboV EVO Utility
ASUS PC Probe II
ASUS Update
ASUS AI Suite
Kaspersky® Anti-Virus

Form Factor uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Technical Specification

Manufacturer:AsusGraphics Connectors:
Form Factor:Micro ATX Graphics Interface:PCIe 2.0 (x16)
CPU Socket:1156 SLI Support:
QPI Speed:6.4 GT/sCrossfire Support:
Chipset:Intel P55 Water Cooled:No
Memory Type:DDR3 SATA:SATA II 3Gb/s
Memory Channel:Dual RAID:SATA
Memory Type (ECC):Non-ECC Expansion Slots:1 x PCI (32 bit)
2 x PCIe 2.0 x16 (x16/x8 Bandwidth)
1 x PCIe x4
Memory Type (R/U):Unbuffered Internal I/O:1 x 24pin (V)
1 x 8pin (V)
1 x CD-In
1 x En/Dis-able Clr CMOS connector
5 x Fan Header (V)
1 x Firewire
1 x FP Audio Header
4 x Memory Slots (DDR3)
7 x SATA II - 3Gb/s
1 x SPDIF-Out Header
1 x System panel connector
2 x Thermal sensor connector
3 x USB 2.0
Memory Speed (Mhz):DDR3 - 1066
DDR3 - 1333
DDR3 - 1600
DDR3 - 2000(OC)
DDR3 - 2133(OC)
Back Panel:1 x 10/100/1000 (LAN)
1 x 7.1 Audio I/O
1 x Clear CMOS switch
1 x eSATA 3Gb/s
1 x Firewire
1 x PS/2 Keyboard
1 x ROG Connect On/Off switch
1 x SPDIF Out (Optical)
9 x USB 2.0
Memory Capacity:16GB (4x4GB)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 36 months

Type: Return to base

DOA Period: 28 days

RTB Period: 36 months
