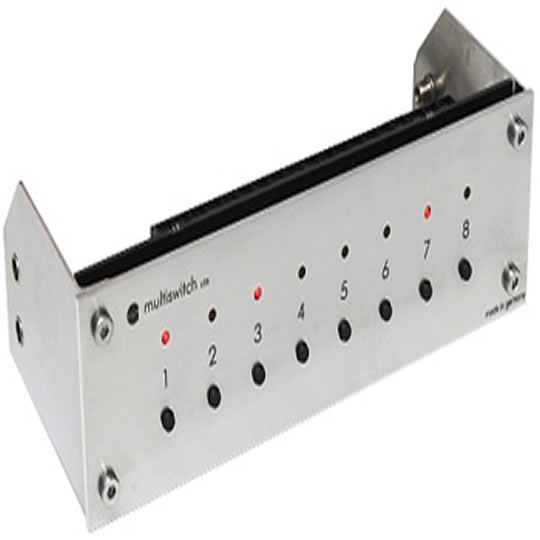

Aqua Computer Aquaero Silver 8 Channel Multiswitch
Aqua Computer Aquaero Silver 8 Channel Multiswitch Software Powered, USB Controlled
The multiswitch is the ultimate controlling unit for your PC. It is connected to your PC through USB and can be controlled with the aquasuite software or directly by the device. Its 8 main channels are able to switch electrical powers of 1A. eg; you can use it for the control of fans or cold cathodes. Besides the ON/OFF, it is also possible to dim these channels for the use of cold cathodes in 26 stages.
Besides using the aquasuite software the channels can also be controlled with recorded macros or scripts. Different effects are thus possible. The scripts or macros can be called directly by the multiswitch. They can respectively be assigned to one of the 8 buttons at the device. So it is possible to call effects or settings comfortably (day, night, lanparty etc.) at the device. The LEDs at the device show the state of the 8 main channels.
An interface to the optional connection of up to two aquastream controllers is integrated into the multiswitch. Over the enclosed Windows software the function status of the pump can be monitored as well as depending on controller revision and firmware the pumping power can be regulated (refer to the manual for further details).
Besides the use as a USB device the multiswitch can be connected with the aquaero over the aquabus. In this case it is controlled directly through the aquaero or out of the aquasuite
In addition to the known functions it is possible here to use the channels of the multisiwitch as a bar graph.
Through this LEDs or cold cathodes can be used as a bar graph which shows the values provided by the aquaero like ventilation-performance, temperatures, flow rate etc.
The LT version of the multiswitch can be used for the internal installation. It offers the same functions as the "big brother", but it lacks the bay mount and the faceplate with its buttons. The LT version is controlled completely by USB through the enclosed aquasuite software.
As always the firmware of the multiswitch can be updated out of the aquasuite. Therefore further functions are feasible.
Connections: USB, 8 power outputs, 8 LED outputs, 2x aquastream-bridge, relay, aquabus, stand-by supply
Maximum capacity of the channels: Each power output 12V at 1A, total load capacity of the multiswitch 40W
Capacity of the relay: 12V at 4A
