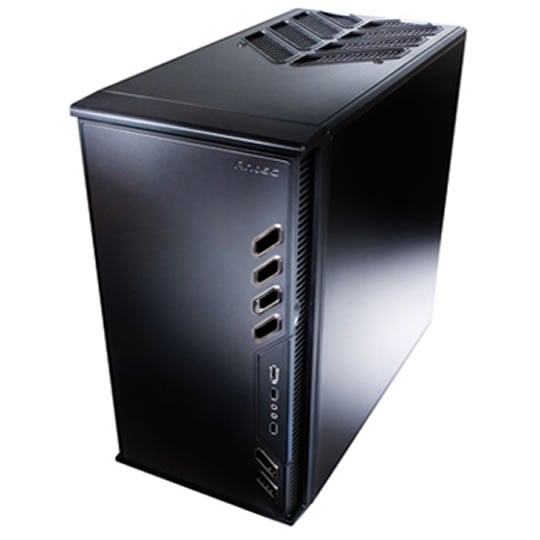

Antec P180 Black Mini Tower Computer Case micro-ATX
MINI P180 EU - Antec Mini P180, Black, micro-ATX Tower Performance Case w/o PSU
MINI P180 EU
Good things come in small packages
The reliability, performance, and versatility of the Antec Performance One series is now available in a stylishly small enclosure, perfect for gamers on the move.
The Mini P180 boasts a heat-reducing dual chamber design with room for your microATX motherboard, power supply, and up to 5 hard drives. Sound-deadening multi-layer side panels and silicone grommets ensure quiet computing, while 120 mm and 200 mm fans provide optimal cooling.
Top it off with a sleek interior black finish and front USB, audio, and eSATA ports, and you won’t believe the quality we’ve fit into this petite portable case.
Unique upper and lower chamber structure: the power supply resides in a separate chamber to isolate heat from the system and lower system noise.
Stylish black interior
No power supply included: to optimize the performance of your Mini P180, your choice of power supply is crucial. Antec strongly recommends choosing from our Siganture or TruePower series.
Configurable to accomodate graphics cards with full length PCBs
8 Drive Bays
• External 3 x 5.25''; 1 x 3.5''
• Internal 5 x 3.5'' for HDD
Cable organization for added convenience and better airflow
Innovative three-layer side panel (aluminium, plastic, aluminium) dampens system generated noise, making this one of the quietest cases available
• 1 rear (standard) 120mm x 25mm TriCool Fan
• 1 top (standard) 200mm x 25mm TriCool fan
• 2 front chamber (optional) 120mm Fan
• Exterior speed control switches
Maximum video card size: 9.5"/241mm (Note: some video cards may require removal of the adjacent hard drive cage)
Compatible Motherboards: Mini-ITX, microATX
4 Expansion Slots
Double hinge door designed to open up to 270º
• 2 x USB 2.0
• 1 x eSATA
• Audio In and Out (AC' 97 and HDA)
0.8mm cold rolled steel for durability through the majority of chassis
• 17.1"(H) x 8.3"(W) x 17.2"(D)
• 43,5cm(H) x 21,2cm(W) x 43,6cm(D)
• 20"(H) x 11.1"(W) x 20.3"(D)
• 51,0cm(H) x 28,3cm(W) x 51,5cm(D)
• Net: 20.9 lbs / 9,5 kg
• Gross: 24.4 lbs / 11,1 kg
|Manufacturer:||Antec||Fan Bays:||2 x 100mm
1 x 120mm
1 x 200mm
|Case Edition:||Fans Included:||1 x 120mm
1 x 200mm
|Case Form Factor:||Micro ATX ||Quick Release Fittings:||No
|Motherboard Form Factor:||Micro ATX||Removable Panels:||No
|Front/ Side/ Top Panel:||1 x eSATA|
1 x Line In
1 x Line Out
2 x USB 2.0
|Dimensions:||283 x 510 x 515 mm (WxHxD mm)
|Drive Bays:||1 x 3.5" External|
5 x 3.5" Internal
3 x 5.25" External
|Weight:||9.5 kg (Approx)
