11603 - Alphacool Heattrap Regcooler Abit Fatal1ty Capistor Chipset Cooler
End of Life

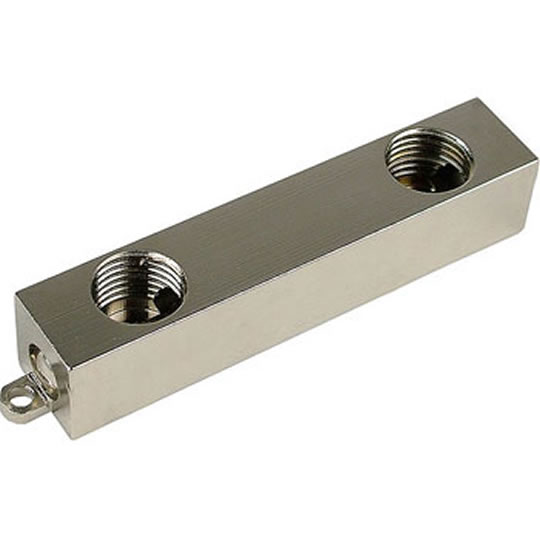

11603 - Alphacool Heattrap Regcooler Abit Fatal1ty Capistor Chipset Cooler


Thumbnail 1 : Alphacool Heattrap Regcooler Abit Fatal1ty Capistor Chipset Cooler

Scan Code: LN14374

Manufacturer Code: 11603

Customer Reviews and Q&A

Social Media

Product Overview

Heat-Trap RegCooler Abit Fatal1ty and AN8-Series!

This cooler was especially designed for the voltage converters of Abit Fatal1ty and AN8-Series Mainboards. The two coolers are made of highly pure electrolyte copper and are mounted at the voltage converters with the provided screw set. The coolers dispose of G 1/4" thread, thus the connections can be easily exchanged, if necessary. The coolers is entirely nickel-plated.


Technical details:
Material: elektrolyte copper, nickel-plated
Dimensions (copper): (LxWxH) 86 x 15 x 15 mm
Sealing: durable O-ring
Thread: G 1/4"
Weight: approx. 96g
Scope of delivery: 1x Heat-Trap RegCooler Abit Fatal1ty and AN8-Series, thermal paste, sealing plugs
Suitable for: Abit Fatal1ty and AN8-Series

Technical Specification

Manufacturer:AlphacoolDimensions:15 x 15 x 86 (W x H x D mm)
Socket Compatibility:Weight:96 g
Base Material:Copper/ Nickel Plated


For further information regarding Scan's warranty procedure please click here


Duration: 24 months

Type: Direct

DOA Period: 28 days

RTB Period: 12 months

Manufacturer Contact Details

Manufacturer: Alphacool

Telephone: 0871 472 4747

Additional Notes:
Manufacturer's warranty is reprinted here for your information only. Warranty terms subject to change without notice.
We recommend that you retain your retail packaging within the first 28 days of purchase.

Subject to 2 years manufacturers warranty, return to Scan for the first 12 months.

Address: Internet:
Alphacool GmbH
Marienberger Str. 1
D-38122 Braunschweig

Support-eMail (Englisch):
Support-Tel. :+49 (0)5 31/ 288 74-100
Fax: +49 (0)5 31/ 288 74-22

Water cooling products are designed to be fitted professionally.
Test the product for leakage away from the system before installing it on the system. Confirm there is no leakage, before you proceed with the installation. Use only approved coolant for computer water-cooling to prevent corrosion.
We highly recommend you carry out a 24/48 hour leak test prior to powering up your PC, and a system is fitted to monitor flow, and system temperatures.

Scan Computers International Limited will not be held responsible any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, serial number altered, defaced or removed; or has had the warranty seal on the system altered, defaced or removed, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.
