XFX XXX Edition 850w 80+ SILVER Modular PSU - P1-850B-NLG9
End of Life

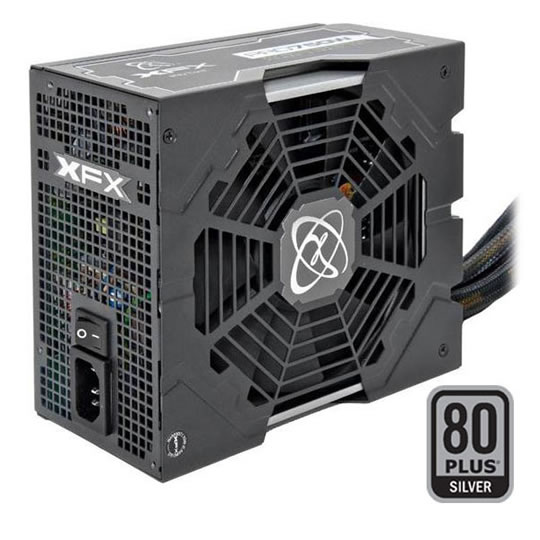

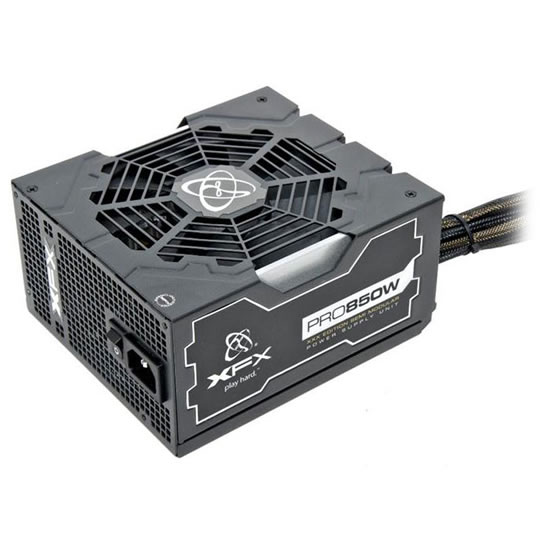

XFX XXX Edition 850w 80+ SILVER Modular PSU

850W XFX XXX P1-850B-NLG9 Hybrid Modular 88% Eff', 80 PLUS Silver, SLI/CrossFire, EPS 12V, Fan, ATX v2.2, PSU

Scan Code: LN42597

Manufacturer Code: P1-850B-NLG9

Customer Reviews and Q&A

Social Media

850W XFX XXX P1-850B-NLG9 Hybrid Modular 88% Eff', 80 PLUS Silver, SLI/CrossFire, EPS 12V, Fan, ATX v2.2, PSU

XFX XXX Edition 850w 80+ SILVER Modular PSUXFX XXX Edition 850w 80+ SILVER Modular PSU
XFX XXX Edition 850w 80+ SILVER Modular PSU

Product Overview

Unique, continuous EasyRail™ technology enables you to maximize available power and make set-up easy. Stack numerous power-hungry components without fear of crashing. It's also a perfect solution for hardcore gamers.

The XFX ProSeries PSU with EasyRail™ Technology
Enables you to maximize available power and make set-up easy. Stack numerous power-hungry components, such as your GPU, CPU and other components, without fear of crashing. In addition this PSU has also been award the 80Plus Bronze certification for its high power efficiency and is also designed for NVIDIA SLI and AMD Crossfire multi-GPU systems making it a perfect solution for hardcore gamers. One Rail, One Setup.

Other Power Supply Units
Conventional PSUs use multi-rail technology which basically combines cheaper and lower wattage PSUs into one single PSU to generate a higher total wattage. However, smaller rails have lower maximum wattages so left over wattage on individual rails become too small to handle major components and gets wasted.
Not enough actual wattage - Even though there is technically 50 Watts of power remaining, none of the rails have more than 25W to handle adding a 50W component.

Easyrail™ Power Supply Units
PSUs with EasyRail™ Technology give you one continuous rail of power covering the total maximum wattage. What this means is that no matter how many devices you have, high or low power, they can easily stack until it reaches the full maximum wattage. With EasyRail™ technology you can maximize the potential of your PSU with ease.
Exactly enough actual wattage - Of the 50 Watts of power that you expect to be remaining, all 50W is actually available to easily handle adding a 50W component.

True Wattage Guarantee
The wattage you see isn’t always the wattage you get. Some brands tweak tests to achieve great wattage ratings, but in reality, they deliver much lower maximum wattages. Don’t be fooled by wattage tricks.

Features

• DC to DC Converter Design
• Conductive Polymer Aluminum Solid Electrolytic Capacitors
• Active Power Factor Correction [99% PF Typical]
• High +12V Output
• Ultra Ventilation [Grid Structure]
• Multi-GPU Technologies Supported
• All-in-One DC Cabling Design
• Universal AC Input [Full Range]
• 5 Year Limited Warranty

Technical Specification

Manufacturer:XFXRail 4 +12V:N/A
Size:ATX v2.2 Rail 5 +12V:N/A
Edition: Rail 6 +12V:N/A
Wattage:850 WRail 7 +12V:N/A
80 PLUS Certification:80 PLUS Silver Rail 8 +12V:N/A
Max. Efficiency:88 %Max. Combined Output +12V:70 A
ErP / EuP Ready:NoModular:Yes
Cooling:Fan Modular Type:Hybrid Modular
Fans:1 x 135mm
SLI/CrossFire:Yes
Internal +12V Rails:Single Rail EPS 12V:Yes
Rail 1 +12V:70 AMotherboard Connector:20+4 Pin
Rail 2 +12V:N/AConnectors:1 x 4+4pin CPU +12V
8 x 4pin Molex
4 x 6+2pin PCI-E Power
1 x 8pin CPU +12V
2 x FDD Power
8 x SATA Power
Rail 3 +12V:N/ADimensions:150 x 86 x 170 mm (WxHxD)
