Thermaltake SP-850M PSU SMART 850W/ 80plus Bronze - 4716872054121
End of Life

Thermaltake SP-850M PSU SMART 850W/ 80plus Bronze

Images

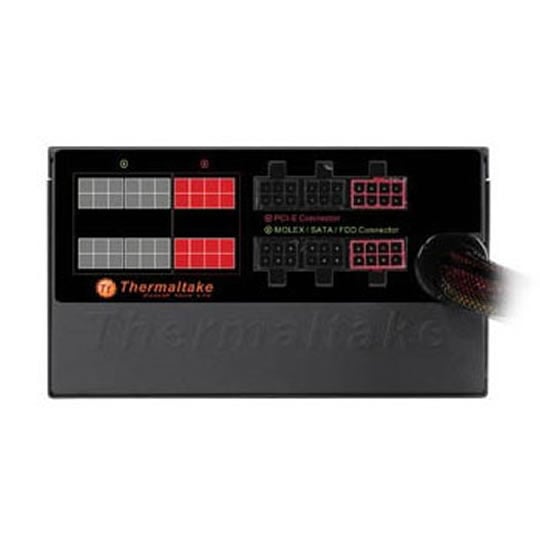

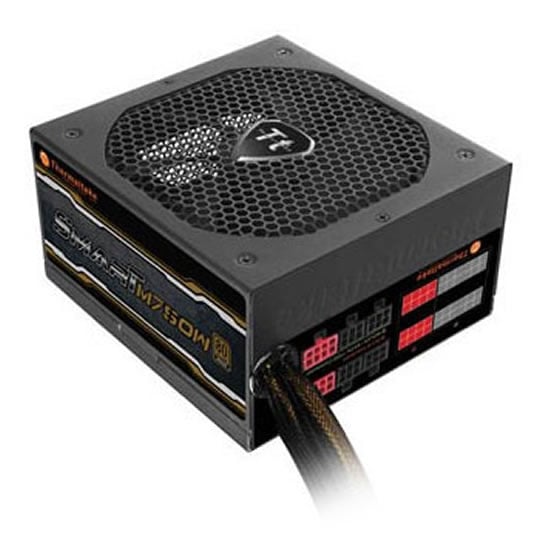

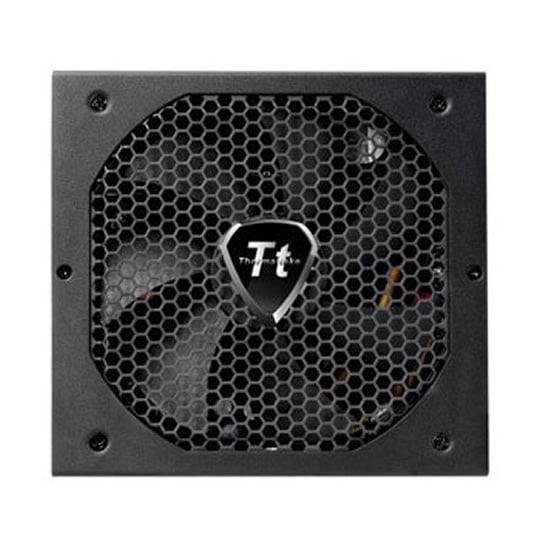

Thumbnail 1 : Thermaltake SP-850M PSU SMART 850W/ 80plus BronzeThumbnail 2 : Thermaltake SP-850M PSU SMART 850W/ 80plus BronzeThumbnail 3 : Thermaltake SP-850M PSU SMART 850W/ 80plus Bronze

4716872054121 - 850W Thermaltake SP-850M SMART plus Bronze 82-88% efficiency, 14cm Ultra Quiet Fan, Flat Modular Cable Management, PSU

Scan Code: LN43952

Manufacturer Code: 4716872054121

Customer Reviews and Q&A

Social Media

Product Overview

High Quality 105°C Japanese Main Capacitor

Japanese main capacitor provide uncompromised performance and reliability.

Industrial Grade Protection

Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.

Ultra Quiet 14cm Fan

SMART Modular Bronze series adopt 14cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

Flat Modular Cables

SMART Modular Bronze series adopt flat modular cables not only eliminate cable clutter within the system, but takes up less space for better airflow.

High Efficiency Circuit Design

Maximum efficiency up to 88% under wide load range.

Modular Cable Management

Cable management design improves internal airflow and reduce clutter.

Features

Supports the latest ATX 12V V2.3 & EPS 12V standards.
Guaranteed to deliver 850W continuous output @ 40? operating environment.
High current & single +12V rail provides superior performance.
80 PLUS Bronze certified: with 82-88% efficiency @ 20-100% load under real world load conditions.
100% High quality Japanese capacitors ensure superb performance and reliability.
Solid state capacitors: great stability at higher operating temperatures, frequencies and currents.
Double forward ultra-efficient circuitry design for added power savings.
Synchronous rectification circuit design with DC-DC converter for extremely stable performance and high efficiency.
Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Active PFC with Universal AC input.
Flat, low-profile modular cables allow for easy cable routing and increased airflow.
Supports multiple core high-end graphic cards & CPU. (NVIDIA SLI & ATI CrossFire Ready)
Dimension: 150mm(W)x86mm(H)x160mm(D).
High reliability: MTBF>100,000 hours.
Heavy-duty protection circuitry of Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.
Safety / EMI Approvals: UL/CUL/TUV/CE/FCC and BSMI certification.

Technical Specification

Manufacturer:ThermalTakeRail 4 +12V:N/A
Size:ATX Rail 5 +12V:N/A
Edition: Rail 6 +12V:N/A
Wattage:850 WRail 7 +12V:N/A
80 PLUS Certification:80 PLUS Bronze Rail 8 +12V:N/A
Max. Efficiency:88 %Max. Combined Output +12V:70 A
ErP / EuP Ready:NoModular:Yes
Cooling:Fan Modular Type:Hybrid Modular
Fans:1 x 140mm
SLI/CrossFire:Yes
Internal +12V Rails:Single Rail EPS 12V:Yes
Rail 1 +12V:70 AMotherboard Connector:24 Pin
Rail 2 +12V:N/AConnectors:1 x 4+4pin CPU +12V
6 x 4pin Molex
4 x 6+2pin PCI-E Power
1 x FDD Power
9 x SATA Power
Rail 3 +12V:N/ADimensions:150 x 160 x 86 mm (WxHxD)
