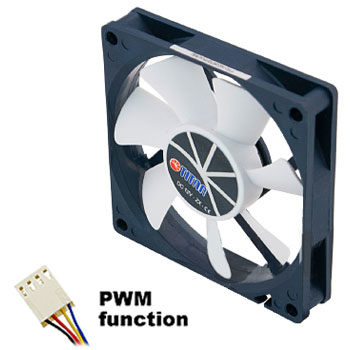

80mm Titan Fan 15mm wide TFD-8015HH12ZP/W1
End Of Life
80mm Titan Fan 15mm wide TFD-8015HH12ZP/W1
Scan code: LN39336 Manufacturer code: 4260120531426
End Of Life

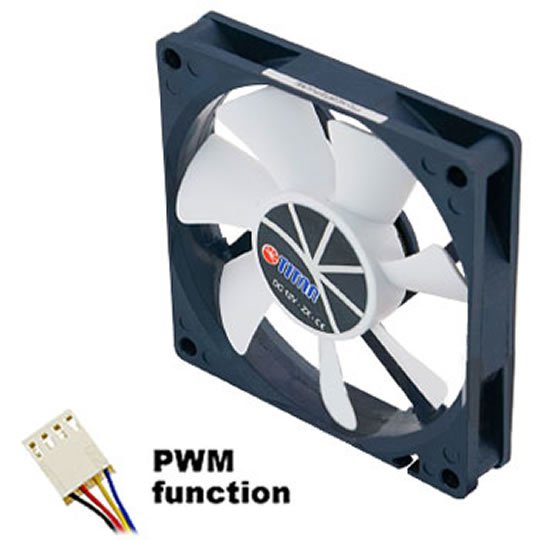

80mm Titan Fan 15mm wide TFD-8015HH12ZP/W1 : image 1
  • Thumbnail 1 : 80mm Titan Fan 15mm wide TFD-8015HH12ZP/W1
End Of Life

80mm Titan Fan 15mm wide TFD-8015HH12ZP/W1

80mm Titan TFD-8015HH12ZP/W1 Case Fan upto 3500rpm with PWM
MORE INFO
MORE INFO

Scan code: LN39336 Manufacturer code: 4260120531426
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

Product Overview For maximizing cooling performance, adopting TITAN TFD-8015HH12ZP/W1 8cm DC fan is recommended to provide sufficient air flow in the PC case.

• Robust and efficent cooling performance
• Long lifetime and auto low power consumption
• RoHS compliance only using environment-friendly Features Fan Dimension 80 x 80 x 15 mm
Rated Voltage 12V DC
Rated Current 0.45 A
Power Consumption 5.4W
Rated Speed 1500 ± 25% ~ 3500 ± 10% RPM
Airflow 14.84~37.1 CFM
Static Pressure 0.03~0.15 InchH2O
Noise Level <13.8 ~ <35dBA
Connector 4-PIN PWM function
Bearing Type Z-AXIS
Life Time 60,000 Hours
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 01204 474747.
