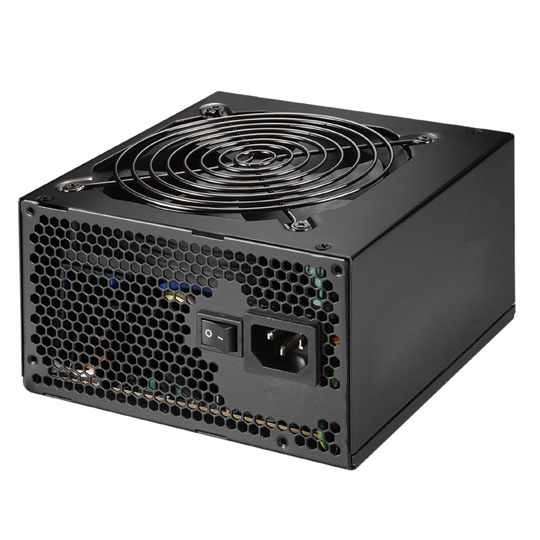

Storm Silent LPG19-43 800W Power Supply (PSU)
End of Life

Storm Silent LPG19-43 800W Power Supply (PSU)

LPG19-43 - 800W Storm Silent, Dual Rail, 1x120mm Fan, ATX v2.2 PSU

Scan Code: LN27455

Manufacturer Code: LPG19-43

Customer Reviews and Q&A

Social Media

LPG19-43 - 800W Storm Silent, Dual Rail, 1x120mm Fan, ATX v2.2 PSU

Storm Silent LPG19-43 800W Power Supply (PSU)
Storm Silent LPG19-43 800W Power Supply (PSU)

Product Overview

Introducing Storm power supply. PSU units with 120mm fan, SATA and PCIE support for Dual Core systems. Super silent Fan operation with noise level <23dBA.

Features

• Storm 800w psu with 120mm fan
• Improved Spec now with 4+4= 8pin connector and 4 x SATA
• Dual +12V technology; Version 2.2 psu
• Silent fan operation with noise level <23dBA
• PFC Power Factor Correction
• 24 Pin; 4 pin +12V; 1 x 6 pin Pci-e; 4 x SATA; 3 x 4 pin power; 1 x floppy connector
• Cable length 50cm fully braided sleeved cable
• Rear on/off power down switch
• Over voltage and circuit protection +3.3, +5V, +12V
• CE/FCC UL approved
• EMI Filter built in
• Colour retail boxed
• For Socket 775, Am2 and all backward CPU's
• ROHS Compliant
• Dimensions W 150 H86 D 140mm
• +3.3V 25A; +5V 24A; +12V1 32A; +12V2 32A; -12V 0.3A; +5vsb 2.5A

Technical Specification

Manufacturer:StormRail 4 +12V:N/A
Size:ATX v2.2 Rail 5 +12V:N/A
Edition: Rail 6 +12V:N/A
Wattage:800 WRail 7 +12V:N/A
80 PLUS Certification:Uncertified Rail 8 +12V:N/A
Max. Efficiency:Max. Combined Output +12V:N/A
ErP / EuP Ready:NoModular:No
Cooling:Fan Modular Type:
Fans:1 x 120mm
SLI/CrossFire:No
Internal +12V Rails:Dual Rail EPS 12V:Yes
Rail 1 +12V:32 AMotherboard Connector:24 Pin
Rail 2 +12V:32 AConnectors:1 x 4+4pin CPU +12V
3 x 4pin Molex
1 x 6pin PCI-E Power
1 x FDD Power
4 x SATA Power
Rail 3 +12V:N/ADimensions:150 x 86 x 140 mm (WxHxD)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 12 months

Type: Return to base

DOA Period: 28 days

RTB Period: 1 months

Manufacturer Contact Details

Manufacturer: SCAN

Recommend This Product

To tell a friend about this product please fill out your name and enter their email address.

  • Send

Find Similar Products

Find similar products with the same specifications as 800W Storm Silent, Dual Rail, 1x120mm Fan, ATX v2.2 PSU . Please choose from the list below.

ATX v2.2

Please tick the check box above

Please tick the check box above

800 W

Please tick the check box above

Uncertified

Please tick the check box above

Please tick the check box above

No

Please tick the check box above

Fan

Please tick the check box above

1 x 120mm

Please tick the check box above

Dual Rail

Please tick the check box above

32 A

Please tick the check box above

32 A

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

No

Please tick the check box above

Please tick the check box above

No

Please tick the check box above

Yes

Please tick the check box above

24 Pin

Please tick the check box above

1 x 4+4pin CPU +12V
3 x 4pin Molex
1 x 6pin PCI-E Power
1 x FDD Power
4 x SATA Power

Please tick the check box above

150 x 86 x 140 mm (WxHxD)

Please tick the check box above

Customer Reviews

Rated 4 out of 5 by 4 reviewers.
Rated 3 out of 5 by This Product Blew Up. Thinking i got a great product for the price i was wrong as it blew up. 07 November 2014
Rated 5 out of 5 by What more can I say ? This PSU looks well-made, especially the cables Being a standard item it slotted in easily No problems so far (2 months later) 14 July 2014
Rated 4 out of 5 by Cheap, easy to install. This PSU was super easy to install and looks great. The cables are a bit messy however, this PSU comes with any amount of cables you will ever need! 11 December 2013
Rated 4 out of 5 by Simple, quick to install PSU Bought this for my father who lost his PSU during a power surge. Delivery was prompt (as always from Scan). PSU was well packaged, good documentation, overall great product. Does exactly what it says on the tin. 25 October 2013
1-4 of 4

Questions and Answers

(1 Question : 1 Answer)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer

1 answer

Would this be compatible with my specs ?

I asked a similar question on a motherboard and was advised to upgrade my PSU this very similar to my old power supply which is Storm Silent LPJ19-25 500W Power Supply (PSU).Would this be compatible with specs and would it fit into my case which is a Fractal Design Core 1000.

my current specs are:

XFX Core Edition Radeon HD 7850 AMD Graphics Card - 1GB
Intel CPU i5 4430 Intel HD Graphics Processor
LiteOn IHAS124-04 24x DVD±R
Fractal Design Core 1000
500W Storm Silent LPJ19-25
MSI H61M-P31 (G3) Motherboard
Corsair CMZ8GX3M2A1600C9 Vengeance 8GB (2x4GB)
500GB Seagate ST500DM002 Barracuda SATA 6Gb/s, 7200rpm
Windows 7 64BIT Professional

I am upgrading my motherboard to MSI H87-G43 Intel H87 Socket 1150 Motherboard so I am upgrading my PSU to run my system better.

If this is not a suitable PSU , then any suggestions would be greatly appreciated.
Age: 18 to 24
Gender: Male

Products related to my question

Intel Core i5 4430, S 1150, Haswell, Quad Core, 3.0GHz, 3.2GHz Turbo, 1100MHz GPU, 30x Ratio, 84W, Retail
5 out of 5
(1)



1GB XFX Radeon HD 7850 Core Edition, 4800MHz GDDR5, 28nm, GPU 860MHz, 1024 Cores, 2x DVI/ HDMI/ 2x mini DisplayPort
4.6 out of 5(5)





1 year, 3 months ago
Customer avatar
by
Kent, UK
Read all my Q&A

Please wait while more information about james96 is loaded.
Additional information about james96 could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
I would go for a PSU with a lower wattage but better quality components such as:

LN38560 - XFX 550W P1-550S-XXB9 PSU

This PSU is from a well known brand and will be more than enough to keep your system running smoothly.
Age: 18 to 24
Gender: Male
1 year, 3 months ago
Customer avatar
by
Bolton, UK
Read all my Q&A

Please wait while more information about Johny is loaded.
Additional information about Johny could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
