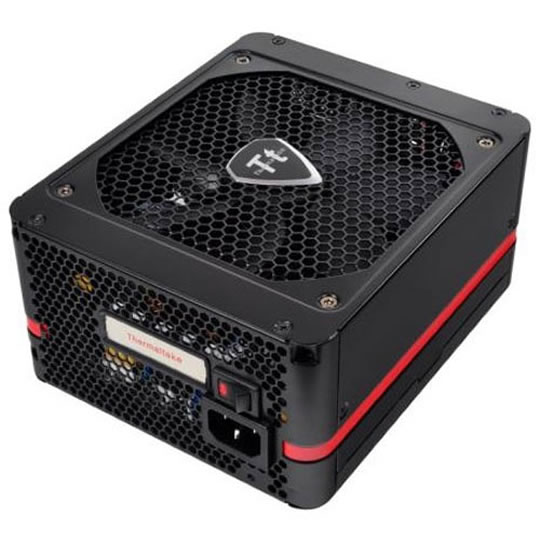

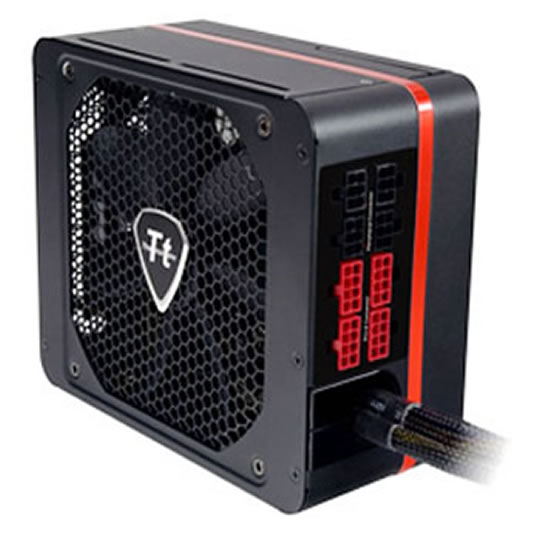

Thermaltake TPG-750M Toughpower Grand 750W Power Supply (PSU)
Scan code: LN44696
Manufacturer code: TPG-750M
End Of Life
Thermaltake TPG-750M Toughpower Grand 750W Power Supply (PSU)
750W Thermaltake TPG-750M Toughpower Grand, 80 Plus Gold, SLI/Crossfire, 12V, ATX v2.3, PSU
Scan code:
LN44696
Manufacturer code:
TPG-750M
This product is no longer available to purchase.
Email me when the availability or price changes
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
Pure Aesthetic Outer Chassis
The Toughpower Grand series' unparalleled aesthetic exterior design has set itself above other PSUs currently available on the market. The Toughpower Grand series certainly is one of Thermaltake's innovate hallmarks.
High Quality Japanese Made Electrolytic & Solid Capacitors
Toughpower Grand features 105?/221? Japanese made electrolytic capacitors & solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability.
Components protected by Fan Delay Cool
keeps the 14cm PSU cooling fan running for 15-30 seconds after system shutdown to dissipate the remaining system heat, thereby prolonging system lifetime.
DC-DC Converter & Double Forward Circuit
Unparalleled DC to DC converters for 3.3V & 5V outputs reaches high efficiency and double forward circuit offers low power loss and high reliability.
12Vin1
Single +12V rail provides the best compatibility for the latest components
Features • Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.
• 80 PLUS Gold certified – extreme efficiency PSU series with 87-92% efficiency @ 20-100% load to cut down electric cost.
• 24/7 @ 50?: Guaranteed to deliver 750W continuous power.
• Pure aesthetic design with uncompromising performance.
• Proprietary dual ball bearing 14cm flower-shape fan enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions.
• 100% 105? (221?) Japanese made electrolytic capacitors: the foundation of a robust and reliable power source even under the harshest operating environment.
• 105°C (221?) Solid state capacitors not only last longer than electrolytic capacitors but also offer excellent durability and reliability.
• Newly designed Active PFC circuitry provides higher efficiency during low-voltage input.
• Double-forward switching circuitry: compared with traditional circuitry, double-forward switching circuitry offers low power loss and high reliability.
• Unparalleled DC to DC converters for 3.3V and 5V outputs to reach high efficiency.
• 12Vin1: single +12V rail design providing up to 60A.
• FanDelayCool Technology: allows 14cm fan to continue to operate 15-30 sec after system shuts-down to ensure all components are properly cooled.
• Multi-GPU ready: 2 x PCI-E 8pin & 2 x PCI-E 6pin for PCI-Express graphic cards.
• Auto switching circuitry for universal AC input from 90-264V.
• Active Power Factor Correction (PFC) with PF value of 0.95 at full load.
• High reliability: MTBF>120,000 hours.
• DIMENSION: 5.9”(W) x 3.4”(H) x 7.1” (L);150mm(W) x 86mm(H) x 180mm(L)
• Built-in industry grade protections : Over Current, Over Power, Over Voltage, Under Voltage and Short-Circuit protection.
• Safety / EMI Approvals: CE, TUV, FCC, UL, CUL, GOST and BSMI certified.
The Toughpower Grand series' unparalleled aesthetic exterior design has set itself above other PSUs currently available on the market. The Toughpower Grand series certainly is one of Thermaltake's innovate hallmarks.
High Quality Japanese Made Electrolytic & Solid Capacitors
Toughpower Grand features 105?/221? Japanese made electrolytic capacitors & solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability.
Components protected by Fan Delay Cool
keeps the 14cm PSU cooling fan running for 15-30 seconds after system shutdown to dissipate the remaining system heat, thereby prolonging system lifetime.
DC-DC Converter & Double Forward Circuit
Unparalleled DC to DC converters for 3.3V & 5V outputs reaches high efficiency and double forward circuit offers low power loss and high reliability.
12Vin1
Single +12V rail provides the best compatibility for the latest components
Features • Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.
• 80 PLUS Gold certified – extreme efficiency PSU series with 87-92% efficiency @ 20-100% load to cut down electric cost.
• 24/7 @ 50?: Guaranteed to deliver 750W continuous power.
• Pure aesthetic design with uncompromising performance.
• Proprietary dual ball bearing 14cm flower-shape fan enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions.
• 100% 105? (221?) Japanese made electrolytic capacitors: the foundation of a robust and reliable power source even under the harshest operating environment.
• 105°C (221?) Solid state capacitors not only last longer than electrolytic capacitors but also offer excellent durability and reliability.
• Newly designed Active PFC circuitry provides higher efficiency during low-voltage input.
• Double-forward switching circuitry: compared with traditional circuitry, double-forward switching circuitry offers low power loss and high reliability.
• Unparalleled DC to DC converters for 3.3V and 5V outputs to reach high efficiency.
• 12Vin1: single +12V rail design providing up to 60A.
• FanDelayCool Technology: allows 14cm fan to continue to operate 15-30 sec after system shuts-down to ensure all components are properly cooled.
• Multi-GPU ready: 2 x PCI-E 8pin & 2 x PCI-E 6pin for PCI-Express graphic cards.
• Auto switching circuitry for universal AC input from 90-264V.
• Active Power Factor Correction (PFC) with PF value of 0.95 at full load.
• High reliability: MTBF>120,000 hours.
• DIMENSION: 5.9”(W) x 3.4”(H) x 7.1” (L);150mm(W) x 86mm(H) x 180mm(L)
• Built-in industry grade protections : Over Current, Over Power, Over Voltage, Under Voltage and Short-Circuit protection.
• Safety / EMI Approvals: CE, TUV, FCC, UL, CUL, GOST and BSMI certified.
