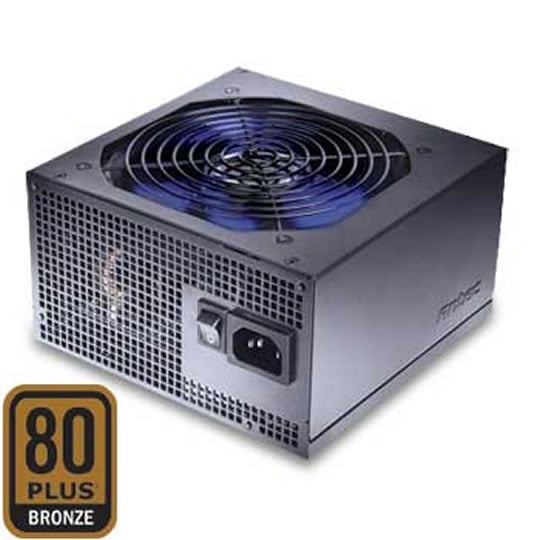

Antec TP-750 Blue TruePower New 750W Modular Power Supply (PSU)
End of Life

Antec TP-750 Blue TruePower New 750W Modular Power Supply (PSU)

750W Antec TruePower New TP-750 Blue, Modular, 82% Eff', 80 PLUS Bronze, SLI/CrossFire, EPS 12V, Quiet Fan, ATX, PSU

Scan Code: LN28586

Manufacturer Code: TP-750 Blue

Customer Reviews and Q&A

Social Media

Product Overview

The Advanced PSU Solution.

New features. Same true power. The TruePower New series by Antec offers users an advanced power supply solution, striking the perfect balance of reliability, efficiency and quality. With DC to DC voltage regulator modules, a 120mm PWM fan, and 80 PLUS® Bronze certification, the TP-750 Blue is the ideal solution for elite system builders and quality-minded enthusiasts alike.

Features

• NVIDIA™ SLI™ - ready certified.
• 80PLUS® Bronze Certified saves energy and lowers your electric bill.
• DC to DC voltage regulator modules for greater system stability.
• 120mm PWM fan runs up to 50% quieter than standard fans.
• Blue internal LED illumination.
• Advanced Hybrid Cable Management improves airflow and reduces clutter.
• Double layer PCB optimizes cooling efficiency and allows for heavy duty components.
• Universal Input and Active Power Factor Correction.
• Supports dual GPUs and dual/quad core CPUs.
• 4 +12V output circuits provide stable power.
• ATX12V v2.3 and EPS12V v2.91
• Industrial grade protection.
• Safety approval: UL, CUL, CE, CB, FCC Class B, TUV, CCC, C-tick, BSMI.
• Weight: 2.3 kg.

Technical Specification

Manufacturer:AntecRail 4 +12V:25 A
Size:ATX v2.3 Rail 5 +12V:N/A
Edition: Rail 6 +12V:N/A
Wattage:750 WRail 7 +12V:N/A
80 PLUS Certification:80 PLUS Bronze Rail 8 +12V:N/A
Max. Efficiency:82 %Max. Combined Output +12V:62 A
ErP / EuP Ready:NoModular:Yes
Cooling:Fan Modular Type:Hybrid Modular
Fans:1 x 120mm
SLI/CrossFire:Yes
Internal +12V Rails:Quad Rail EPS 12V:Yes
Rail 1 +12V:25 AMotherboard Connector:20+4 Pin
Rail 2 +12V:25 AConnectors:1 x 4pin ATX 12V
9 x 4pin Molex
2 x 6+2pin PCI-E Power
1 x 6pin PCI-E Power
1 x 8pin CPU +12V
1 x FDD Power
9 x SATA Power
Rail 3 +12V:25 ADimensions:150 x 86 x 150 mm (WxHxD)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Return to base

DOA Period: 14 days

RTB Period: 24 months

Manufacturer Contact Details

Manufacturer: Antec
