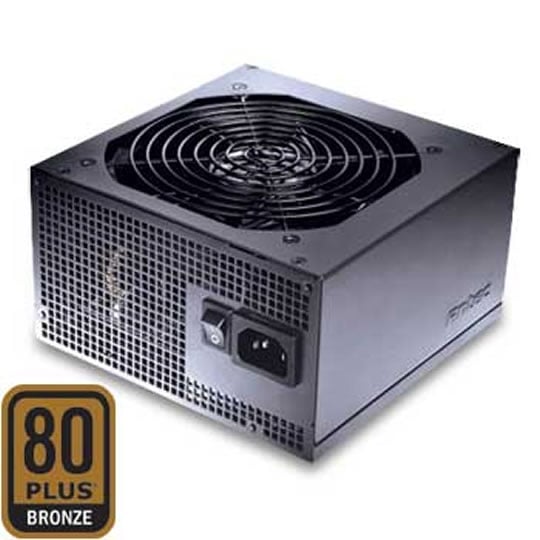

Antec True Power New Continous 750W Modular Power Supply (PSU) DC-DC

0761345-07662-3 GB - 750W Antec True Power New Modular, 80 PLUS Bronze 120mm Quiet Fan SLI/CrossFire, EPS 12V ATX v2.3, PSU

Scan Code: LN28585

Manufacturer Code: 0761345-07662-3 GB

Customer Reviews and Q&A

Social Media

Suggested Replacements

Sort by:

Page style:

Product Overview

The Advanced PSU Solution. Remember this is a Continous PSU at 750W so is equavalent to approx 820W Peak! All Antec PSU's are Continous Power!

TruePower, the original high-performance power supply, has been totally re-engineered to satisfy today's demands for quality, reliability and performance.

Antec's TP-750 offers users its most advanced power supply yet, featuring Japanese brand capacitors for reliability, DC to DC converters for exceptional voltage regulation, a Japanese brand 120mm PWM fan for quiet operation and 80 PLUS® Bronze certification for greater efficiency.

The TP-750 is the ideal solution for power users, elite system builders and quality-minded enthusiasts alike.

Features


NVIDIA™ SLI™ - ready certified
80PLUS® Bronze Certified saves energy and lowers your electric bill
DC to DC voltage regulator modules for greater system stability
120mm PWM fan runs up to 50% quieter than standard fans
Advanced Hybrid Cable Management improves airflow and reduces clutter
Double layer PCB optimizes cooling efficiency and allows for heavy duty components
Universal Input and Active Power Factor Correction
Supports dual GPUs and dual/quad core CPUs
4 +12V output circuits provide stable power
ATX12V v2.3 and EPS12V v2.91
1 x 6 pin and 1 x 8 (6+2) pin PCI-E graphics card connectors for TP-550
2 x 6 pin and 2 x 8 (6+2) pin PCI-E graphics card connectors for TP-650, TP-750 and TP-750 Blue
Industrial grade protection: OVP (Over Voltage Protection), UVP (Under Current Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), and OCP (Over Current Protection)
Safety approval: UL, CUL, CE, CB, FCC Class B, TUV, CCC, C-tick, BSMI
Meets 2010 EUP requirement: 5Vsb < 1W
Weight: 2.3 kg; 5 lbs
Dimensions:
- 3.4" (H) x 5.9" (W) x 5.9" (D)
- 86mm (H) x 150mm (W) x 150mm (D)


INPUT
Voltage: 100 – 240VAC
Frequency Range: 47 Hz to 63 Hz
Current:
TP-750: - 9A @ 100VAC, 5A @ 240VAC
Efficiency: Min 82% at full load
OUTPUT
Voltage: +5V +3.3V +12V1 +12V2 +12V3 +12V4 -12V +5VSB
Max. Load :
TP-750: 25A 25A 25A 25A 25A 25A 0.8A 3A

Technical Specification

Manufacturer:AntecRail 4 +12V:25 A
Size:ATX v2.3 Rail 5 +12V:N/A
Edition: Rail 6 +12V:N/A
Wattage:750 WRail 7 +12V:N/A
80 PLUS Certification:80 PLUS Bronze Rail 8 +12V:N/A
Max. Efficiency:82 %Max. Combined Output +12V:62 A
ErP / EuP Ready:NoModular:Yes
Cooling:Fan Modular Type:Hybrid Modular
Fans:1 x 120mm
SLI/CrossFire:Yes
Internal +12V Rails:Quad Rail EPS 12V:Yes
Rail 1 +12V:25 AMotherboard Connector:20+4 Pin
Rail 2 +12V:25 AConnectors:1 x 4pin ATX 12V
9 x 4pin Molex
2 x 6+2pin PCI-E Power
1 x 6pin PCI-E Power
1 x 8pin CPU +12V
1 x FDD Power
9 x SATA Power
Rail 3 +12V:25 ADimensions:150 x 86 x 150 mm (WxHxD)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 60 months

Type: Return to base

DOA Period: 7 days

RTB Period: 60 months
