Antec SG-650UK 650W Hybrid Modular Power Supply
Delivery
DPD £5.48 Delivered by DPD Wed 27 May. Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout
End of Life

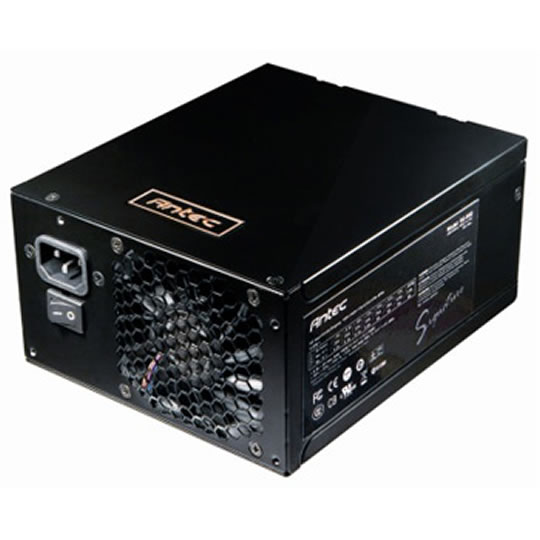

Antec SG-650UK 650W Hybrid Modular Power Supply

SG-650UK - 650W Antec Signature, Hybrid Modular, 80 PLUS Bronze, 1x80mm, ATX, PSU

Finance
Scan Finance

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

Product Overview
The Pinnacle of Power

Designed to appeal to system builders looking for a truly premium power supply, the Signature 650 boasts many cutting-edge features, several of which have never before been offered in a consumer power supply.

The Signature 650 features DC to DC voltage regulator modules which ensure greater system stability, and an 80mm Pulse Width Modulation (PWM) fan which can run up to 50% quieter than standard fans.

Not only does the Signature 650 deliver the latest in stability, reliability, and quiet cooling, it also passes 80 PLUS® Bronze certification, a rare distinction in energy efficiency attained by very few other power supplies.
Features
• NVIDIA™ SLI™-ready certified.
• DC to DC Voltage Regulator Modules ensure supreme system stability.
• 80 PLUS® Bronze Certified – 82% or more efficiency at 20%, 50%, and 100% load.
• 80mm cooling fan uses Pulse Width Modulation (PWM) for whisper-quiet operation.

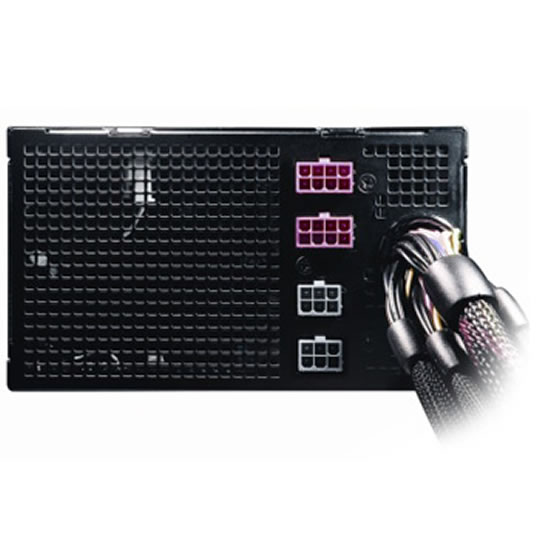

• Advanced hybrid cable management improves airflow and reduces clutter.
• Dual density PC board layout provides better airflow, reduces electrical noise, and allows heavier components.
• Highest quality Japanese fan and capacitors ensure long-term reliability.
• Industrial grade protection circuitry prevents damage resulting from short circuits (SCP), over voltages (OVP), over power (OPP), over temperature (OTP), and over current (OCP).
• Universal Input and Active PFC allows the Signature 650 to operate efficiently on any power grid in the world.
• Safety: UL/CUL, TUV, CE, CB, CCC, FCC Class B, C-Tick.
Technical Specification
General
Manufacturer:
Antec
Size:
ATX
Edition:

Wattage:
650 W
80 PLUS Certification:
80 PLUS Bronze
Max. Efficiency:
82 %
ErP / EuP Ready:
No
Cooling:
Fan
Fans:
  • 1 x 80mm
Internal +12V Rails:
Triple Rail
Rail 1 +12V:
22 A
Rail 2 +12V:
22 A
Rail 3 +12V:
25 A
Rail 4 +12V:
N/A
Rail 5 +12V:
N/A
Rail 6 +12V:
N/A
Rail 7 +12V:
N/A
Rail 8 +12V:
N/A
Max. Combined Output +12V:
43 A
Modular:
Yes
Modular Type:
Hybrid Modular
SLI/CrossFire:
Yes
EPS 12V:
Yes
Motherboard Connector:
20+4 Pin
Connectors:
  • 1 x 4pin ATX 12V
  • 9 x 4pin Molex
  • 1 x 6+2pin PCI-E Power
  • 1 x 6pin PCI-E Power
  • 1 x 8pin CPU +12V
  • 1 x FDD Power
  • 9 x SATA Power
Dimensions:
150 x 86 x 178 mm (WxHxD)
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
24 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
24 months
