Seasonic M12II-520 520W Modular Power Supply (PSU)
End of Life

Seasonic M12II-520 520W Modular Power Supply (PSU)

Images

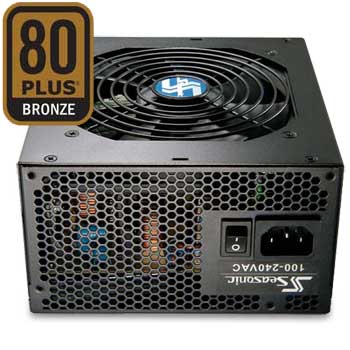

Thumbnail 1 : Seasonic M12II-520 520W Modular Power Supply (PSU)

520W Seasonic M12II-520, Modular, 87% Eff', 80 PLUS Bronze, SLI/CrossFire, EPS 12V, Quiet Fan, ATX, PSU

Scan Code: LN31980

Manufacturer Code: M12II-520

Customer Reviews and Q&A

Social Media

Product Overview

Seasonic introduces the whole new M12II Bronze 520watts, providing consumers better option of performance and energy savings. This model provides superb quality, improved features, and modular cabling for optimal cable management, which is a rare offering in the lower price segment. The new M12II Bronze series is 80 PLUS Bronze certified and employs Active Power Factor Correction (Active PFC) technology. The whole new power supply offerings by Seasonic are designed to deliver more efficiency, performance, and value.

Features

• 80PLUS® Bronze Certified High Efficiency
• Highly Reliable 105°C Japanese Brand Capacitor
• Ample +12V Outputs
• Active Power Factor Correction [99% PF Typical]
• Double Forward Converter Design
• Smart & Silent Fan Control [S2FC]
• 12cm Ball Bearing Cooling Fan
• Soft-Mount Rubber Cushions
• Universal Video Card Support
• All-in-One DC Cabling Design
• Detachable Modular Cables
• Patented Easy Swap Connector
• Universal AC Input [Full Range]
• Ultra Ventilation [Honeycomb Structure]

Technical Specification

Manufacturer:SeasonicRail 4 +12V:N/A
Size:ATX Rail 5 +12V:N/A
Edition:Rail 6 +12V:N/A
Wattage:520 WRail 7 +12V:N/A
80 PLUS Certification:80 PLUS Bronze Rail 8 +12V:N/A
Max. Efficiency:87 %Max. Combined Output +12V:40 A
ErP / EuP Ready:NoModular:Yes
Cooling:Fan Modular Type:Hybrid Modular
Fans:1 x 120mm
SLI/CrossFire:Yes
Internal +12V Rails:Single Rail EPS 12V:Yes
Rail 1 +12V:40 AMotherboard Connector:20+4 Pin
Rail 2 +12V:N/AConnectors:1 x 4+4pin CPU +12V
6 x 4pin Molex
1 x 6+2pin PCI-E Power
1 x 6pin PCI-E Power
1 x 8pin CPU +12V
2 x FDD Power
6 x SATA Power
Rail 3 +12V:N/ADimensions:150 x 86 x 160 mm (WxHxD)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 12 months

Type: Return to base

DOA Period: 28 days

RTB Period: 1 months
