Corsair Builder Series CMPSU-500CXV2UK 500W Power Supply (PSU)
End of Life

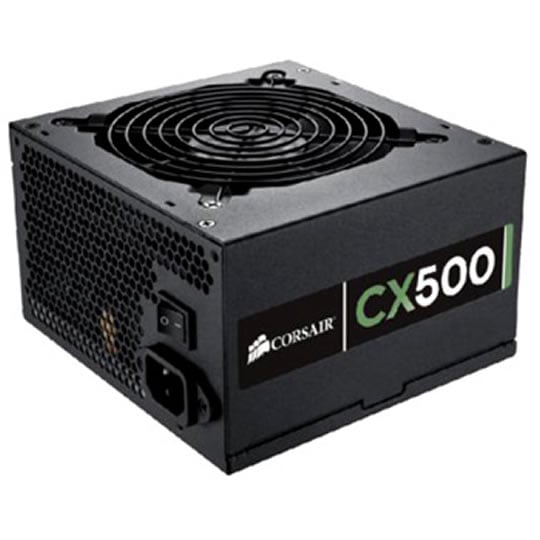

Corsair Builder Series CMPSU-500CXV2UK 500W Power Supply (PSU)

500W Corsair Builder Series CMPSU-500CXV2UK, 80% Eff', Uncertified, Quiet Fan, ATX v2.3, PSU

Scan Code: LN35692

Manufacturer Code: CMPSU-500CXV2UK

Customer Reviews and Q&A

Social Media

Suggested Replacements

Sort by:

Page style:

1

500W Silverstone Strider Essential, 80% Eff', 80 PLUS, SLI/CrossFire, EPS 12V, Quiet Fan, ATX v2.3, PSU
  • High End Rating
  • Rated 4.3 out of 5 by 4 people Customer Review

£33.50 ex VAT

£40.20 inc VAT

Product Overview

Ideal for Home and Office Use
The Corsair Builder Series of PSUs are designed for worry-free compatibility for your home desktop PC system build or upgrade. With features usually reserved for premium power supplies, it’s a great choice for systems where continuous and reliable power delivery and low noise are essential.
Inside you will find a power supply that conforms to universal ATX standards, a power cable, and a clear, detailed Quick Start Guide. Corsair Builder Series power supplies get your system up and running quickly and easily, for years of trouble-free operation.

Features

• It supports the latest ATX12V v2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
• An ultra-quiet 120mm fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.
• Up to 80% energy efficiency means less heat generation and lower energy bills.
• 0.99 Active Power Factor Correction provides clean and reliable power.
• Universal AC input from 90~264V. No more hassle of flipping that tiny red switch to select the voltage input!
• A dedicated single +12V rail offers maximum compatibility with the latest components.
• Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
• Extra long fully-sleeved cables support full tower chassis.
• A two year warranty and lifetime access to Corsair’s legendary technical support and customer service.
• Dimensions: 5.9"(W) x 3.4"(H) X 5.5"(L); 150mm(W) x 86mm(H) x 140mm(L)
• MTBF: 100,000 Hours

Technical Specification

Manufacturer:CorsairRail 4 +12V:N/A
Size:ATX v2.3 Rail 5 +12V:N/A
Edition: Rail 6 +12V:N/A
Wattage:500 WRail 7 +12V:N/A
80 PLUS Certification:Uncertified Rail 8 +12V:N/A
Max. Efficiency:80 %Max. Combined Output +12V:28 A
ErP / EuP Ready:NoModular:No
Cooling:Fan Modular Type:
Fans:1 x 120mm
SLI/CrossFire:No
Internal +12V Rails:Single Rail EPS 12V:No
Rail 1 +12V:28 AMotherboard Connector:20+4 Pin
Rail 2 +12V:N/AConnectors:3 x 4pin Molex
2 x 6+2pin PCI-E Power
1 x 8pin CPU +12V
1 x FDD Power
4 x SATA Power
Rail 3 +12V:N/ADimensions:150 x 86 x 140 (WxHxD)

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Direct

DOA Period: 28 days

RTB Period: 24 months
