GPU - NVIDIA

GeForce GTX 680 - (1536 Cores)

Gainward 4GB GeForce GTX 680 Phantom² NVIDIA Graphics Card - 4260183362524

This item is currently discontinued. Please see suggested replacements below. Further delivery options available in basket

This Product is End of Life

Need Help?

End of Life

Gainward 4GB GeForce GTX 680 Phantom² NVIDIA Graphics Card

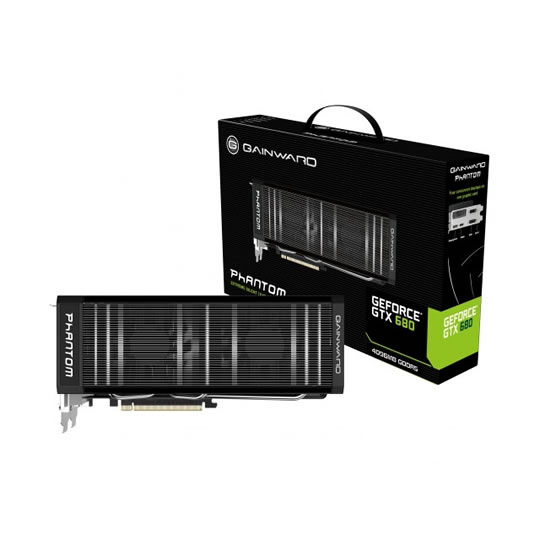

4GB Gainward GTX 680 Phantom² 28nm, PCIe 3.0, 6008MHz GDDR5, GPU 1006MHz, Boost 1058MHz, Cores 1536 : image 1

Click to zoom

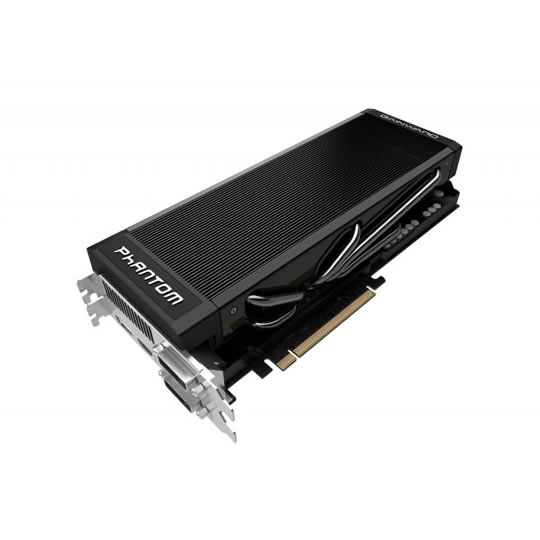

4GB Gainward GTX 680 Phantom² 28nm, PCIe 3.0, 6008MHz GDDR5, GPU 1006MHz, Boost 1058MHz, Cores 1536 : image 2

Click to zoom

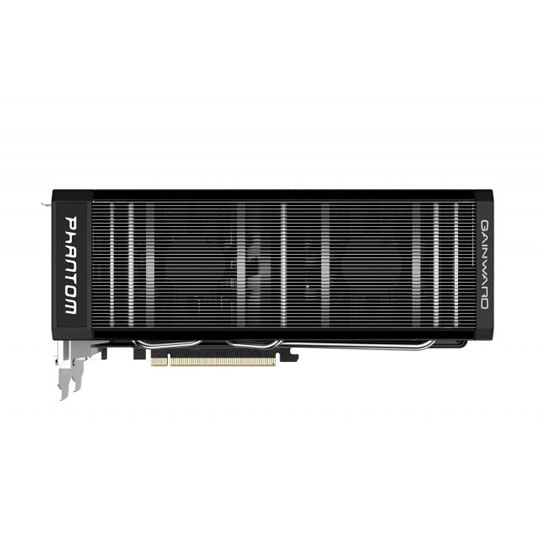

4GB Gainward GTX 680 Phantom² 28nm, PCIe 3.0, 6008MHz GDDR5, GPU 1006MHz, Boost 1058MHz, Cores 1536 : image 3

Click to zoom

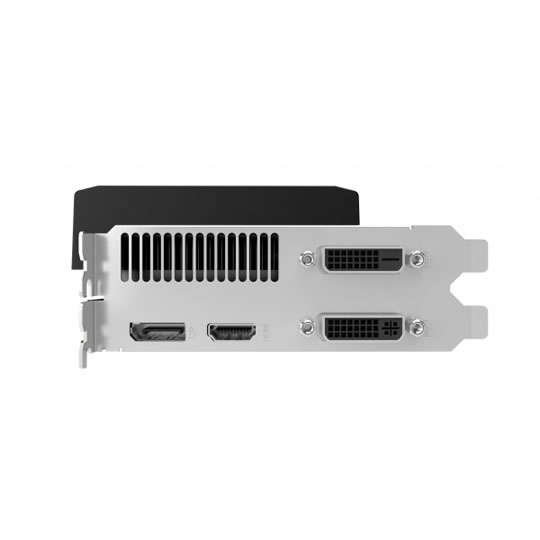

4GB Gainward GTX 680 Phantom² 28nm, PCIe 3.0, 6008MHz GDDR5, GPU 1006MHz, Boost 1058MHz, Cores 1536 : image 4

Click to zoom

Images

Thumbnail 1 : Gainward 4GB GeForce GTX 680 Phantom² NVIDIA Graphics Card

Thumbnail 2 : Gainward 4GB GeForce GTX 680 Phantom² NVIDIA Graphics Card

Thumbnail 3 : Gainward 4GB GeForce GTX 680 Phantom² NVIDIA Graphics Card

Thumbnail 4 : Gainward 4GB GeForce GTX 680 Phantom² NVIDIA Graphics Card

4260183362524 - 4GB Gainward GTX 680 Phantom² 28nm, PCIe 3.0, 6008MHz GDDR5, GPU 1006MHz, Boost 1058MHz, Cores 1536

Scan Code: LN44940

Manufacturer Code: 4260183362524

Scan Rating: This product has been rated as a high-end product

3XS approved components are selected by our enthusiast system builders for use in our award winning systems.

What People Say

Reviews Ask An Owner

Social Media

Facebook

Twitter

Google +1

4260183362524 - 4GB Gainward GTX 680 Phantom² 28nm, PCIe 3.0, 6008MHz GDDR5, GPU 1006MHz, Boost 1058MHz, Cores 1536

Gainward 4GB GeForce GTX 680 Phantom² NVIDIA Graphics Card

Product Overview

Phantom II cooler
Gainward GTX 680 Phantom 4GB, continue the elegant design of the first generation. The new Phantom II comes with brand new fins design (patent pending) that introduces

• better thermal performance
• lower acoustic level
• more solid structure than previous generation.

Features

• Kepler architecture with 4GB on board memory

• NVIDIA GPU Boost

• NVIDIA Adaptive Vertical Sync

• Microsoft DirectX 11 with DirectCompute 5.0 support

• NVIDIA PhysX Technology

• NVIDIA CUDA technology

• NVIDIA 3D Vision Ready

• NVIDIA SLI Ready

• NVIDIA Surround

• PCI Express 3.0 support

• OpenGL 4.2 and OpenCL Support

Technical Specification

Manufacturer:	Gainward	Connectivity:	1 x DisplayPort 1 x Dual Link DVI-D 1 x Dual Link DVI-I 1 x HDMI
Chipset:	GTX 680	Maximum Digital Resolution:	2560x1600
Edition:	Phantom²	Maximum VGA Resolution:	2048x1536
Chipset Features:	DirectCompute Support DisplayPort output support HDMI Output Support Microsoft DirectX 11 Microsoft Windows 7 support NVIDIA 3D-Vision Ready NVIDIA Adaptive Vertical Sync NVIDIA CUDA Technology NVIDIA GPU Boost NVIDIA PhysX Ready NVIDIA SMX Engine NVIDIA Surround Technology OpenCL Support OpenGL 4.2 PureVideo HD	SLI:	Yes
Manufacturing process:	28 nm	SLI Type:	Quad
Cores:	1536	Multi Monitor:	3 displays
Core Clock:	1006 MHz	HDCP Ready:	Yes
Boost Clock:	1058 MHz	Width:	2.5 Slot
Shader Clock:	2012 MHz	CrossFire:	No
Memory:	4GB	Crossfire Type:
Memory Bit Rate:	256 Bit	Low Profile Compatible:	No
Memory Type:	GDDR5	Low Profile Support:	N/A
Memory Clock:	6008 MHz	Package Type:	Retail
Cooling:	Dual Fan	Maximum GPU Power:	195W
Interface:	PCIe 3.0 (x16)	Maximum GPU Temperature:	98 °C

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Return to base

DOA Period: 28 days

RTB Period: 24 months

Manufacturer Contact Details

Manufacturer: Scan

Recommend This Product

To tell a friend about this product please fill out your name and enter their email address.

Your Name: *
Friends Email: *
Send

Tek Spek

GPU - Graphics >> NVIDIA GeForce GTX 680 NVIDIA is today releasing the GeForce GTX 680 graphics card. It has been designed to be the fastest single-GPU (Graphics Processing Unit) card in the world, and this TekSpek explains the technology behind NVIDIA's flagship consumer GeForce product. Read Further >>

Find Similar Products

Find similar products with the same specifications as 4GB Gainward GTX 680 Phantom² 28nm, PCIe 3.0, 6008MHz GDDR5, GPU 1006MHz, Boost 1058MHz, Cores 1536 . Please choose from the list below.

Customer Reviews

Gainward GTX 680 Phantom reviews collected by

8.8 out of 10 - 6 reviews

Ease of installation	10.0
Image quality	10.0
Features	9.5
Compatibility	10.0
Performance	9.8
Value for money	7.8
Overall rating	8.8
	Scores 8.8 out of 10 based on 6 reviews

10 out of 10

Mattâ€™s review of the Gainward GTX 680 Phantom

product

Gainward GTX 680 Phantom 4GB GDDR5 Dual DVI DisplayPort HDMI PCI-E Graphics Card

Matt

Ely

Good Points+: Easy to install, even though it's a big card. Super cool running card, I've had it idling at 29oC and the highest it has hit is 64oC under load in Furmark. Significant performance increase over the GTX580 I had.

Great card for an overclocked system due to the low heat output (internal case temperature is lower than when I was running a GTX580) and lower peak power consumption.
