Hynix 2GB DDR3 PC3-8500 (1066) Single Channel Server Memory - HMT125U7BFR8C-G7T0
End of Life

Hynix 2GB DDR3 PC3-8500 (1066) Single Channel Server Memory

Images

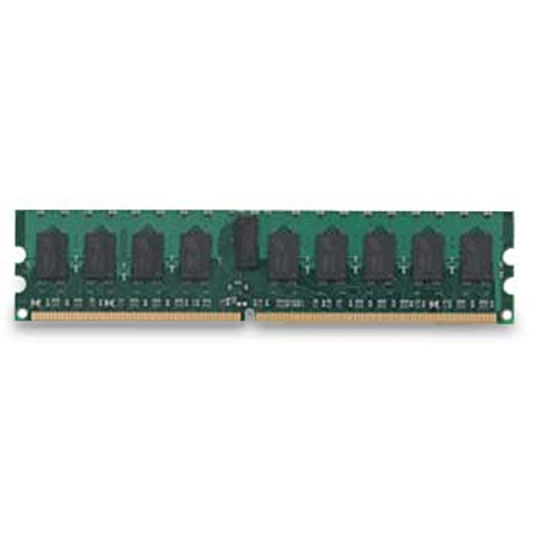

Thumbnail 1 : Hynix 2GB DDR3 PC3-8500 (1066) Single Channel Server Memory

HMT125U7BFR8C-G7T0 - 2GB Hynix Server Memory, DDR3, PC3-8500 (1066MHz), 240 Pin, ECC, Unbuffered, CAS 7-7-7, PC/Apple

Scan Code: LN27473

Manufacturer Code: HMT125U7BFR8C-G7T0

Customer Reviews and Q&A

Social Media

Product Overview

Apple Xserve - Early 2009
Compatible as well as PC

DDR3 SDRAM, which upholds the next generation main memory standard, can transfer data twice as fast as the current generation DRAM. Hynix's DDR3 SDRAM boasts high performance and low power consumption. It supports data transfer rate up to 1.6Gb/s and operate at a voltage as low as 1.5V comparable to DDR2 which a previous version of DDR3. Hynix's DDR3 also featuring functions such as 2Q calibrations, fly-by topology, dynamic on-die-termination and write levelization to ensure signal integrity and thus higher performance.

Features

• VDD=VDDQ=1.5V
• Fully differential clock inputs (CK, /CK) operation
• Differential Data Strobe (DQS, /DQS)
• On chip DLL align DQ, DQS and /DQS transition with CK transition
• DM masks write data-in at the both rising and falling edges of the data strobe
• All addresses and control inputs except data, data strobes and data masks latched on the rising edges of the clock
• Programmable burst length 4/8 with both nibble sequential and interleave mode
• BL switch on the fly
• 8banks
• 8K refresh cycles /64ms
• DDR3 SDRAM Package : JEDEC standard 82ball FBGA(x4/x8) , 100ball FBGA(x16) with support balls
• Driver strength selected by EMRS
• Dynamic On Die Termination supported
• Asynchronous RESET pin supported
• ZQ calibration supported
• TDQS (Termination Data Strobe) supported (x8 only)
• Write Levelization supported
• Auto Self Refresh supported
• 8 bit pre-fetch

Technical Specification

Manufacturer:HynixMemory Speed:PC3-8500 (1066)
Size:2GB Pins:240
Memory Model:Server CAS Latency:7-7-7
MAC Compatible :NoVoltage:N/A
Memory Channel:Cooler:
Memory Type:DDR3 Features:
Memory Type (ECC):ECC Low Profile:No
Memory Type (R/U):Unbuffered

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Return to base

DOA Period: 7 days

RTB Period: 24 months

Manufacturer Contact Details

Manufacturer: Scan

Additional Notes:
Lifetime Manufacturer Warranty Direct
