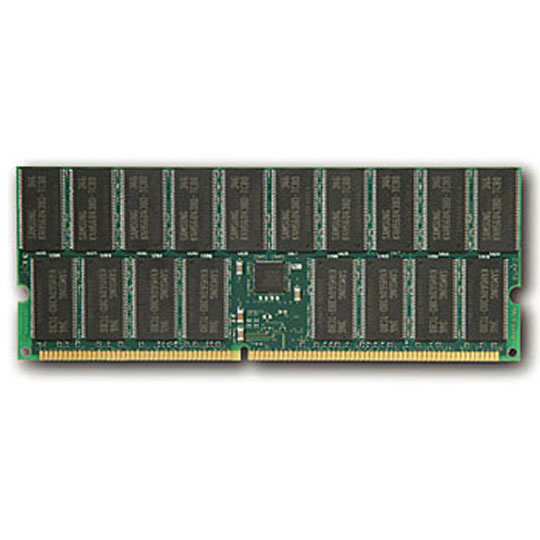

Corsair Memory Server 2GB DDR2 PC2-5300 (667) Single Channel Server
Scan code: LN18546
Manufacturer code: CM72DD2048R-667
End Of Life
Corsair Memory Server 2GB DDR2 PC2-5300 (667) Single Channel Server
2GB Corsair Server, DDR2 PC2-5300 (667), ECC Registered, CAS 5-5-5-15
Scan code:
LN18546
Manufacturer code:
CM72DD2048R-667
This product is no longer available to purchase.
Email me when the availability or price changes
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
The CM72DD2048R is a DDR2 Dual Inline Memory Module (DIMM), designed for applications in which both per formance and density are critical. This DIMM includes Error Checking and Correcting (ECC) for maximum reliability, and has registered address and control signals to enable fully confi gured systems. These modules are constructed using 1 GBit SDRAMs, and are fully compliant with JEDEC specifi cations.
These DIMMs are constructed using 128MB x 8 SDRAMs in BGA packages. The module also includes an EEPROM to support Serial Presence Detect (SPD) requirements. Decoupling capacitors are mounted on the printed circuit board for each SDRAM device, and On-Die Termination is prodived on all lines. The synchronous design of these Corsair SDRAM DIMMs allows precise cycle control with the use of the system clock. I/O transactions are possible on every clock cycle. The high clock frequency and high density of this device enable a high level of performance to be achieved in advanced workstations and servers.
Features • 240-pin, dual in-line memory module (DIMM)
• Ultra high density using 512 MBit SDRAM devices
• ECC 1-bit error detection and correction
• Registered inputs with one-clock delay
• Phase-locked loop (PLL) clock driver to reduce loading
• 128 MB x 72
• JEDEC standard 1.8V I/O (SSTL_18-compatible)
• Four-bit prefetch architecture
• Off -chip driver (OCD) impedance calibration
• On-die termination (ODT)
• Low profile (1.2"), ideal for 1U rack mount servers
These DIMMs are constructed using 128MB x 8 SDRAMs in BGA packages. The module also includes an EEPROM to support Serial Presence Detect (SPD) requirements. Decoupling capacitors are mounted on the printed circuit board for each SDRAM device, and On-Die Termination is prodived on all lines. The synchronous design of these Corsair SDRAM DIMMs allows precise cycle control with the use of the system clock. I/O transactions are possible on every clock cycle. The high clock frequency and high density of this device enable a high level of performance to be achieved in advanced workstations and servers.
Features • 240-pin, dual in-line memory module (DIMM)
• Ultra high density using 512 MBit SDRAM devices
• ECC 1-bit error detection and correction
• Registered inputs with one-clock delay
• Phase-locked loop (PLL) clock driver to reduce loading
• 128 MB x 72
• JEDEC standard 1.8V I/O (SSTL_18-compatible)
• Four-bit prefetch architecture
• Off -chip driver (OCD) impedance calibration
• On-die termination (ODT)
• Low profile (1.2"), ideal for 1U rack mount servers
