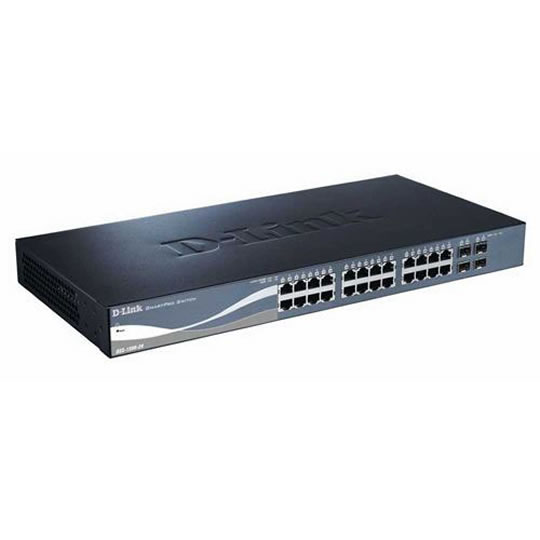

D-Link DGS-1500-28P 24-port 10/100/1000 + 4-port SFP Gigabit SmartPro

Product Overview D-Link's DGS-1500 Series SmartPro switches are designed for businesses which require functions such as L3 Static Routing and Single IP Management (Virtual Stacking) without upgrading to a managed switch. This series integrates advanced management and security functions that are similar to those of a managed switch, but less complex. The switches feature D-Link Green™ 3.0 technology which enables significant power savings. Additionally, the DGS-1500-28P1's 10/100/1000 Mbps ports are PoE-enabled, offering ease-of-use and green features like Time-based PoE, which enables the power to the port to be shut off at a predetermined time. Compliant with 802.3af and 802.3at, these switches are capable of feeding power to devices of up to 30 Watts. Management options include SNMP, Web Management, SmartConsole Utility, and Compact CLI. The series also supports ACL filtering and D-Link's Safeguard Engine to protect the network. DGS-1500-28 feature a fanless design. The fanless design allows them to emit less heat and noise than a standard switch, making them suitable for office environments. The DGS-1500-28P feature smart fans. Using a thermal sensor that can detect temperature change, the smart fans can react accordingly by utilising different fan speeds for different temperatures. Features Green Technology
• IEEE 802.3az EEE
• Power saving via LED and Port shutoff
• Power saving via Port Standby
• Power saving via System Hibernation
• Power saving via Cable Length detection
• Power saving via Link Status detection
• Time-based PoE (DGS-1500-28P1 only)

Security Features
• Access Control List secures network
• D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding
• Port Security supports 64 MACs per port
• ARP Spoofing Prevention
• SSL

Intuitive Management
• SmartConsole utility or Web-based GUI
• Single IP Management (Virtual Stacking)
• Built-in SNMP MIB for remote NMS (D-View 6.0)

VoIP Deployment
• Highest priority for VoIP services
• Auto Voice VLAN

QoS (Quality of Service)
• Supports IEEE 802.1p QoS, up to four Priority Queues per port
• Bandwidth Control
• DSCP

Advanced Features
• Layer 3 Static Routing
• IPv6 support2
• Auto Surveillance VLAN
• Loopback Detection automatically disables a port or VLAN when a loop is detected
• Cable Diagnostics allows administrators to determine cable status
• Configurable MDI/MDIX
• LLDP/LLDP-MED

Trap & Logs
• SNMP Trap
• Trap for SmartConsole Utility

Online Help
• Link to local support website
• Online User Guide
