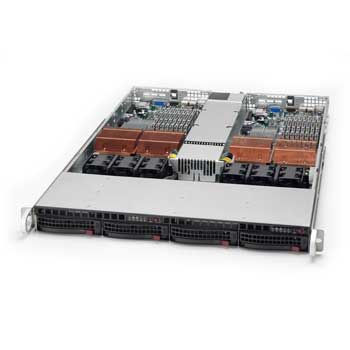

1U Rackmount Supermicro 6015TC-TB, i5100, S771 x 2, PCI-E (x16) LP, DDR2 667 ECC-R, 2 x 3.5" SATA
Delivery
DPD £11.50 Delivered by DPD Wed 02 Sep. Delivered to your specified address. Receive SMS with one-hour delivery window.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

1U Rackmount Supermicro 6015TC-TB, i5100, S771 x 2, PCI-E (x16) LP, DDR2 667 ECC-R, 2 x 3.5" SATA

1U Rackmount Supermicro 6015TC-TB, i5100, S771 x 2, PCI-E (x16) LP, DDR2 667 ECC-R, 2 x 3.5" SATA

Finance
Scan Finance More options

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

Product Overview
Two systems (nodes) in a 1U form factor. Each node supports the listed specs

Designed for optimal performance, the dual-processor SuperServer 6015 series support the maximum frequency quad-core Xeon® 5400/5300 and dual-core Xeon® 5200/5100 Series processors in a high-density 1U form-factor. The 6015 SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
Features
Management Software
• Optional IPMI (Intelligent Platform Management Interface) v1.5 / 2.0
• Super Doctor III
• Watch Dog
• NMI

Power Configurations
• ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Power-on mode for AC power recovery

PC Health Monitoring
CPU

• Monitors for CPU Cores,+1.5V, +3.3V, +5V, ±12V, +5 Stdby, VBAT
• CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN
• Total of three 4-pin fans
• 3x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control

Temperature
• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x Fan Connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED
• CPU / System Overheat LED
• Suspend-state Indicator LED

Other Features
• SDDC Support
Technical Specification
General
Manufacturer:
Supermicro
Form Factor:
1U Rackmount
CPU Included:
No
CPU Type:
1333MHz
Core:

No. of Threads:
N/A
CPU Model:

Clock Speed:
N/A
Burst Frequency:
N/A
CPU Socket:
771 x 2
Chipset:
Intel 5100
Memory Type:
DDR2
Memory Included:
No
Memory:
N/A
Memory Type (ECC):
ECC
Memory Type (R/U):
Registered
Memory Speed (Mhz):
  • DDR2 - 533
  • DDR2 - 667
Max. Memory Capacity:
48GB
On Board VGA:
No
PSU Wattage:
780 W
Graphics Interface:
PCIe (x16) LP
SLI:
No
Expansion Slots:
  • 1 x PCIe x16 (LP)
SATA:
SATA II 3Gb/s
Hard Drive Included:
No
Hard Drive Size:
N/A
RAID:
SATA
Internal I/O:
  • 2 x 24pin (V)
  • 3 x 4pin Fan (V)
  • 1 x 4pin Molex (V)
  • 6 x Memory Slots (DDR2)
  • 4 x SATA II - 3Gb/s
  • 2 x USB 2.0 Header
Front Panel:
  • 1 x Hard drive activity LED
  • 2 x Network activity LEDs
  • 1 x Power LED
  • 1 x Power On/Off button
  • 1 x System Overheat LED
  • 1 x System Reset button
Back Panel:
  • 2 x 10/100/1000 (LAN)
  • 1 x D-Sub
  • 1 x Serial (COM)
  • 2 x USB 2.0
Processor Graphics:
N/A
Base GPU Speed:
N/A
Max. GPU Speed:
N/A
Max. GPU Resolution:

Drive Bays:
  • 2 x 3.5" SATA Hot-swap
Optical Drives:
None
Keyboard / Mouse:
No
Remote Control:
No
Colour:
Black
VESA Mountable:

Dimensions:
437 x 43 x 705 (WxHxD)
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
