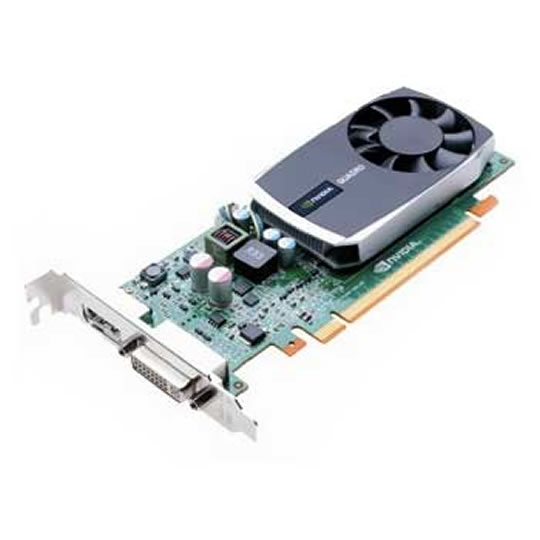

Quadro 600 Low Profile 1GB NVIDIA - PNY Graphics Card
Scan code: LN36556
Manufacturer code: VCQ600-BLK-1
End Of Life
Quadro 600 Low Profile 1GB NVIDIA - PNY Graphics Card
1GB PNY Nvidia Quadro 600, PCI-E 2.0 (x16), 128Bit GDDR3, DisplayPort/ Dual Link DVI-I, OEM
Scan code:
LN36556
Manufacturer code:
VCQ600-BLK-1
This product is no longer available to purchase.
Email me when the availability or price changes
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
- 3XS Approved Custom picked by our award winning 3XS Systems team.
Product Overview
Low-profile, power-efficient, professional graphics solution
Built for Professionals™, and certified on leading CAD and DCC applications, NVIDIA Quadro 600 by PNY delivers the best performance per watt in its class, maximizing productivity while conserving energy. Designed for both small form factor and full height workstations, the NVIDIA Quadro 600 by PNY delivers advanced capabilities, allowing you to design, iterate and deliver higher quality results in less time.
• Frame Buffer Memory: 1GB DDR3
• Memory Interface: 128-bit
• Memory Bandwidth: 25.6 GB/s
• CUDA Parallel Processing Cores: 96
• Display Connectors: DVI-I (1), DP (1)
• Max Power Consumption: 40 W
• Graphics Bus: PCI Express 2.0 x16
• Form Factor: Low Profile - 2.731" H x 6.6" L Single Slot
• Thermal Solution: Active
• 3D Vision Pro: Support via USB
Which PNY Professional Graphics Solution is right for your applications? Click here for PNY recommendations Features Next-Generation NVIDIA® CUDA™ Architecture
Breakthrough NVIDIA Fermi architecture incorporates CUDA parallel computing capabilities and advanced visualization to deliver performance that greatly accelerates professional workflows.
NVIDIA® Scalable Geometry Engine™
Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.
NVIDIA® Parallel DataCache™
Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exceptional throughput, accelerating features such as real-time ray tracing, physics and texture filtering.
NVIDIA® GigaThread™ Engine
Provides up to 10x faster context switching compared to previous generation architectures, concurrent kernel execution, and improved thread block scheduling.
Fast 3D Texture Transfer
Fast transfer and manipulation of 3D textures resulting in more interactive visualization of large volumetric datasets.
Hardware 3D Window Clipping
Hardware accelerated clip regions (data transfer mechanism between a window and the frame buffer) improve overall graphics performance by increasing transfer speed between color buffer and frame buffer.
Unified Driver Architecture (UDA)
The NVIDIA UDA guarantees forward and backward compatibility with software drivers. Simplifies upgrading to a new solution because all Quadro products work with the same driver software.
Full-Scene Antialiasing (FSAA)
Up to 64X FSAA dramatically reduces visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes.
GPU Tessellation with Shader Model 5.0
Quadro Tessellation Engines automatically generates finely detailed geometry, for cinematic quality environments and scenes, without sacrificing performance.
16K Texture and Render Processing
The ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.
NVIDIA High Precision High Dynamic Range (HDR) Technology
Sets new standards for image clarity and quality through floating point capabilities in shading, filtering, texturing, and blending. Enables unprecedented rendered image quality for visual effects processing.
GPU Tessellation with Shader Model 5.0
Quadro Tessellation Engines automatically generates finely detailed geometry, for cinematic quality environments and scenes, without sacrificing performance.
High-Quality Display Connectors
Drives ultra-high-resolution panels, producing phenomenal photorealistic image quality from a range of display connectors. Support two active connectors including, dual-link DVI with up to 3840 x 2400 @ 24Hz on each panel, DisplayPort with up to up to 2560 x 1600, or HDMI for integrated audio and video thru the GPU.
30-Bit Color Fidelity
30-bit color fidelity (10-bits per color) enables billions rather than millions of color variations for rich, vivid image quality with the broadest dynamic range.
OpenGL Quad Buffered Stereo Support
OpenGL Quad Buffered Stereo offers professional applications the capability of smooth and immersive 3D Stereo experience.
Programming the CUDA Parallel Computing Architecture
General purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA is accelerating techniques like ray tracing, video and image processing, and computation fluid dynamics.
Cg Programming
Programmable GPU leverages Cg high-level, open-standard shading language to enable the creation and integration of real-time photorealistic effects into 3D models, scenes and designs.
Microsoft Windows 7 Support
Take advantage of all the new and compelling features included with Windows 7, delivering unprecedented application performance, advanced visual realism, and premium reliability with superior application compatibility on mobile and desktop workstations.
Shader Model 5.0 Programmability
Infinite length vertex programs and dynamic flow control remove the previous limits on OpenGL and DirectX shader programs, delivering sophisticated effects never before imagined.
NVIDIA Graphics API Extensions
NVIDIA provides a set of extensions to standard graphics APIs for Linux and Windows, enabling applications to take maximum advantage of state-of-the-art GPU capabilities.
NVIDIA® Application Acceleration Engines Support
Supercharge application performance and capabilities with highly optimized software modules, including SceniX and OptiX for advanced creative and investigative possibilities.
NVIDIA Mosaic Technology
NVIDIA® Mosaic Technology enables transparent scaling of any application across up to 16 display channels, while delivering full performance.
nView Multi-Display Technology
The NVIDIA® nView™ advanced Display Software delivers maximum flexibility for single-large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.
Compatible with Industry Standard Architectures
Compatible with Microsoft and Linux operating systems, as well as Intel and AMD x86 32- and 64-bit microprocessor architectures.
PCI Express 2.0 Compliant
Doubles the data transfer rate up to 5 GT/sec per lane for an aggregate bandwidth of 16 GB/sec bi-directional (8 GB/sec in each direction).
Ultra-Quiet Design
Acoustics lower than 28db for an ultra-quiet desktop environment.
