Corsair Memory Server 1GB DDR2 PC2-5300 (667) Single Channel Server
Scan code: LN15753
Manufacturer code: CM72FB1024-667
End Of Life
Corsair Memory Server 1GB DDR2 PC2-5300 (667) Single Channel Server
1GB Corsair Server, DDR2 PC2-5300 (667), ECC Registered/Fully buffered,
Scan code:
LN15753
Manufacturer code:
CM72FB1024-667
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview

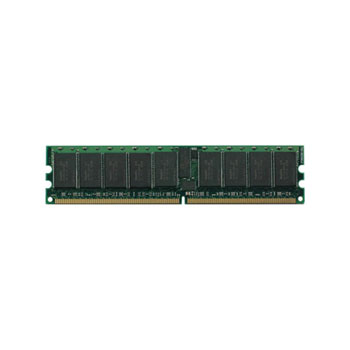

The CM72FB1024 is a DDR2 Fully Buffered Dual Inline Memory Module (FB-DIMM), designed for applications in which both per-formance and density are critical. This DIMM includes Error Checking and Correcting (ECC) for maximum reliability, and has an Advanced Memory Buffer (AMB) for data, address and control signals to enable fully configured systems. These modules are constructed using 512 MBit SDRAMs, and are fully compliant with JEDEC specifications.
These DIMMs are constructed using 64MB x 4 SDRAMs in BGA packages. The module also includes an EEPROM to support Serial Presence Detect (SPD) requirements. Decoupling capacitors are mounted on the printed circuit board for each SDRAM device, and On-Die Termination is provided on all lines. The synchronous design of these Corsair SDRAM DIMMs allows precise cycle control with the use of the system clock. I/O transactions are possible on every clock cycle. The high clock frequency and high density of this device enable a high level of performance to be achieved in advanced workstations and servers.
Features • 240-pin, dual in-line memory module (DIMM)
• Ultra high density using 512 MBit SDRAM devices
• CRC and ECC error detection and correction
• Advanced Memory Buffer (AMB)
• 128 MB x 72
• JEDEC standard1.5V high speed differential point-to-point link
• Four-bit prefetch architecture
• Off-chip driver (OCD) impedance calibration
• On-die termination (ODT)
• Low profile (1.2”), ideal for 1U rack mount servers
These DIMMs are constructed using 64MB x 4 SDRAMs in BGA packages. The module also includes an EEPROM to support Serial Presence Detect (SPD) requirements. Decoupling capacitors are mounted on the printed circuit board for each SDRAM device, and On-Die Termination is provided on all lines. The synchronous design of these Corsair SDRAM DIMMs allows precise cycle control with the use of the system clock. I/O transactions are possible on every clock cycle. The high clock frequency and high density of this device enable a high level of performance to be achieved in advanced workstations and servers.
Features • 240-pin, dual in-line memory module (DIMM)
• Ultra high density using 512 MBit SDRAM devices
• CRC and ECC error detection and correction
• Advanced Memory Buffer (AMB)
• 128 MB x 72
• JEDEC standard1.5V high speed differential point-to-point link
• Four-bit prefetch architecture
• Off-chip driver (OCD) impedance calibration
• On-die termination (ODT)
• Low profile (1.2”), ideal for 1U rack mount servers
