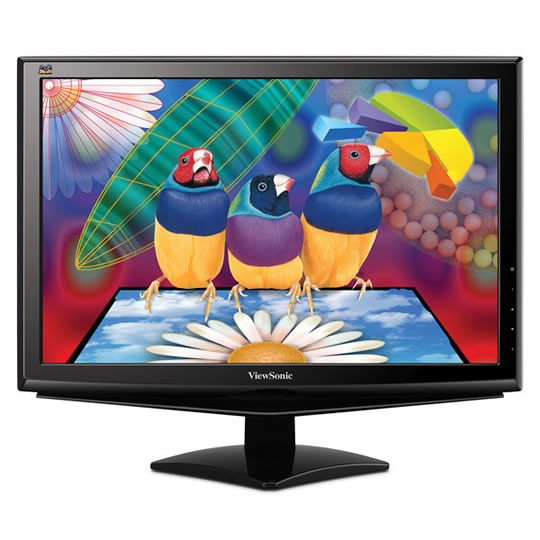

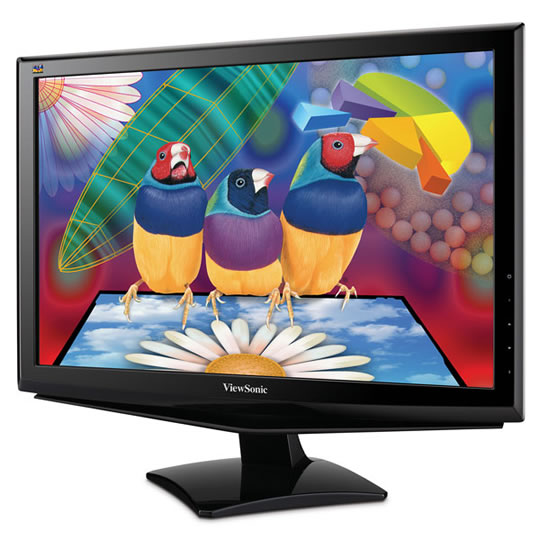

Viewsonic 19" VA1948M-LED Widescreen LED Monitor
Scan code: LN41086
Manufacturer code: VA1948M-LED
End Of Life
Viewsonic 19" VA1948M-LED Widescreen LED Monitor
19" Viewsonic VA1948M-LED Ultra Thin LED Monitor, 1440x900, 5ms, 250cd/m², 10000000:1, Speakers
Scan code:
LN41086
Manufacturer code:
VA1948M-LED
This product is no longer available to purchase.
Email me when the availability or price changes
Product Overview
ViewSonic’s new VA1948m-LED features an LED backlight 19" thin bezel widescreen monitor with integrated speakers. Environmentally friendly mercury-free VA1948m-LED offers full HD 1440x900 resolution, 10,000,000:1 MEGA dynamic contrast ratio, DVI and VGA inputs, 5ms response time, VESA mountable glossy finish design. The aspect ratio adjustment feature automatically senses the input signal and will not stretch a 4:3 signal but instead will position the image in the middle of the screen with side bars. ENERGY STAR® 5.0 & TCO5.1 certification, the industry’s best pixel performance policy, and energy saving Eco-mode make VA1948m-LED a great long-term investment.
• 48cm / 19” 16:10 Wide Screen, Auto-switch of Corresponding Displaying Ratio, 1440x900 High Quality Resolution.
• Zero-mercury Production and Zero Electromagnetic Wave, the New Environmental Protection Concept of Displayer.
• 10,000,000:1 High Dynamic Contrast Ratio Provides Clear and Sharp Image Quality.
• Epeat Silver & Energy Star 5.0 & TCO 5.1 Qualified.
• ECO MODE Energy-saving Mode. Features LCD:
Size: 48cm/19" Wide Colour a-Si TFT Active Matrix LCD 16:10 aspect ratio.
Optimum Resolution: 1440 × 900.
Brightness (cd/m²): 250 (Typical).
Contrast Ratio (Typ.): 1,000:1.
Dynamic Contrast Ratio: ≧10,000,000:1.
Viewing Angle (CR≧10 / CR≧5): 170° (H), 160° (V).
Response Time (ms): 5 ms.
Panel Surface: Anti-Glare, Hard coating(3H).
Colour Support (Millions of colours): 16.7 M.
INPUT:
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p).
Digital: DVI-D (TMDS, 100 ohms)
Sync: Separate.
Frequency (Fh / Fv): 24–82kHz / 50–75Hz. (VGA)
COMPATIBILITY:
PC: VGA up to 1440 × 900 Non Interlaced.
Mac: Mac OS up to 1440 × 900.

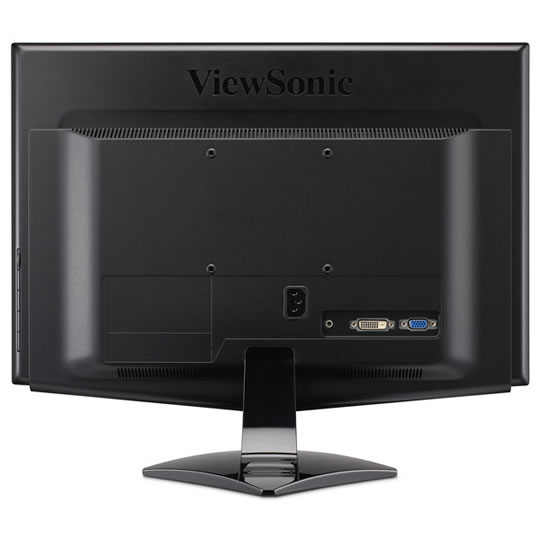

CONNECTOR:
Analogue: 1×15 pin mini D-sub.
Digital: DVI-D x 1.
Audio: 3.5mm Mini phone Jack.
Power: Internal Power Board, 3-pin plug x1.
SPEAKERS: 1 W x 2.
POWER:
Voltage: AC 100-240V (Universal); 50/60 Hz (Switch).
Consumption (W): 18 W Typical.
Save mode (W): ±0.3W.
ERGONOMICS:
Tilt: 20 ~ -5 degrees.
OPERATING CONDITIONS:
Temperature: 0 - 40 (°C) / 32 - 104 (°F).
Humidity (non condensed): 20 - 90 (%).
Net WEIGHT with Stand: 3.42 kg / 7.54 lb.
Physical DIMENSIONS (WxHxD) with stand: 456 x 378 x 220.01 (mm) / 17.5 x 14.8 x 7.5 (in).
REGULATIONS: CE, CB, WEEE, RoHS, REACH SVHC List, TCO5.1, Energy Star 5.0 ,Windows XP/ Vista premium, Window7, Nemko ERGO, GOST-R+Hygienic, UkrSEPRO, ErP.
WALL MOUNT (mm):
VESA® Mount Compliant: 100mm × 100mm.
• 48cm / 19” 16:10 Wide Screen, Auto-switch of Corresponding Displaying Ratio, 1440x900 High Quality Resolution.
• Zero-mercury Production and Zero Electromagnetic Wave, the New Environmental Protection Concept of Displayer.
• 10,000,000:1 High Dynamic Contrast Ratio Provides Clear and Sharp Image Quality.
• Epeat Silver & Energy Star 5.0 & TCO 5.1 Qualified.
• ECO MODE Energy-saving Mode. Features LCD:
Size: 48cm/19" Wide Colour a-Si TFT Active Matrix LCD 16:10 aspect ratio.
Optimum Resolution: 1440 × 900.
Brightness (cd/m²): 250 (Typical).
Contrast Ratio (Typ.): 1,000:1.
Dynamic Contrast Ratio: ≧10,000,000:1.
Viewing Angle (CR≧10 / CR≧5): 170° (H), 160° (V).
Response Time (ms): 5 ms.
Panel Surface: Anti-Glare, Hard coating(3H).
Colour Support (Millions of colours): 16.7 M.
INPUT:
Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p).
Digital: DVI-D (TMDS, 100 ohms)
Sync: Separate.
Frequency (Fh / Fv): 24–82kHz / 50–75Hz. (VGA)
COMPATIBILITY:
PC: VGA up to 1440 × 900 Non Interlaced.
Mac: Mac OS up to 1440 × 900.
CONNECTOR:
Analogue: 1×15 pin mini D-sub.
Digital: DVI-D x 1.
Audio: 3.5mm Mini phone Jack.
Power: Internal Power Board, 3-pin plug x1.
SPEAKERS: 1 W x 2.
POWER:
Voltage: AC 100-240V (Universal); 50/60 Hz (Switch).
Consumption (W): 18 W Typical.
Save mode (W): ±0.3W.
ERGONOMICS:
Tilt: 20 ~ -5 degrees.
OPERATING CONDITIONS:
Temperature: 0 - 40 (°C) / 32 - 104 (°F).
Humidity (non condensed): 20 - 90 (%).
Net WEIGHT with Stand: 3.42 kg / 7.54 lb.
Physical DIMENSIONS (WxHxD) with stand: 456 x 378 x 220.01 (mm) / 17.5 x 14.8 x 7.5 (in).
REGULATIONS: CE, CB, WEEE, RoHS, REACH SVHC List, TCO5.1, Energy Star 5.0 ,Windows XP/ Vista premium, Window7, Nemko ERGO, GOST-R+Hygienic, UkrSEPRO, ErP.
WALL MOUNT (mm):
VESA® Mount Compliant: 100mm × 100mm.
