Gigabyte 1536MB GeForce GTX 580 Super Overclock NVIDIA Graphics Card - GV-N580SO-15I
End of Life

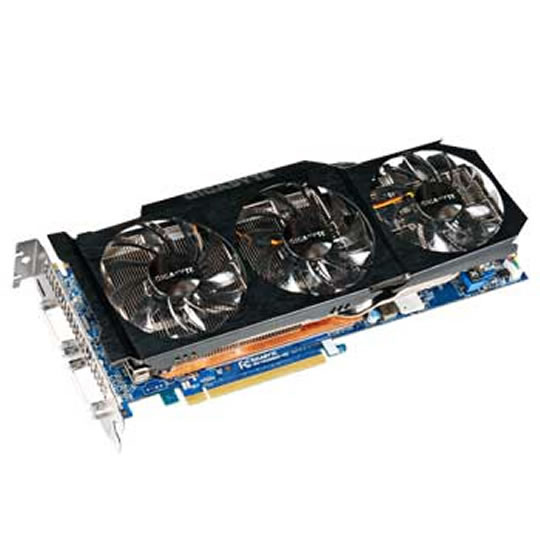

Gigabyte 1536MB GeForce GTX 580 Super Overclock NVIDIA Graphics Card

GV-N580SO-15I - 1536MB Gigabyte GTX 580 Super Overclock, 40nm, 4100MHz GDDR5, GPU 855MHz, Shader 1710MHz, 512 Cores

Scan Code: LN39235

Manufacturer Code: GV-N580SO-15I

Customer Reviews and Q&A

Social Media

Product Overview

Super Overclock Series™
Serious gamers require serious gear. That's why Gigabyte developed the Super Overclock Series. All of the GPUs in these graphics cards have been cherry-picked for top performance, efficiency and reliability. Their innovative GPU Gauntlet™ Sorting selection process ensures that only the highest-performing GPU processors are used in these graphics cards. Coupled with their Ultra Durable VGA boards, users can rest assured that the Super Overclock Series graphics cards won't let them down as they step onto the digital battleground.

Features

• Ultra Durable VGA+
• GPU Gauntlet™ Sorting
• WindForce 3X - Vapor chamber-Outward Inclined
• PhysX Technology
• CUDA Technology
• SLI™ Technology
• Microsoft Window7
• RoHS Compliant

Technical Specification

Manufacturer:GigabyteInterface:PCIe 2.0 (x16)
Chipset:GTX 580 Connectivity:2 x DVI-I
1 x mini HDMI
Edition:Super Overclock Maximum Digital Resolution:
Manufacturing process:40 nmMaximum VGA Resolution:
Cores:512 SLI:3 Way
Streams:N/AMulti Monitor:
Core Clock:855 MHzHDCP Ready:Yes
Boost Clock:N/AWidth:Dual Slot
Shader Clock:1710 MHzCrossfire:
Memory:1536MB Low Profile Compatible:No
Memory Bit Rate:384 BitLow Profile Support:N/A
Memory Type:GDDR5 Package Type:Retail
Memory Clock:4100 MHzMaximum GPU Power:244W
Cooling:Tri Fan Maximum GPU Temperature:

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 36 months

Type: Return to base

DOA Period: 28 days

RTB Period: 36 months

Manufacturer Contact Details

Manufacturer: Scan
