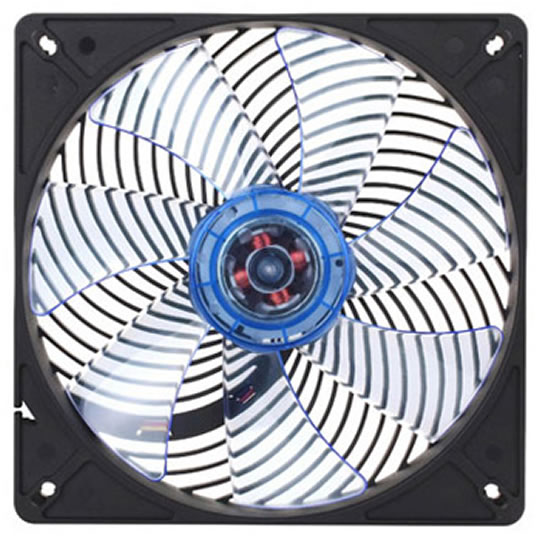

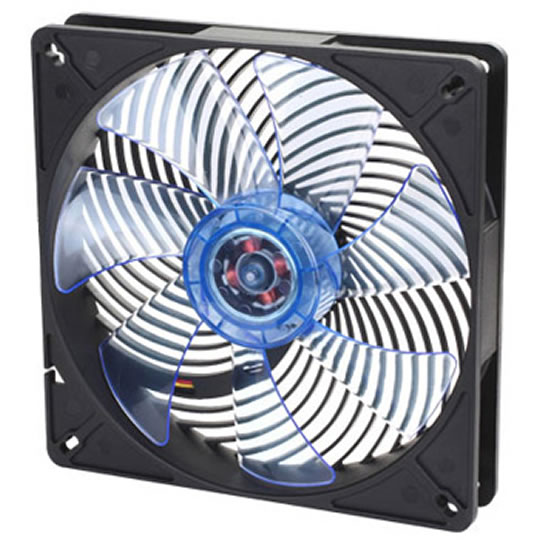

Silverstone SST-AP141-UV Quiet Air Penetrator Fan Fluid Dynamic Bearing

Product Overview Traditional computer fans are made to expel air, so for years, airflow was the most important rating that determines cooling efficiency as most fans are used as exhausts. SilverStone created Air Penetrator fan specifically designed for intake fan applications, where airflow rating is not a priority. The design goal for Air Penetrator is to focus airflow into a column that can be channeled through various obstacles inside the modern computer case for more efficient cooling performance. Compared with traditional fans, where airflow spreads outward and further looses focus with resistance added (e.g. filters, fan guards, etc…), Air Penetrator fan’s unique blade and grille designs can create enough pressure to push air as far as 1 meter away with minimal fan speed and noise. This unmatched efficiency makes Air Penetrator ideal not only as intake case fan, but also perfect for high density heatsinks and radiators.

• Industry leading air channeling fan.
• Integrated air channeling grille double as fan guard to reduce overall size.
• Low power consumption.
• The Fluid Dynamic Bearing (FDB) for high reliability.

Features Model No.
SST-AP141

Colour
Transparent blue UV fan blades, black frame

Beraing
Fluid dynamic bearing

Rated Voltage
12V DC

Start Voltage
5V DC

Rated Current
Max 0.22A (Actual) 0.2A

Rated Power
Max 2.64W (Actual)2.4W

Speed
1500 rpm@12V / 1000 rpm@7V / 700 rpm@5V

Effective Airflow Range
1 meter@5V / 1.2 meter@7V / 2 meter@12V

Airflow
28.26 CFM(5V) / 41.09 CFM(7V) / 64.34 CFM(12V)

Diameter
139mm

Static Pressure
0.39 mmH2O(5V) / 0.73 mmH2O(7V) / 1.55 mmH2O(12V)

Air Speed
1m/s(5V)/ 1.5m/s(7V)/ 2.3m/s(12V)

Noise Level
18 dB(A)(5V) / 20.9 dB(A)(7V) / 30.1 dB(A)(12V)

Noice Reduction
Includes two speed reduction cables

Life Time
50000 hours

Dimension
139mm (L) x 139mm (W) x 25mm (H)
