Corsair SP120 Fan - Quiet Edition

120mm Corsair Air Series SP120 Quiet Edition, High Pressure, 1450rpm, 37.85CFM, 23dB, 3-Pin, Single Pack
MORE INFO

MORE INFO

Scan code: LN44581 Manufacturer code: CO-9050005-WW

End of life

This product is no longer available to purchase.

Email me when the availability or price changes

SCANPROTECT Protect against installation damage for 28 days.
48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
3XS Approved Custom picked by our award winning 3XS Systems team.

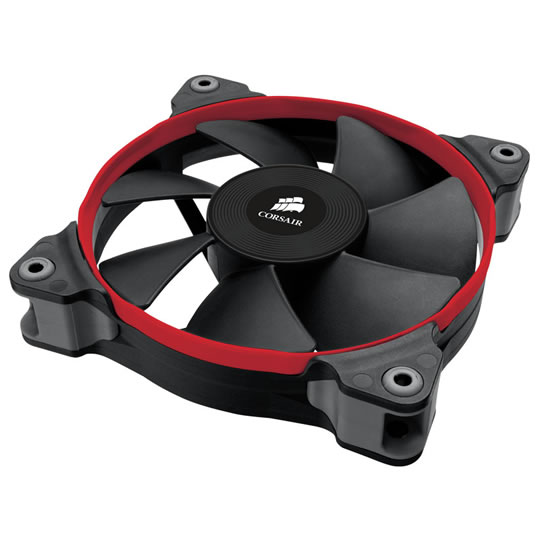

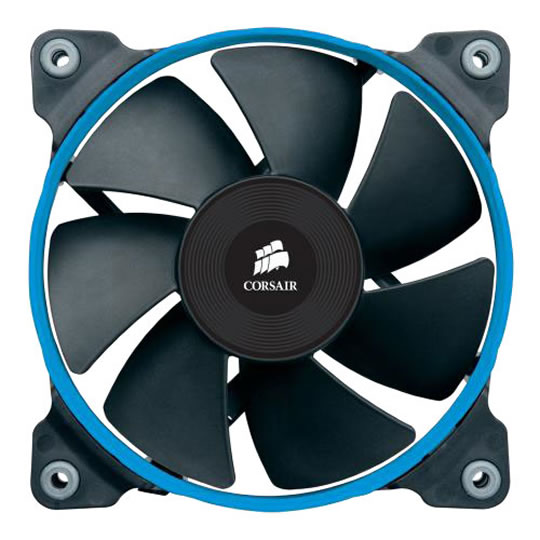

Product Overview The wide body, low-pitch blades of the SP120 fans combined with the custom housing provides outstanding static pressure and airflow through heatsinks or radiators. With rubberized corners, a quiet and reliable Advanced Hydraulic Bearing, and an included step-down resistor for even quieter operation, the SP120 truly is the strong, silent type.

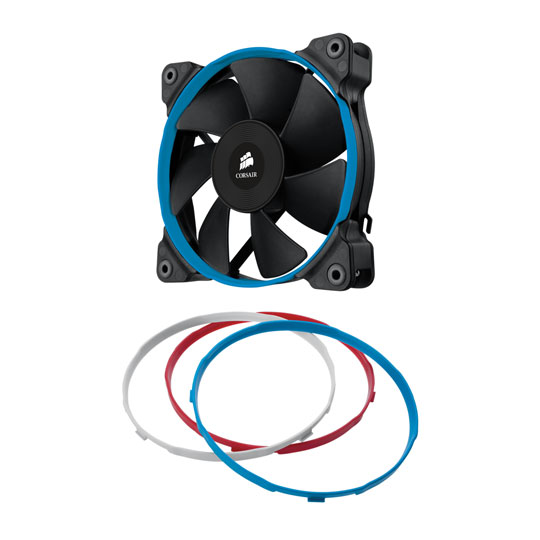

Included in the box are the three user-replaceable colored rings, in red, blue, and white, so you can customize your fan to match your case’s components. Each fan also features blacked-out wires and connectors, so your build looks elegant and clean when done. Available in single and twin packs.

Box Contents
SP120 Quiet Edition Airflow Fan

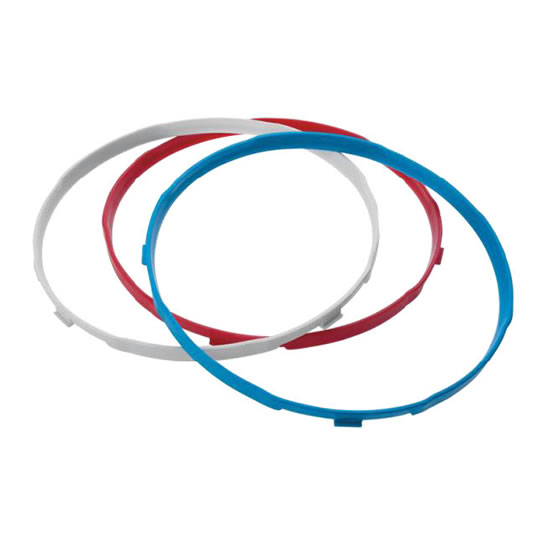

Three colored rings in red, blue, and white.
Mounting Screws
Voltage step-down adapter for lower speed operation
Features • The SP120 Quiet Edition, at full RPM, is an extremely quiet 23dBA while maintaining an impressive 1.29mm/H2O static pressure level.
• Seven wide body, low-pitch custom blades for optimal static pressure at very low noise levels.
• Custom fan enclosure for ducting air in the right direction with minimal interference.
• Advanced Hydraulic Bearing for reliable, quiet operation.
• Rubberized corners for sound damping when installed with standard screws.
• User-replaceable colored rings so you can match your fans to your case
• Included voltage step-down adapter for even quieter operation
