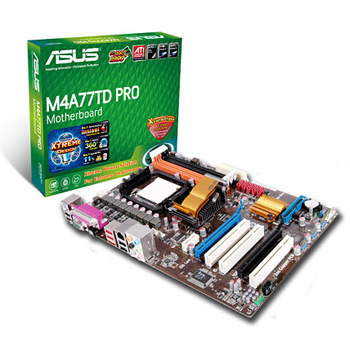

Asus M4A77TD Pro, AMD 770, AM3, PCI-E 2.0(x16), DDR3 1800(OC), SATA 3GB/s, SATA RAID, ATX

Scan code

Manufacturer code

LN28334

M4A77TD Pro

Pre Order Item
Item currently awaiting an ETA.

£58.57 Ex VAT

£68.82 Inc VAT

Protect against installation damage for 28 days. Click here for details

Views

Asus M4A77TD Pro, AMD 770, AM3, PCI-E 2.0(x16), DDR3 1800(OC), SATA 3GB/s, SATA RAID, ATX

Bookmark & Share

Product Information

Features / Benefits

Product Overview

Special Features

Technical Spec

Related Products

Manufacturer Info

This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.

View/Sort Products by	Change page layout
New Products Popularity Manufacturer	List View Gallery View

Support

Warranty

Tek Spek

Knowledge Base

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Return to base

DOA Period: 28 days

RTB Period: 24 months

Manufacturer Contact Details

Manufacturer: Scan

Telephone: 0871 472 4747

More Options

Find Similar Products

Recommend This Product

Find similar products with the same specifications as above. Please choose from list below

Please click the find similar products button and your search results will appear below.

Scan Computers recommends genuine Microsoft® Windows software.

Contact Information

Address: 25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE - UK

Tel: 0871-472-4747
Fax: 0871-472-4787

Email: Please click here

Service & Support

Deliveries & Returns

Secure Payments

We accept payment by VISA, MasterCard, VISA Electron, PayPal, American Express, Maestro, Solo, Switch and VISA Debit

VeriSign Secured

Verified By VISA

MasterCard SecureCode

RoHS Policy

You have added this product to your basket:

NEW HOT SELLER

Get 28 day installation damage insurance with Scansure

£ Ex VAT
£ Inc VAT

Quantity: Click to update quantity

Manufacturer:	Asus	SLI:
Form Factor:	ATX	Hybrid SLI:
CPU Socket:	AM3	Hybrid Crossfire:
QPI Speed:	N/A	Crossfire:
FSB/HT Speed:	5200 MHz	Water Cooled:
Chipset:	AMD 770	Intel i7 Compatible:
Memory Type:	DDR3	HDCP:
Memory Channel:	Dual	Expansion Slots:	3 x PCI (32 bit) 2 x PCI-E 2.0 x16 1 x PCI-E x1
Memory Type (ECC):	ECC/Non-ECC	SATA:	SATA 3Gb/s
Memory Type (R/U):	Unbuffered	RAID:	SATA RAID
Memory Speed (Mhz):	DDR3 - 1066 DDR3 - 1333 DDR3 - 1600(OC) DDR3 - 1800(OC)	SCSI:
Memory Capacity:	16GB	MODT:
On Board Graphics:		Back Panel:	1 x 10/100/1000 (LAN) 1 x eSATA 3Gb/s 1 x Line In 4 x Line Out 1 x Mic In 1 x Parallel (LPT) 1 x PS/2 Keyboard/Mouse Combo 1 x Serial (COM) 1 x SPDIF Out (Optical) 6 x USB 2.0/1.1
Graphics Interface:	PCI-E 2.0 (x16)	Internal I/O:	1 x 24pin (V) 1 x 4pin (V) 1 x CD-In 1 x FP Audio Header 1 x IDE 5 x SATA 3Gb/s 1 x SPDIF-Out Header 1 x System panel connector 3 x USB2.0/1.1 Header

Stock	Description	Price Ex VAT	Price Inc VAT	Level
LN27738	HOT SELLER 4GB (2x2GB) Corsair TwinX XMS3, DDR3 PC3-10666 (1333) 240 Pin, Non-ECC Unbuffered, CAS 9-9-9-24£3.99 (Ex VAT) next day delivery Get 28 day installation damage insurance with Scansure	£82.10	£96.47
LN29473	850w Seasonic S12D-850 DC to DC Ultimate Gaming PSU with 88% Silver Eff', Super Silent, ATX/EPS 12V Get 28 day installation damage insurance with Scansure	£99.89	£117.37
LN29493	19" LG W1954TQ Black Widescreen LCD, 1440x900, 2 ms, 300 cd/m², 50,000:1 DCR Get 28 day installation damage insurance with Scansure	£99.30	£116.68
LN27699	2GB Corsair DDR3 PC3-10600 (1333) 240 Pin, Non-ECC Unbuffered, CAS 9-9-9-24£3.99 (Ex VAT) next day delivery Get 28 day installation damage insurance with Scansure	£37.10	£43.59
LN29168	AMD Athlon II X3 435, Triple Core, Rana, S AM3, 2.9GHz, 1.5MB Cache, HT 2000MHz, 95W, Retail Get 28 day installation damage insurance with Scansure	£54.78	£64.37
LN28227	AMD Phenom II X4 945, Deneb Core, Socket AM3, 3.0GHz, 8MB Total Cache, HT 2000MHz, 95W, Retail Get 28 day installation damage insurance with Scansure	£104.97	£123.34
LN27668	AMD Athlon II X2 250, Regor Core, S AM3, 3.0GHz, 512KB x 2 Cache, FSB/HT 2000MHz, 65W, Retail Get 28 day installation damage insurance with Scansure	£44.21	£51.95
LN27665	HOT SELLER AMD Phenom II X2 550 Black Edition, Callisto, S AM3, 3.1GHz, 7MB Total Cache HT 4000MHz, 85W, Retail Get 28 day installation damage insurance with Scansure	£59.14	£69.49
LN27236	HOT SELLER AMD Phenom II X4 955 BlackEdition, Sok AM3, 3.2GHz, 8MB Total Cache, 125W, Retail Get 28 day installation damage insurance with Scansure	£103.69	£121.84
LN28615	HOT SELLER AMD Athlon II X4 620, Quad Core, S AM3, 2.6GHz, 2MB Cache, HT 4000MHz, 95W, Retail Get 28 day installation damage insurance with Scansure	£63.98	£75.18

	Form Factor:	ATX
	CPU Socket:	AM3
	QPI Speed:	N/A
	FSB/HT Speed:	5200 MHz
	Chipset:	AMD 770
	Memory Type:	DDR3
	Memory Channel:	Dual
	Memory Type (ECC):	ECC/Non-ECC
	Memory Type (R/U):	Unbuffered
	Memory Speed (Mhz):	DDR3 - 1066 DDR3 - 1333 DDR3 - 1600(OC) DDR3 - 1800(OC)
	Memory Capacity:	16GB
	On Board Graphics:
	Graphics Interface:	PCI-E 2.0 (x16)
	SLI:
	Hybrid SLI:
	Hybrid Crossfire:
	Crossfire:
	Water Cooled:
	Intel i7 Compatible:
	HDCP:
	Expansion Slots:	3 x PCI (32 bit) 2 x PCI-E 2.0 x16 1 x PCI-E x1
	SATA:	SATA 3Gb/s
	RAID:	SATA RAID
	SCSI:
	MODT:
	Back Panel:	1 x 10/100/1000 (LAN) 1 x eSATA 3Gb/s 1 x Line In 4 x Line Out 1 x Mic In 1 x Parallel (LPT) 1 x PS/2 Keyboard/Mouse Combo 1 x Serial (COM) 1 x SPDIF Out (Optical) 6 x USB 2.0/1.1
	Internal I/O:	1 x 24pin (V) 1 x 4pin (V) 1 x CD-In 1 x FP Audio Header 1 x IDE 5 x SATA 3Gb/s 1 x SPDIF-Out Header 1 x System panel connector 3 x USB2.0/1.1 Header
