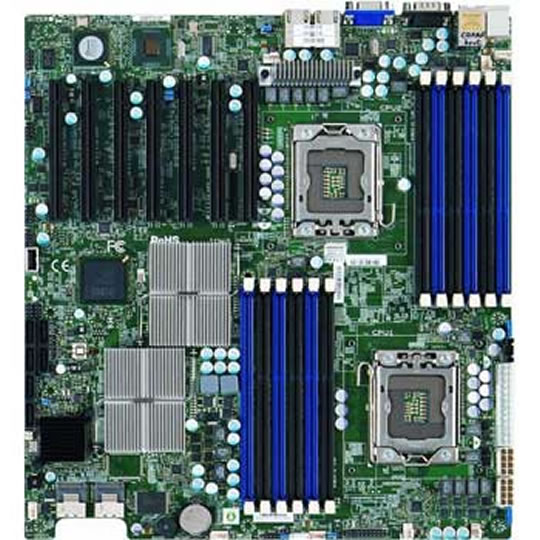

Supermicro X8DTH-6F Intel 5520 Dual 1366 Motherboard
Scan code: LN27003
Manufacturer code: X8DTH-6F
End Of Life
Supermicro X8DTH-6F Intel 5520 Dual 1366 Motherboard
Supermicro X8DTH-6F, Intel 5520, Dual 1366, PCI-E 2.0x16, DDR3 1333 ECC-R, SAS/SATA II / RAID, E-ATX
Scan code:
LN27003
Manufacturer code:
X8DTH-6F
This product is no longer available to purchase.
Email me when the availability or price changes
Product Overview
Supermicro motherboards based on the Intel 5520 chipset support Intel's Xeon® 5500 series processors in the LGA 1366 socket. With features that include support for 36 PCI-E 2.0 lanes, up to 144 GB DDR3 memory, and optional integrated IPMI 2.0 support, these boards deliver the highest performance.
Features 1. Dual Intel® 5500 series Xeon® Quad/Dual-Core, with QPI up to 6.4 GT/s
2. Dual Intel® 5520 (Tylersburg) Chipsets
3. Up to 96GB DDR3 1333/ 1066/ 800MHz ECC Registered DIMM
4. Intel® 82576 Dual-Port Gigabit Ethernet Controller
5. LSI 2008 8-Port SASII Controller;
RAID 0, 1, 10; RAID 5 optional
6. 6x SATA2 (3 Gbps) Ports via ICH10R Controller
7. 7 (x8) PCI-E 2.0 ( in x16 slot)
8. Integrated Matrox G200eW Graphics
9. Integrated IPMI 2.0 with Dedicated LAN
