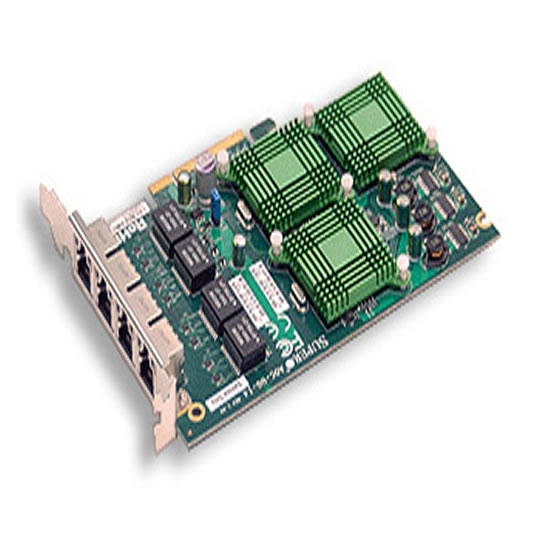

Supermicro AOC-UG-i4 Universal I/O 4-port Gigabit Ethernet LAN card

Product Overview AOC-UG-i4 is a high performance 4-port Supermicro Universal I/O (UIO) Gigabit Ethernet LAN card based on Intel's 82571 chips. It interfaces with Supermicro UIO motherboard through a PCI Express UIO slot to maximize the I/O bandwidth of the multiple ports Gigabit Ethernet connectivity. The dedicated input/output connections of the PCI-e ensure priority performance on each port without bus-sharing. The AOC-UG-i4 improves performance especially in multi-processor systems by balancing network loads across multiple CPU and processing cores. Features • Dual Intel 82571 dual-port LAN chips
• PCI-e x8 interface through PLX PCI-e 8518
• Full-height half-length PCI-e x8 UIO card that is optimized for Super Micro's UIO motherboards and servers
• Four ports that maximize connectivity in small spaces through RJ45 connectors
• Dual LAN chips that ensure priority performance on each port without bus sharing
• Intel's I/OAT accelerates I/O with higher throughput and lower CPU utilization
• Virtualization provides the platform with port density required for virtualized environments
• Support Pre-boot Execution Environment (PXE) on Super Micro's UIO motherboards and servers
• Wake-On-LAN (WOL) support (Port A only)
• RoHS 6/6
• Intel PROSet Utility for Windows supported network teaming
• OS supported: Windows 2000/XP/2003, RedHat and SuSE Linux, Netware, FreeBSD

Compatible UIO Motherboards
• X7DBU
• X7DBN
• X7DAL-E
• X7DAL-E+
• PDSMU
• H8SMU
• H8DMU+

Compatible Servers
• 6015B-UR
• 6015B-NTR
• 6015B-NT
• 6015B-U
• 5015M-NT
• 5015M-UR
• 5015M-Ni
