Lian-Li PC-60FNB Black Mid Tower Computer Case
Scan code: LN30175
Manufacturer code: PC-60FNB
End Of Life
Lian-Li PC-60FNB Black Mid Tower Computer Case
Lian Li PC-60FNB, Black, Aluminum Mid Tower Case, w/o PSU
Scan code:
LN30175
Manufacturer code:
PC-60FNB
This product is no longer available to purchase.
Email me when the availability or price changes
- 3XS Approved Custom picked by our award winning 3XS Systems team.
Product Overview
The new PC-60FN is a mid-tower case, which is ideal for the latest graphics cards in combination with the best thermal dynamics. It is easily adjustable to optimize your hardware setup, especially in the advent of adding in new graphics cards. Equipped with 8 PCI slots, it can hold three or more graphics cards, supporting CrossfireX™ and 3-way SLI™.
The PC-60FN carries Lian Li’s high standards of Quality requirement. All the sharp edges have been removed for the user’s safety. In addition, the external and internal surfaces have hair-line brush anodized aluminum in keeping with Lian Li’s classical style.
The cutting edge tool-less design is an important key feature in 2009 Lian Li cases. Lian Li designers considered end user requirements, like those who need to build systems faster, or swap out components often. The brand new tool-less modules can make Lian Li users’ life much more convenient.

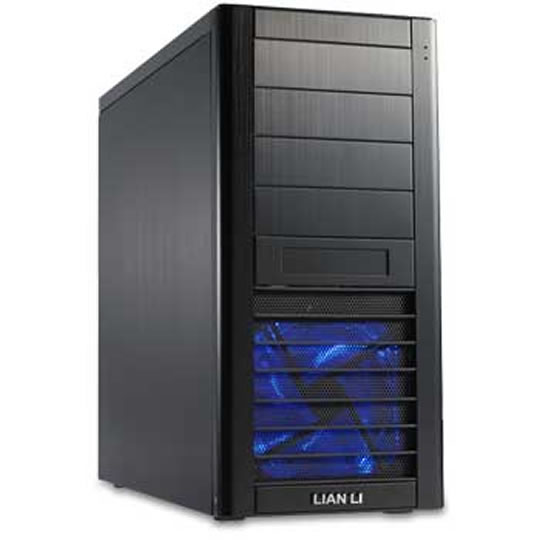

Maximum Video Card Size - 430mm Features The look of PC-60FN has a no door panel design; users can access the external drives easier. Attractive anodized aluminum gives a flamboyant finishing touch to this outstanding high-end chassis.

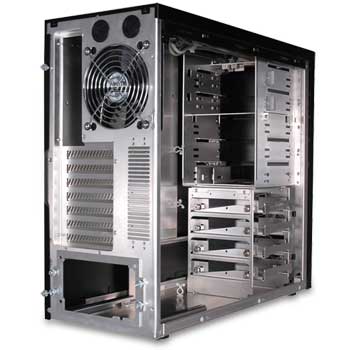

The new internal layout has the motherboard on top of the power supply unit, which allows for easier access to the motherboard as well as more room above, thus larger CPU coolers can be used. The power supply unit at the bottom of the case is cooled with fresh cool air directly from the outside of the case, instead of pre-heated air from within. This will bring down the core temperatures and extend the lifespan of the PSU significantly.
The PC-60FN is equipped with large cooling fans, with low RPM, which still provide enough air flow to cool down the hardware adequately. The front 140mm intake blue LED fan runs at 1000RPM and the rear 120mm fan extracts the hot air out at 1200RPM.
Lian Li designers spent months to upgrade Lian Li’s Patented HDD cage; the new HDD cage uses special Thumb Screws with rubber suspension. No tools are required, simply secure the anti-vibration rubber ring to the HDD, and slide the HDD into the cage. There is then a gate to secure the HDDs
The new 5.25” bay tool-less mounting incorporates a mounting bar equipped with rubber padding. After closing the mounting bar, the rubber pad pushes and holds the 5.25” device in position to both secure and absorb vibrations from the device.
The Power Supply has rubber pads for both insulation and support. They also secure the PSU without scratching the painted surface.
The power supply unit is at the bottom of the case. It can draw in cold air directly through the vent below the power supply unit. This cooler, fresh air will keep your PSU components more cool and stable and thus extend the PSU lifecycle.
PC-60FN supports liquid cooling systems, the two holes at the rear of the case allow water tubes to pass through, and the rubber cover can protect the tubes away from cutting.
The installation of the hard disk is very easy, and tool-less. Place the hard disk into the aluminum cage, and close the clip to secure the hard disk.(2.5" HDD install feasible), Slide the hard disk within the cage into the special hard disk rack with the rubber suspension grommet.
User can easily rotate the tool-less hard disk cage to 90 degree for your space management.
The front intake fans have equipped air filters, to stop dust entering the chassis. These air filter are washable, and thus envirnoment friendly
The PC-60FN carries Lian Li’s high standards of Quality requirement. All the sharp edges have been removed for the user’s safety. In addition, the external and internal surfaces have hair-line brush anodized aluminum in keeping with Lian Li’s classical style.
The cutting edge tool-less design is an important key feature in 2009 Lian Li cases. Lian Li designers considered end user requirements, like those who need to build systems faster, or swap out components often. The brand new tool-less modules can make Lian Li users’ life much more convenient.
Maximum Video Card Size - 430mm Features The look of PC-60FN has a no door panel design; users can access the external drives easier. Attractive anodized aluminum gives a flamboyant finishing touch to this outstanding high-end chassis.
The new internal layout has the motherboard on top of the power supply unit, which allows for easier access to the motherboard as well as more room above, thus larger CPU coolers can be used. The power supply unit at the bottom of the case is cooled with fresh cool air directly from the outside of the case, instead of pre-heated air from within. This will bring down the core temperatures and extend the lifespan of the PSU significantly.
The PC-60FN is equipped with large cooling fans, with low RPM, which still provide enough air flow to cool down the hardware adequately. The front 140mm intake blue LED fan runs at 1000RPM and the rear 120mm fan extracts the hot air out at 1200RPM.
Lian Li designers spent months to upgrade Lian Li’s Patented HDD cage; the new HDD cage uses special Thumb Screws with rubber suspension. No tools are required, simply secure the anti-vibration rubber ring to the HDD, and slide the HDD into the cage. There is then a gate to secure the HDDs
The new 5.25” bay tool-less mounting incorporates a mounting bar equipped with rubber padding. After closing the mounting bar, the rubber pad pushes and holds the 5.25” device in position to both secure and absorb vibrations from the device.
The Power Supply has rubber pads for both insulation and support. They also secure the PSU without scratching the painted surface.
The power supply unit is at the bottom of the case. It can draw in cold air directly through the vent below the power supply unit. This cooler, fresh air will keep your PSU components more cool and stable and thus extend the PSU lifecycle.
PC-60FN supports liquid cooling systems, the two holes at the rear of the case allow water tubes to pass through, and the rubber cover can protect the tubes away from cutting.
The installation of the hard disk is very easy, and tool-less. Place the hard disk into the aluminum cage, and close the clip to secure the hard disk.(2.5" HDD install feasible), Slide the hard disk within the cage into the special hard disk rack with the rubber suspension grommet.
User can easily rotate the tool-less hard disk cage to 90 degree for your space management.
The front intake fans have equipped air filters, to stop dust entering the chassis. These air filter are washable, and thus envirnoment friendly
