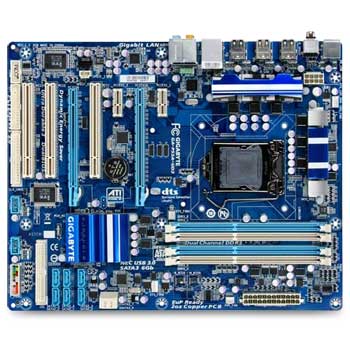

Gigabyte GA-P55A-UD3, Intel P55 Express, S1156, PCI-E 2.0, DDR3 2200, SATA 6Gb/s, RAID, USB 3.0, ATX

Scan code

Manufacturer code

LN29499

GA-P55A-UD3

Pre Order Item
Item due today.

£92.55 Ex VAT

£108.75 Inc VAT

Protect against installation damage for 28 days. Click here for details

Views

Gigabyte GA-P55A-UD3, Intel P55 Express, S1156, PCI-E 2.0, DDR3 2200, SATA 6Gb/s, RAID, USB 3.0, ATX

Bookmark & Share

Product Information

Features / Benefits

Product Overview

Special Features

Technical Spec

Related Products

Manufacturer Info

GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking

USB 3.0 Support
The GIGABYTE P55A-series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0.

SATA 6 Gbps Support
Yet another onboard feature of GIGABYTE P55A motherboards are Marvell's new SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps).

3x USB Power Boost
GIGABYTE P55A-series motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices.

View/Sort Products by	Change page layout
New Products Popularity Manufacturer	List View Gallery View

Support

Warranty

Tek Spek

Knowledge Base

For further information regarding Scan's warranty procedure please click here

Details

Duration: 24 months

Type: Return to base

DOA Period: 28 days

RTB Period: 24 months

Manufacturer Contact Details

Manufacturer: Scan

More Options

Find Similar Products

Recommend This Product

Find similar products with the same specifications as above. Please choose from list below

Please click the find similar products button and your search results will appear below.

Scan Computers recommends genuine Microsoft® Windows software.

Contact Information

Address: 25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE - UK

Tel: 0871-472-4747
Fax: 0871-472-4787

Email: Please click here

Service & Support

Deliveries & Returns

Secure Payments

We accept payment by VISA, MasterCard, VISA Electron, PayPal, American Express, Maestro, Solo, Switch and VISA Debit

VeriSign Secured

Verified By VISA

MasterCard SecureCode

RoHS Policy

Manufacturer:	Gigabyte	SLI:
Form Factor:	ATX	Hybrid SLI:
CPU Socket:	1156	Hybrid Crossfire:
QPI Speed:	N/A	Crossfire:
FSB/HT Speed:	N/A	Water Cooled:
Chipset:	Intel P55 Express	Intel i7 Compatible:
Memory Type:	DDR3	HDCP:
Memory Channel:	Dual	Expansion Slots:	3 x PCI (32 bit) 1 x PCI-E 2.0 x16 2 x PCI-E x1 1 x PCI-E x16 (x4 bandwidth)
Memory Type (ECC):	Non-ECC	SATA:	SATA 6Gb/s
Memory Type (R/U):	Unbuffered	RAID:	SATA RAID
Memory Speed (Mhz):	DDR3 - 1066 DDR3 - 1333 DDR3 - 2200 DDR3 - 800	SCSI:
Memory Capacity:	16GB	MODT:
On Board Graphics:		Back Panel:	1 x 10/100/1000 (LAN) 1 x 7.1 Audio I/O 1 x PS/2 Keyboard/Mouse Combo 1 x SPDIF Out (Coaxial) 1 x SPDIF Out (Optical) 8 x USB 2.0/1.1 2 x USB 3.0
Graphics Interface:	PCI-E 2.0 (x16)	Internal I/O:	1 x 24pin (V) 1 x 8pin (V) 1 x CD-In 1 x Clear CMOS Jumper 4 x Fan Header (V) 1 x Floppy 1 x FP Audio Header 1 x IDE 4 x Memory Slots (DDR3) 1 x Parallel Header 6 x SATA 3Gb/s 2 x SATA 6Gb/s 1 x Serial (COM) Header 1 x SPDIF-In Header 1 x SPDIF-Out Header 1 x System panel connector 2 x USB2.0/1.1 Header

Stock	Description	Price Ex VAT	Price Inc VAT	Level
LN28596	HOT SELLER Intel Core i5 750, s1156, Lynnfield, Quad Core, 2.66GHz, DMI 2.5 GT/s, 8MB Cache, 95W, Retail Get 28 day installation damage insurance with Scansure	£129.75	£152.46
LN30142	Intel Core i5 670, S1156, Dual Core, 3.46GHz, 4MB Cache, 73W, Integrated Graphics, Retail Get 28 day installation damage insurance with Scansure	£191.67	£225.21
LN31685	NEW Logitech Comfort Wave 450 Keyboard, Black, Multimedia, USB Get 28 day installation damage insurance with Scansure	£16.49	£19.38
LN28595	HOT SELLER Intel Core i7 860, s1156, Lynnfield, Quad Core, 2.80GHz, DMI 2.5 GT/s, 8MB Cache, 95W, Retail Get 28 day installation damage insurance with Scansure	£190.17	£223.45
LN28984	Thermalright MUX-120 i5 (Socket 1156) inc 4x6mm Heatpipe, 48 Alum Fins cooled via X-Silent 120mm Fan Get 28 day installation damage insurance with Scansure	£30.29	£35.59
LN30144	Intel Core i5 660, S1156, Dual Core, 3.33GHz, 4MB Cache, 73W, Integrated Graphics @ 733MHz, Retail Get 28 day installation damage insurance with Scansure	£134.60	£158.16
LN29361	550W Be Quiet Straight Power E7 BN116, SLI, EPS 12V, 24 Pin Get 28 day installation damage insurance with Scansure	£66.50	£78.14
LN28660	4GB(2x2GB) Corsair Dominator GT DDR3 PC3-12800(1600), 240 Pin, NonECC Unbuff, CAS 7-7-7-20, XMP +Fan Get 28 day installation damage insurance with Scansure	£123.12	£144.67
LN27736	HOT SELLER 4GB (2x2GB) Corsair Dominator DDR3, PC3-12800 (1600), 240 Pin, Non-ECC Unbuffered, CAS 9, DHX£3.99 (Ex VAT) next day delivery Get 28 day installation damage insurance with Scansure	£92.12	£108.24
LN29480	1GB Gigabyte GT 220 OC, 1600MHz GDDR3, GPU 720MHz, Shader 1566MHz, 48 Cores, D-Sub/ DL DVI-I/ HDMI Get 28 day installation damage insurance with Scansure	£48.79	£57.33

	Form Factor:	ATX
	CPU Socket:	1156
	QPI Speed:	N/A
	FSB/HT Speed:	N/A
	Chipset:	Intel P55 Express
	Memory Type:	DDR3
	Memory Channel:	Dual
	Memory Type (ECC):	Non-ECC
	Memory Type (R/U):	Unbuffered
	Memory Speed (Mhz):	DDR3 - 1066 DDR3 - 1333 DDR3 - 2200 DDR3 - 800
	Memory Capacity:	16GB
	On Board Graphics:
	Graphics Interface:	PCI-E 2.0 (x16)
	SLI:
	Hybrid SLI:
	Hybrid Crossfire:
	Crossfire:
	Water Cooled:
	Intel i7 Compatible:
	HDCP:
	Expansion Slots:	3 x PCI (32 bit) 1 x PCI-E 2.0 x16 2 x PCI-E x1 1 x PCI-E x16 (x4 bandwidth)
	SATA:	SATA 6Gb/s
	RAID:	SATA RAID
	SCSI:
	MODT:
	Back Panel:	1 x 10/100/1000 (LAN) 1 x 7.1 Audio I/O 1 x PS/2 Keyboard/Mouse Combo 1 x SPDIF Out (Coaxial) 1 x SPDIF Out (Optical) 8 x USB 2.0/1.1 2 x USB 3.0
	Internal I/O:	1 x 24pin (V) 1 x 8pin (V) 1 x CD-In 1 x Clear CMOS Jumper 4 x Fan Header (V) 1 x Floppy 1 x FP Audio Header 1 x IDE 4 x Memory Slots (DDR3) 1 x Parallel Header 6 x SATA 3Gb/s 2 x SATA 6Gb/s 1 x Serial (COM) Header 1 x SPDIF-In Header 1 x SPDIF-Out Header 1 x System panel connector 2 x USB2.0/1.1 Header

Gigabyte GA-P55A-UD3, Intel P55 Express, S1156, PCI-E 2.0, DDR3 2200, SATA 6Gb/s, RAID, USB 3.0, ATX

GA-P55A-UD3
