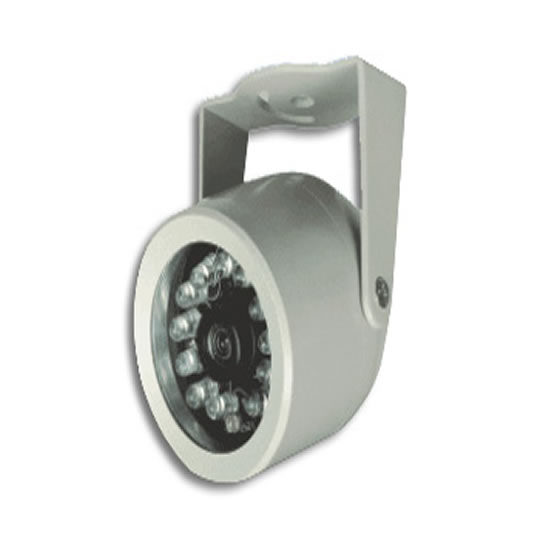

Domia Secure 1/4 CCD Camera (PAL) Day/Night with Infra Red LED
Scan code: LN19901
Manufacturer code: DS708CAM
End Of Life
Product Overview
Security, surveillance & home monitoring
A small and simple to install 1/4inch COLOR CCD Camera. Perfect for office or home interiors where aesthetics matter.
Features Specifications
• Model: RC-708
• Lens: board lens 3.6mm / F2.0 (optional) with bracket
• IR project distance: 15m (12 unit infrared LED)
• Image Pick-up Device: 1/4" COLOR CCD
• Horizontal Resolution: 420 TV Lines
• Number of Pixels: NTSC:510(H)×492(V); PAL:500(H)×582(V)
• Scanning System: NTSC:525 Lines,60 Field/sec, PAL:625 Lines 50 Field/sec
• Sync System: Internal Synchronization
• Gamma Characterlstic: 0.45
• S/N Ratio: =48dB(AGC Off)
• Electronic Shutter Time: On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; Off: NTSC 1/60 Sec, PAL 1/50 Sec
• Usable Illumination: 1 Lux(F:2.0),0 lux with built-in IR LED
• IR projecct distance: 10 meters(12 Unit Infrared LED)
• IR Status: Under 10 Lux by CDS
• IR Power On: CDS Auto Control
• Lens: Board Lens 3.6mm/F2.0(optional)
• Video Output: 1.0Vp-p 75 ohm
• Gain Control(AGC): Auto
• Cable: BNC JACK
• Water resistance: IP66
• Operation Temperature: -10?~+50? RH95% Max
• Storage Temperature: -20?~+60? RH95% Max
• Power Supply: DC12V±10% 400mA
• Dimension: 58(W) x 80(D) x 65(H)mm
• Weight: 250g
A small and simple to install 1/4inch COLOR CCD Camera. Perfect for office or home interiors where aesthetics matter.
Features Specifications
• Model: RC-708
• Lens: board lens 3.6mm / F2.0 (optional) with bracket
• IR project distance: 15m (12 unit infrared LED)
• Image Pick-up Device: 1/4" COLOR CCD
• Horizontal Resolution: 420 TV Lines
• Number of Pixels: NTSC:510(H)×492(V); PAL:500(H)×582(V)
• Scanning System: NTSC:525 Lines,60 Field/sec, PAL:625 Lines 50 Field/sec
• Sync System: Internal Synchronization
• Gamma Characterlstic: 0.45
• S/N Ratio: =48dB(AGC Off)
• Electronic Shutter Time: On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec; Off: NTSC 1/60 Sec, PAL 1/50 Sec
• Usable Illumination: 1 Lux(F:2.0),0 lux with built-in IR LED
• IR projecct distance: 10 meters(12 Unit Infrared LED)
• IR Status: Under 10 Lux by CDS
• IR Power On: CDS Auto Control
• Lens: Board Lens 3.6mm/F2.0(optional)
• Video Output: 1.0Vp-p 75 ohm
• Gain Control(AGC): Auto
• Cable: BNC JACK
• Water resistance: IP66
• Operation Temperature: -10?~+50? RH95% Max
• Storage Temperature: -20?~+60? RH95% Max
• Power Supply: DC12V±10% 400mA
• Dimension: 58(W) x 80(D) x 65(H)mm
• Weight: 250g
