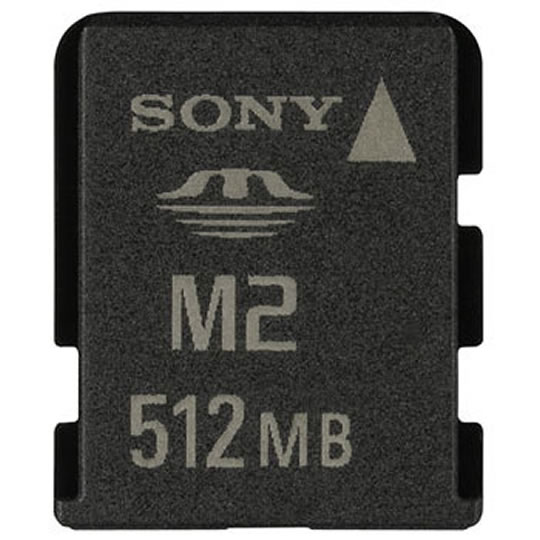

512MB Sony Original Micro Memory Stick
Scan code: LN16581
Manufacturer code:
End Of Life
Product Overview
"Memory Stick Micro" media is approximately one-quarter the size of "Memory Stick PRO Duo" media, yet only
about 1.2 mm thick. The media's edges are slotted lengthwise to allow for more slim-line designed connectors
to reduce space in host devices. As dual-voltage media, Memory Stick Micro supports devices operating at 3.3
volts and 1.8 volts.
Memory Stick Micro is designed as an externally removable media with a controlled eject function to prevent
users losing the media. Users will be able to insert Memory Stick Micro into an adapter for exchanging data to
a Memory Stick PRO compatible product. Features • Dimensions: 15x12.5x 1.2mm
• volume : 225mm3
• connectorpin: 11pin
• maximum capacity : 32GB(theoretical)*2
• max.data transfer rate : 160 Mbps(theoretical)*3
• operating voltage : 1.7- 1.95v and 2.7-3.6v
• interface : serial I/F and 4-bit parallel I/F
• operating temperature : -25~ +85 deg C
