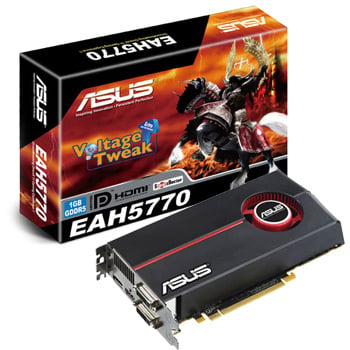

EAH5770/2DIS/1GD5 - 1GB Asus HD5770, PCI-E 2.0(x16), 4800MHz GDDR5, GPU 850MHz, 800 Cores, 2x DL DVI-I/HDMI

Scan code

Manufacturer code

LN29327

EAH5770/2DIS/1GD5

Pre Order Item
Item overdue since 30 January 2010.

£107.77 Ex VAT

£126.63 Inc VAT

Protect against installation damage for 28 days. Click here for details

Views

1GB Asus HD5770, PCI-E 2.0(x16), 4800MHz GDDR5, GPU 850MHz, 800 Cores, 2x DL DVI-I/HDMI

Bookmark & Share

Product Information

Features / Benefits

Product Overview

Special Features

Technical Spec

Related Products

Manufacturer Info

• Exclusive Voltage Tweak Technology to increase extra performance!

• Gigantic 1GB DDR5 for Incredible Gaming performance

• HDMI & DisplayPort output support

• PCI Express & PCI Express 2.0 support

• ASUS Splendid: Watching movies on PC is as good as on Top-of-the-line consumer television

• ASUS Gamer OSD: Real-time overclocking, benchmarking and video capturing in any PC game!

• ASUS Smart Doctor: Your intelligent hardware protection and overclocking tool

ATI Radeon™ HD 5770 GPU Feature Summary

* 1.04 billion 40nm transistors
* TeraScale 2 Unified Processing Architecture
o 800 Stream Processing Units
o 40 Texture Units
o 64 Z/Stencil ROP Units
o 16 Color ROP Units
* GDDR5 memory interface
* PCI Express 2.1 x16 bus interface
* DirectX® 11 support
o Shader Model 5.0
o DirectCompute 11
o Programmable hardware tessellation unit
o Accelerated multi-threading
o HDR texture compression
o Order-independent transparency
* OpenGL 3.2 support1
* Image quality enhancement technology
o Up to 24x multi-sample and super-sample anti-aliasing modes
o Adaptive anti-aliasing
o 16x angle independent anisotropic texture filtering
o 128-bit floating point HDR rendering
* ATI Eyefinity multi-display technology2,3
o Three independent display controllers
+ Drive three displays simultaneously with independent resolutions, refresh rates, color controls, and video overlays
o Display grouping
+ Combine multiple displays to behave like a single large display
* ATI Stream acceleration technology
o OpenCL 1.0 compliant
o DirectCompute 11
o Accelerated video encoding, transcoding, and upscaling4,5
+ Native support for common video encoding instructions
* ATI CrossFireX™ multi-GPU technology6
o Dual GPU scaling
* ATI Avivo HD Video & Display technology7
o UVD 2 dedicated video playback accelerator
o Advanced post-processing and scaling8
o Dynamic contrast enhancement and color correction
o Brighter whites processing (blue stretch)
o Independent video gamma control
o Dynamic video range control
o Support for H.264, VC-1, and MPEG-2
o Dual-stream 1080p playback support9,10
o DXVA 1.0 & 2.0 support
o Integrated dual-link DVI output with HDCP11
+ Max resolution: 2560x160012
o Integrated DisplayPort output
+ Max resolution: 2560x160012
o Integrated HDMI 1.3 output with Deep Color, xvYCC wide gamut support, and high bit-rate audio
+ Max resolution: 1920x120012
o Integrated VGA output
+ Max resolution: 2048x153612
o 3D stereoscopic display/glasses support13
o Integrated HD audio controller
+ Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required
+ Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats
* ATI PowerPlay™ power management technology7
o Dynamic power management with low power idle state
o Ultra-low power state support for multi-GPU configurations
* Certified drivers for Windows 7, Windows Vista, and Windows XP

View/Sort Products by	Change page layout
New Products Popularity Manufacturer	List View Gallery View

Support

Warranty

Tek Spek

Knowledge Base

For further information regarding Scan's warranty procedure please click here

Details

Duration: 36 months

Type: Return to base

DOA Period: 28 days

RTB Period: 36 months

Manufacturer Contact Details

Manufacturer: ASUS

More Options

Find Similar Products

Recommend This Product

Find similar products with the same specifications as above. Please choose from list below

Please click the find similar products button and your search results will appear below.

Scan Computers recommends genuine Microsoft® Windows software.

Contact Information

Address: 25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE - UK

Tel: 0871-472-4747
Fax: 0871-472-4787

Email: Please click here

Service & Support

Deliveries & Returns

Secure Payments

We accept payment by VISA, MasterCard, VISA Electron, PayPal, American Express, Maestro, Solo, Switch and VISA Debit

VeriSign Secured

Verified By VISA

MasterCard SecureCode

RoHS Policy

You have added this product to your basket:

NEW HOT SELLER

Get 28 day installation damage insurance with Scansure

£ Ex VAT
£ Inc VAT

Quantity: Click to update quantity

Manufacturer:	Asus	Cooling:	Fan
Chipset:	HD 5770	Interface:	PCI-E 2.0 (x16)
Edition:	N/A	Connectivity:	1 x DisplayPort 2 x Dual Link DVI-I 1 x HDMI
Chipset Features:	ATI CrossFireX™ multi-GPU technology ATI Eyefinity Technology ATI PowerPlay™ Microsoft DirectX® 11	SLI:
Core Clock:	850 MHz	SLI Type:	N/A
Shader Clock:		HDCP Ready:
Memory:	1GB	Width:	Dual Slot
Memory Bit Rate:	128 Bit	CrossFire Master:
Memory Type:	GDDR5	CrossFire Slave:
Manufacturing process:	40 nm	Crossfire Type:
Memory Clock:	4800 MHz	Low Profile:
Cores:	800	Package Type:	Retail

Stock	Description	Price Ex VAT	Price Inc VAT	Level
LN14032	Silverstone SST-SP03B Black Side Window Panel for TJ03B Case Get 28 day installation damage insurance with Scansure	£21.95	£25.79
LN29292	Akasa Freedom Xone, Black, Mid Tower Case w/o PSU Get 28 day installation damage insurance with Scansure	£39.47	£46.38
LN28632	HOT SELLER Arctic Cooling Freezer 7 Pro v2 - S1366/S1156/S775/AM3/AM2+/AM2/939 Up to 130 Watts! Get 28 day installation damage insurance with Scansure	£14.89	£17.50
LN32060	NEW AMD Phenom II X2 555 Black Edition, Callisto, Dual Core, S AM3, 3.2GHz, 7MB Total Cache, 80W, Retail Get 28 day installation damage insurance with Scansure	£67.59	£79.42
LN28596	HOT SELLER Intel Core i5 750, s1156, Lynnfield, Quad Core, 2.66GHz, DMI 2.5 GT/s, 8MB Cache, 95W, Retail Get 28 day installation damage insurance with Scansure	£129.75	£152.46
LN26911	320GB Western Digital WDMEA3200AE My Passport for MAC, 2.5" USB 2.0, Bus Powered Portable Hard Drive Get 28 day installation damage insurance with Scansure	£53.70	£63.10
LN28456	HOT SELLER 4GB (2x2GB) Corsair XMS3 DDR3, PC3-12800 (1600), 240 Pin, Non-ECC Unbuffered, CAS 9-9-9-24, XMP£3.99 (Ex VAT) next day delivery Get 28 day installation damage insurance with Scansure	£85.12	£100.02
LN27468	500W Silverstone Strider ST50F-230 v 1.0, PSU Silent, Modular, V 1.0, 80+ Eff' Get 28 day installation damage insurance with Scansure	£43.49	£51.10
LN27736	HOT SELLER 4GB (2x2GB) Corsair Dominator DDR3, PC3-12800 (1600), 240 Pin, Non-ECC Unbuffered, CAS 9, DHX£3.99 (Ex VAT) next day delivery Get 28 day installation damage insurance with Scansure	£92.12	£108.24
LN27738	HOT SELLER 4GB (2x2GB) Corsair TwinX XMS3, DDR3 PC3-10666 (1333) 240 Pin, Non-ECC Unbuffered, CAS 9-9-9-24£3.99 (Ex VAT) next day delivery Get 28 day installation damage insurance with Scansure	£82.10	£96.47

	Chipset:	HD 5770
	Edition:	N/A
	Chipset Features:	ATI CrossFireX™ multi-GPU technology ATI Eyefinity Technology ATI PowerPlay™ Microsoft DirectX® 11
	Core Clock:	850 MHz
	Shader Clock:
	Memory:	1GB
	Memory Bit Rate:	128 Bit
	Memory Type:	GDDR5
	Manufacturing process:	40 nm
	Memory Clock:	4800 MHz
	Cores:	800
	Cooling:	Fan
	Interface:	PCI-E 2.0 (x16)
	Connectivity:	1 x DisplayPort 2 x Dual Link DVI-I 1 x HDMI
	SLI:
	SLI Type:	N/A
	HDCP Ready:
	Width:	Dual Slot
	CrossFire Master:
	CrossFire Slave:
	Crossfire Type:
	Low Profile:
	Package Type:	Retail
