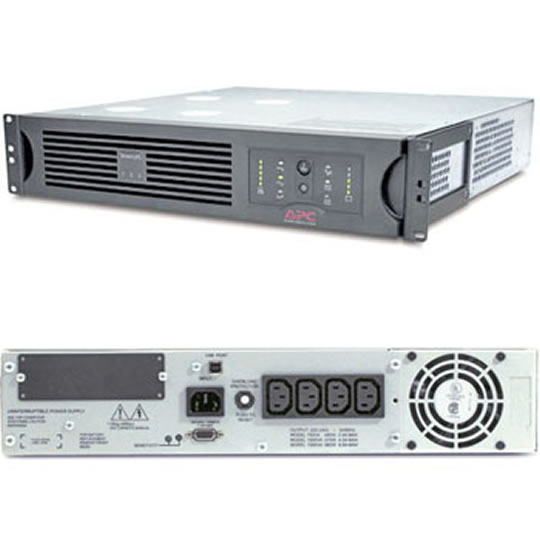

1500VA APC Smart-UPS 1500RMi 2U Rack Mount USB & Serial port 230v Including PowerCute software

Product Overview APC Smart-UPS® protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS® is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATM's. High real power output (watts), generous runtime, sine wave output, 16-segment LED visual display, and intelligent battery management make Smart-UPS the leading server class UPS. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance the performance of your UPS. Designed and manufactured by APC and fully backed with free 24x7 technical support, Smart-UPS remains the industry standard for all network UPSs. With over 10 million units installed worldwide and over 15 years of proven performance, Smart-UPS is a UPS businesses trust for their critical applications. Features Output

Output Power Capacity 980 Watts / 1500 VA
Max Configurable Power 980 Watts / 1500 VA
Nominal Output Voltage 230V
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Crest Factor up to 5 : 1
Waveform Type Sine wave
Output Connections (4) IEC 320 C13
(2) IEC Jumpers



Input

Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections IEC-320 C14

Input voltage range for main operations 160 - 286V
Input voltage adjustable range for mains operation 151 - 302V


Batteries & Runtime

Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3 hour(s)
Replacement battery cartridge CURK24, RBC24
RBC™ Quantity 1
Typical Backup Time
at Half Load 26.5 minutes (490 Watts)
Typical Backup Time
at Full Load 7.4 minutes (980 Watts)
Runtime Chart Smart-UPS


Communications & Management

Interface Port(s) DB-9 RS-232,SmartSlot,USB
Available SmartSlot™ Interface Quantity 1
Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional


Surge Protection and Filtering

Surge energy rating 480 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


Physical

Maximum Height 89.00 mm
Maximum Width 432.00 mm
Maximum depth 457.00 mm
Rack Height 2U
Net Weight 28.64 KG
Shipping Weight 31.91 KG
Shipping Height 254.00 mm
Shipping Width 594.00 mm
Shipping Depth 603.00 mm
Color Black
Units per Pallet 16.00


Environmental

Operating Environment 0 - 40 °C
Operating Relative Humidity 0 - 95%
Operating Elevation 0-3000 meters
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95%
Storage Elevation 0-15000 meters
Audible noise at 1 meter from surface of unit 46 dBA
Online Thermal Dissipation 171 BTU/hr


Conformance

Regulatory Approvals C-tick,CE,EN 50091-1,EN 50091-2,TUV,VDE

Standard Warranty 2 years repair or replace,optional on-site warranties available,optional extended warranties available
