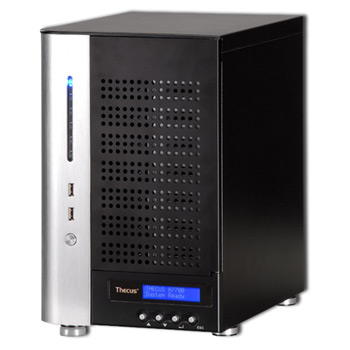

Thecus N7700 7-BAY Ultimate tower NAS, 7xSATA HDD, 1x eSATA, Gbit Lan, RAID 0, 1, 5,6,10,JBOD

Scan code

Manufacturer code

LN25010

N7700

In Stock

Delivered to you on Thursday 11^th February 2010

£519.97 Ex VAT

£610.96 Inc VAT

Views

Thecus N7700 7-BAY Ultimate tower NAS, 7xSATA HDD, 1x eSATA, Gbit Lan, RAID 0, 1, 5,6,10,JBOD

Bookmark & Share

Product Information

Features / Benefits

Product Overview

Special Features

Technical Spec

Related Products

Manufacturer Info

The New Thecus N7700 is the first 7bay NAS box using 7xSATA for internal, 1xeSATA for external connection using a massive 1GB of DDR2 system Memory giving Speed Without Compromise as its equiped with PCI-e interface is can can execute and run multiple applications at the same time, allowing it to handle a whole lot more than mere file storage.

Also supported is the Online RAID Expansion and RAID Level Migration system which means that users can add larger hard disks to available slots and join an existing RAID volume. The N7700 will automatically rebuild your RAID array and increase your storage capacity.

There is even extra backup protection with Version Control and Remote Replication With Nsync, users can have the N7700 automatically upload files to an external storage device at a designated time. The N7700 is also capable version control via a snapshot function with the ZFS file system, allowing users to efficiently create and restore remote backups. For users, the result is total data security and peace of mind.

Click Here for HDD Compatibilty List

The standard features include the normal -
x4 USB 2.0 Ports (Front x2, Back x2) (A Type)
RS232 port for UPS Support
Thermal sensor on HDD and processor temperature which controls the system FAN speed
Client OS support - Windows 2000/XP/2003/Vista, UNIX/Linux, Mac OS 9 / X
FTP Support
Download Manager - download files via HTTP / FTP / BT
Printer Server (IPP)
Data Backup
Power management
Volume management via Multiple RAID & Ext3 / ZFS
Multimedia Support (Options for module upload) - iTunes Server , Photo Web Server , Media server Supporting uPnP AV streaming protocol
User Authentication

Extra Features
Recycled bin - Supported
Web Server + MySQL - Supported
ISO Image Mounting- Supported
Advanced User modules - Supported
IP CAM surveillance Server - Supported to 20 IP CAM device

SATA device
7xSATA for internal, 1xeSATA for external

System Memory
1024MB DDR2-533/667 SDRAM

CPU
Intel® Celeron™ M 1.86GHz processor

LAN Interface (PCI-e)
RJ-45x2 : 10/100/1000 BASE-TX Auto MDI/MDI-X WOL supported

Expansion slot
a single PCI-e x1 (speed)

USB Interface
USB 2.0 host port x4(Front x2, Back x2) (A Type)

LCM Module
2*16

LED indicator
Power(Blue)
Status : System Busy/Fail(Blink Orange/ Blink Red)
HDD1-7 Activity/Fail(Orange/Red)
WAN (Link : Green; Activity : Orange)
LAN (Link : Green; Activity : Orange)
USB (Copy LED: Blue)
eSATA (Activity LED:Blue)

Power supply
300W Power Supply support 1TB HDDx7

Disk interface
SATA I/II x7 via backplane

Thermal/Fan control
Thermal sensor on HDD and processor temperature
Temperature controlled system FAN speed
DC voltage monitoring (3.3V, 5V and 12V)

Real-time clock
Battery backup system clock (Schedule on/off support)

Buttons
Power button(Front, power down controlled by S/W)
LCM button (ENT,ESC,UP, DOWN)

RS232
1 (For UPS)

Environment
Temperature : 5C to 40 C
Humidity : 0 ~ 80 % R.H. (Non-condensing)

Raid modes & Functions
RAID modes -RAID 0, 1, 5,6,10,JBOD
Auto-rebuild -Supported
Hot-swap - Supported
Hot spare - Supported
Global hot spare - Supported
SMART - Supported

Disk Power management
Spin down while idle time setup
also Supports roaming to other N7700

Network
Fixed IP Address, Dynamic IP Address,
IP sharing mode Can be enable/disabled
Transport Protocols TCP/IP/Appletalk
File Protocols SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Link Aggregation 802.3ad, load balance and fail over

Data Access
Client OS support - Windows 2000/XP/2003/Vista, UNIX/Linux, Mac OS 9 / X
WebDisk - Web-based file access
FTP - File transmission protocol
Download Manager - HTTP / FTP / BT

Printer Server (IPP)
Support USB printers
Support IPP various printers
Client can manage(List/Delete) the print job queue on WEB interface

Data Backup
Client schedule incremental data backup - FarStone Drive Clone PRO 5.0
Client system Disaster Recovery - FarStone Drive Clone PRO 5.0
NAS Remote Replication Via Thecus proprietary Nsync
USB device copy to N7700 Through LCM to control
Snapshot - Supported

File System
Journaling File System
Capacity 16TB
File Size Supported Support Files max : 2TB
Language Support - Unicode Support
Authorization (ACL) Read, Write or Deny options on individual users or groups for share and folder level
Recycled bin Supported
Web Server + MySQL Supported
ISO Mount Supported
User module Supported
IP CAM surveillance Server Supported to 20 IP CAM device
